Unpacking and Storage
3.1 Scope of Delivery
Check the scope of delivery for completeness according to the packing list. The following
items should be included.

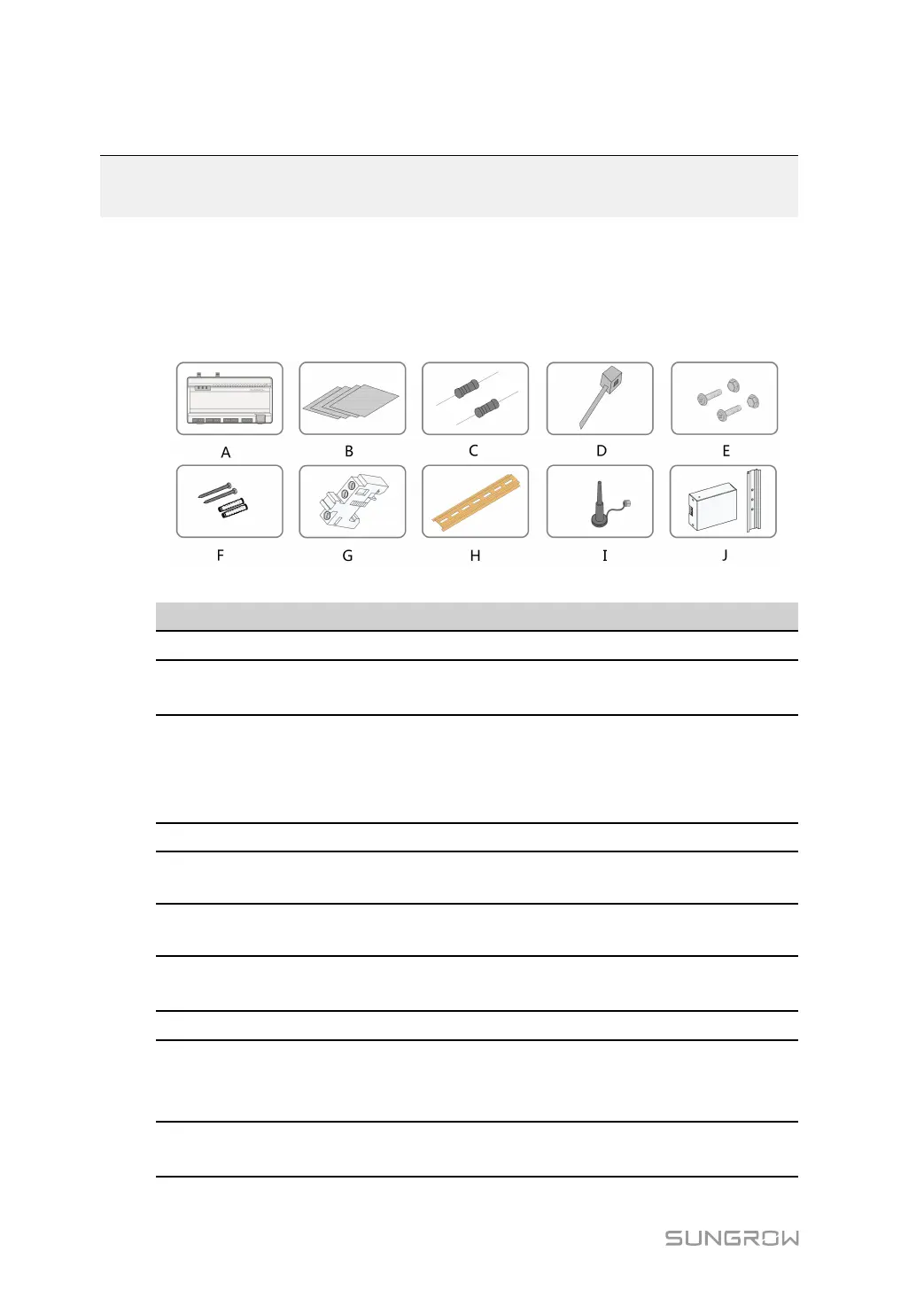

figure 3-1 Scope of delivery
Item
Designation Description
A
Logger1000 Logger1000
B Documents
Quick User Manual, quality certificate, packing list,
product test report, and warranty card
C
Communication termi-
nal resistor
6x120Ω (Note: if there are more than 15 devices
connected on the RS485 bus, it is recommended
to connect a 120Ω terminal resistor in parallel on
the A and B lines at the head or tail end of the bus)
D
Nylon cable tie Used to tie cables
E
Fastener assembly
4 sets, M4X16, used for wall-mounting to fasten
the device on the metal surface
F
Expansion bolt
4 sets, ST4.8X19, used for wall-mounting to fasten
the device on the concrete wall
G Terminal fastener
2 sets, E/UK-1201442, fixed on the guide rail to
prevent the Logger1000 from moving
H Guide rail
Length: 240mm
I
WLAN antenna
4G antenna
The Logger1000A is provided with the 4G antenna
mounting hole while Logger1000B is not. Specifi-
cally, refer to the actual product received.
J Power box
Converters the AC current into DC current Length
of supporting guide rail: 170mm
To Next Page
