18
Step 6 Check and ensure that the Logger1000 is firmly installed.
- - End
4.4 Installing Antenna
The sucker antenna base should be placed on a metal surface outside the container to avoid
impact on signal reception.
Antenna entry should be reserved on the container, and the entry hole size is 20mm.

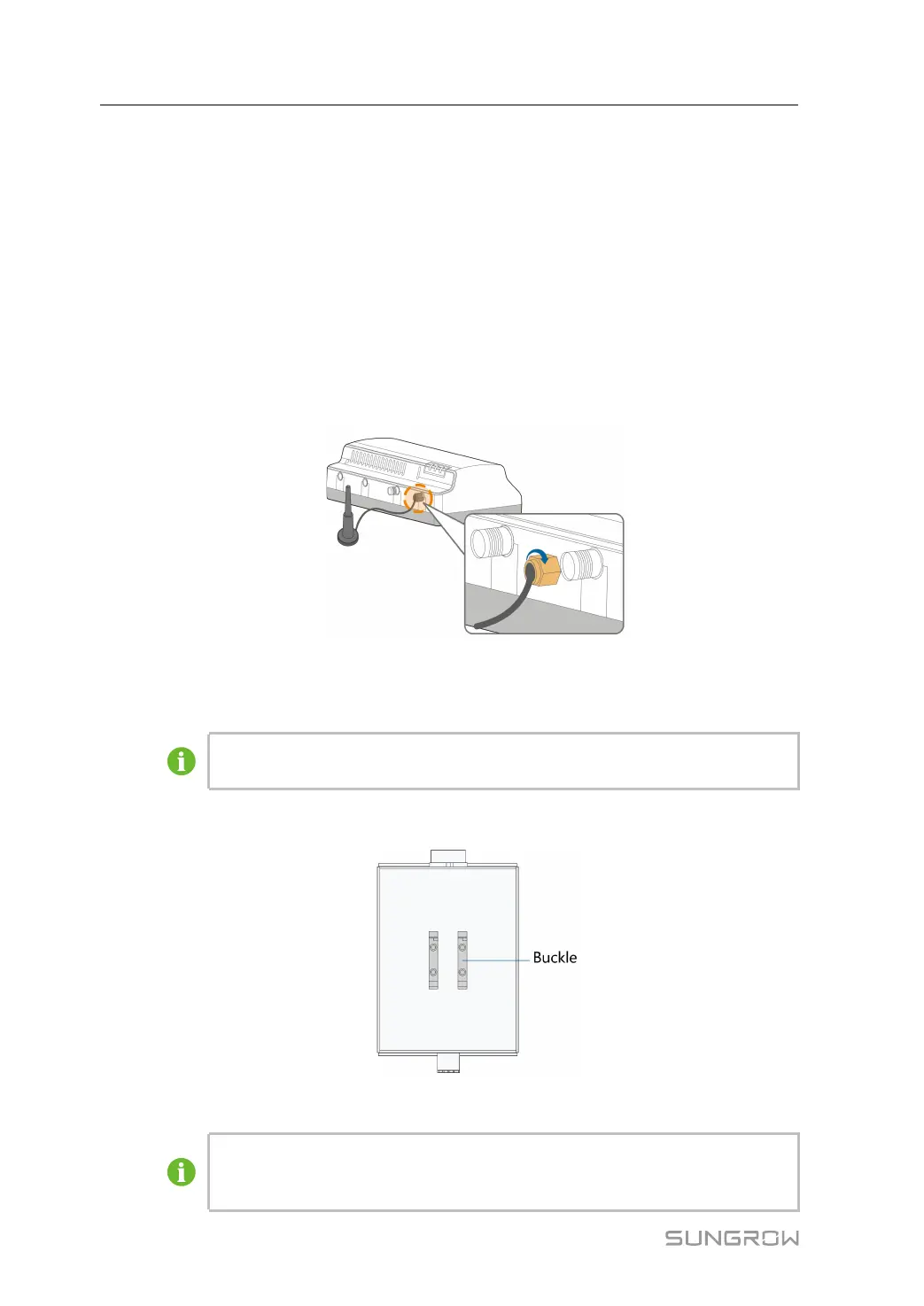

Secure the sucker antenna base onto the surface outside the container, lead one end (with
the nut) of the antenna through the drilled hole, and fix it onto the corresponding terminal of
the Logger1000 clockwise, as shown in the figure below.
4.5 Installing Power Box
Mount the power box onto the concrete wall or metal surface according to onsite
conditions.
Secure the power box via the buckles (as shown in the figure below) on the back of it.
Step 1 Install and secure the power box guide rail at the appropriate location.
The power box should be 200mm away from the Logger1000 to ensure that the
power cable from the power box can be connected to the power input port of the
Logger1000.
4 Mechanical Mounting User Manual
