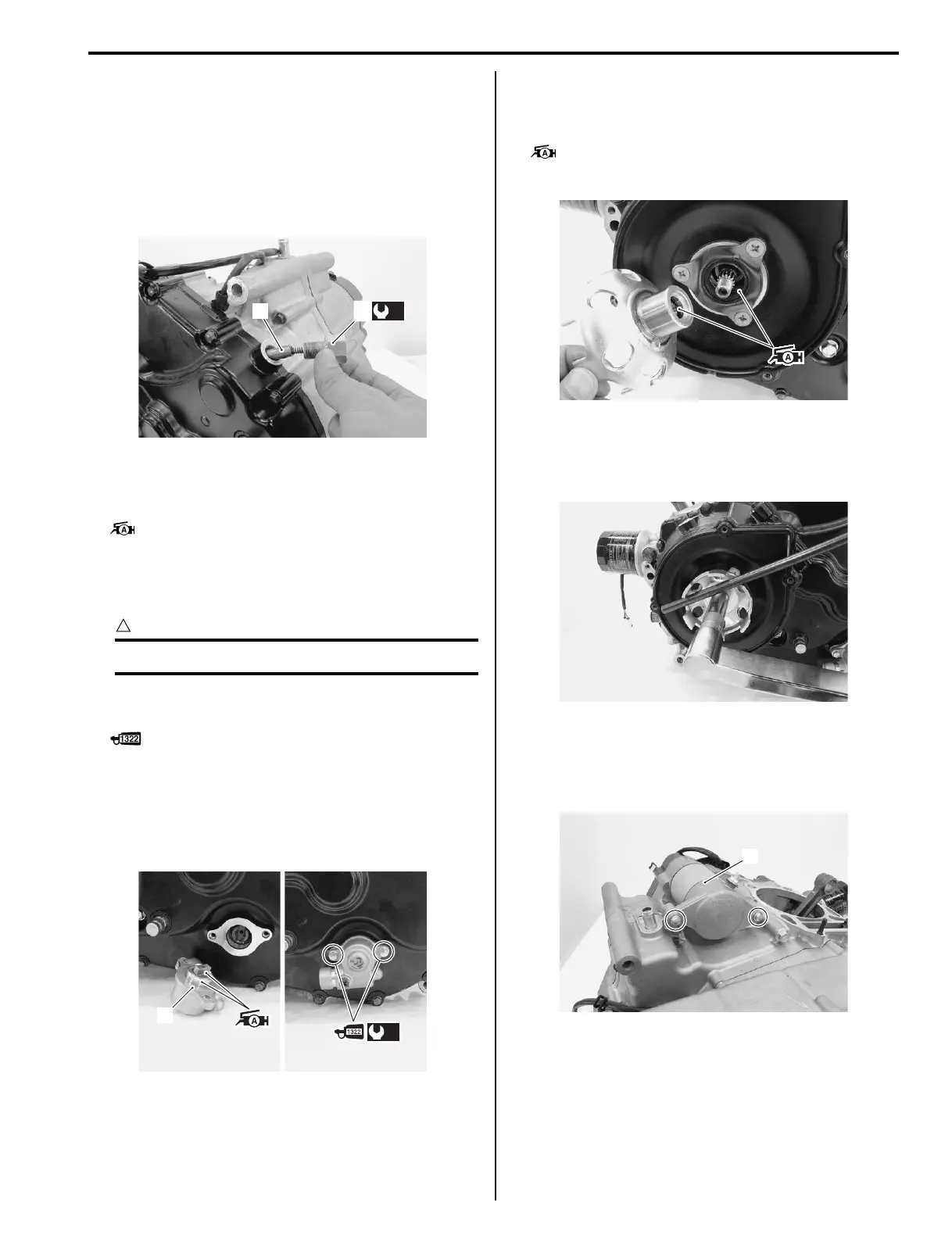

Engine Mechanical: 1D-57
Transfer Gearshift Cam Stopper
• Install the transfer gearshift cam stopper (1) and
spring into the bolt (2).
• Tighten the bolt (2) to the specified torque.
Tightening torque
Transfer gearshift cam stopper bolt (a): 22 N·m (
2.2 kgf-m, 16.0 lb-ft)
Speedometer Gearbox
• Apply grease to the sliding part of the gear.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
• Fit a new gasket (1) and install the speedometer
gearbox.
CAUTION
!
Use new gasket to prevent oil leakage.
• Apply thread lock to the bolts and tighten them to the
specified torque.
: Thread lock cement 99000–32110
(THREAD LOCK CEMENT SUPER 1322 or
equivalent)
Tightening torque
Speedometer gearbox bolt (a): 10 N·m (1.0 kgf-m,
7.0 lb-ft)
Stater Cup
• Apply grease to the to the O-ring and lip of the oil seal.
• Install the starter cup (1).
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
• Tighten the starter cup nut with a suitable bar.
Tightening torque
Starter cup nut: 38 N·m (3.8 kgf-m, 27.5 lb-ft)
Starter Motor
• Install the starter motor (1). Refer to “Starter Motor
Removal and Installation in Section 1I (Page 1I-3)”.
1
(a)
2
I827H1140219-01
1
(a)
I827H1140220-01
I827H1140221-01
I827H1140222-01
1
I827H1140223-01
To Next Page
