Transfer: 3C-2
Repair Instructions

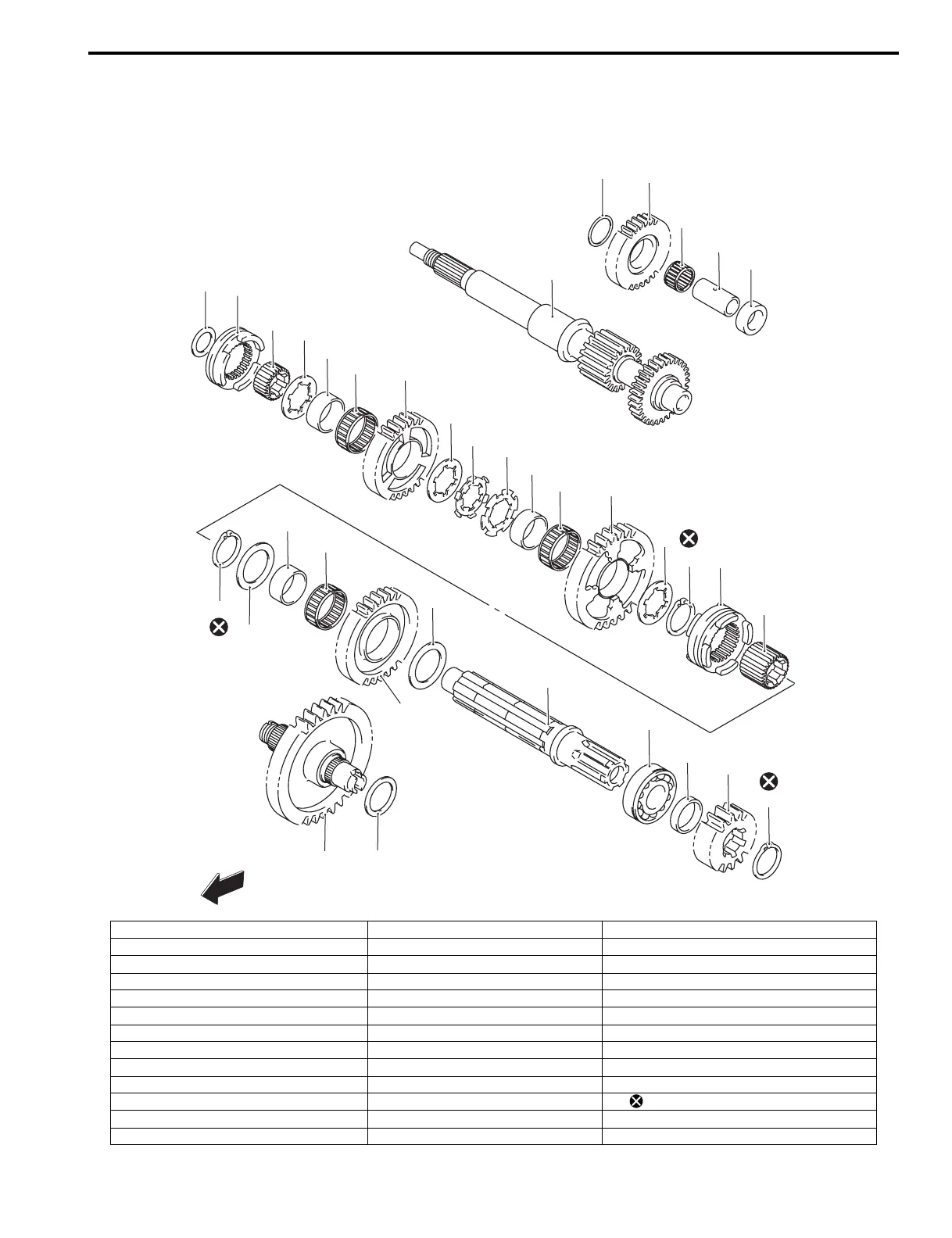

Transfer Components (LT-A400/F)
B827H13306001
1
2
3
4
5
6
7
8
9
10
11
20
12
13
14
15
16
17
18
19
23
22
21
34
33
32
31
30
29
27
26
25
24
35
36
28
FWD
I827H1330001-02
1. Washer 14. Washer 27. Bearing
2. Reverse idle gear 15. Lock washer 28. High driven gear
3. Bearing 16. Lock washer 29. Washer
4. Reverse idle gear shaft 17. Spacer 30. Transfer counter shaft
5. Spacer 18. Bearing 31. Bearing
6. Transfer input shaft 19. Low driven gear 32. Spacer
7. Washer 20. Washer 33. Transfer driven gear No.2
8. Reverse gear selecting dog 21. Snap ring 34. Snap ring
9. Reverse gear spacer 22. High/Low gear selecting dog 35. Transfer output shaft assembly
10. Washer 23. High/Low gear spacer 36. Washer
11. Spacer 24. Snap ring : Do not reuse.
12. Bearing 25. Washer
13. Reverse driven gear 26. Spacer
To Next Page
