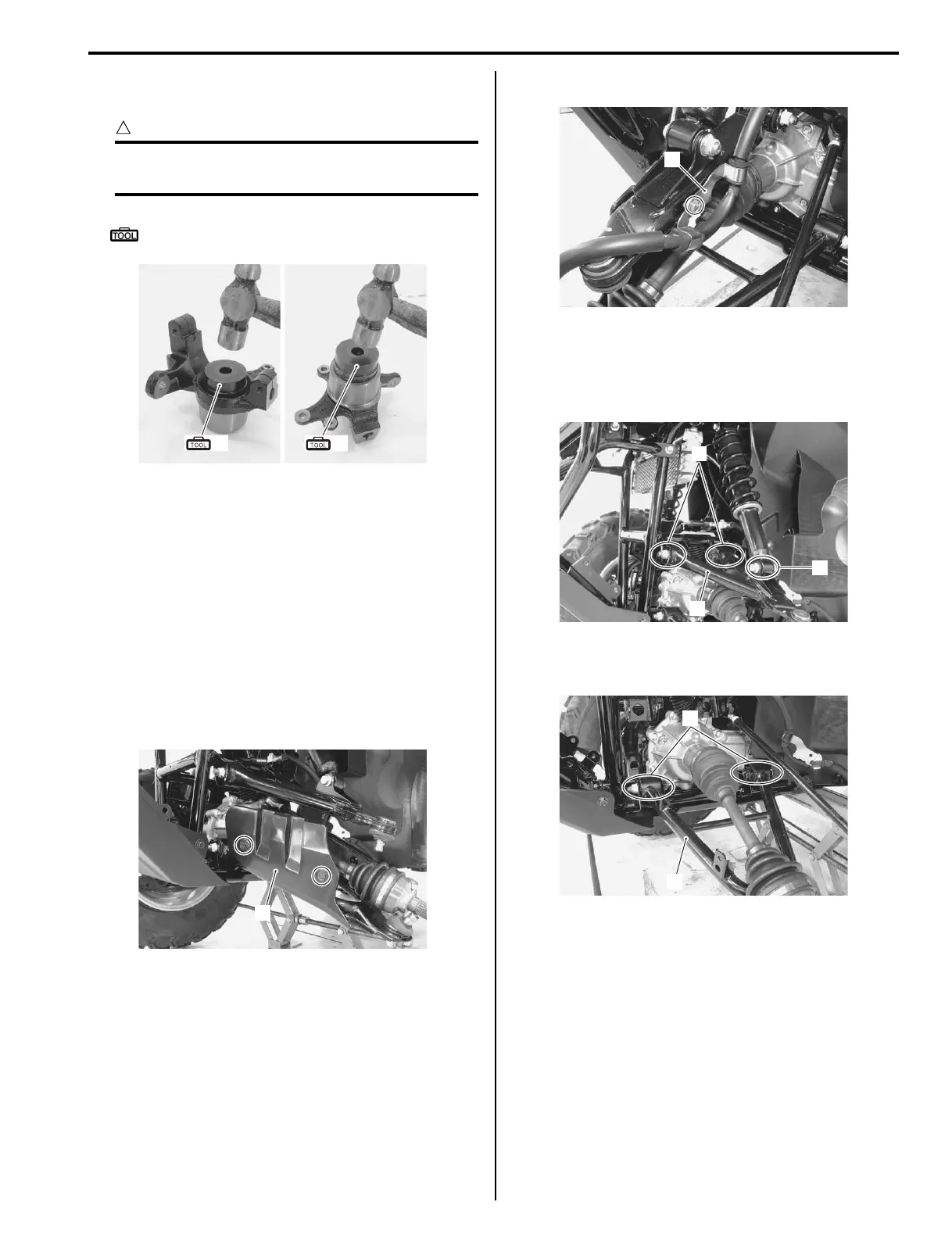

Front Suspension: 2B-8
• Install the steering knuckle dust seals using the
special tool.
CAUTION
!
Removed oil seal must be replaced with a
new one.
Special tool
(A): 09913–70210 (Bearing installer set)
Front Suspension Upper / Lower Arm Removal
and Installation
B827H12206010
Removal
1) Remove the front wheel. Refer to “Front / Rear
Wheel Removal and Installation in Section 2D
(Page 2D-3)”.
2) Remove the steering knuckle. Refer to “Front Wheel
Hub / Steering Knuckle Removal and Installation
(Page 2B-3)”.
3) Remove the front drive shaft cover (1). (LT-A400F,
LT-F400F)
4) Remove the brake hose clamp (2).
5) Remove the front shock absorber mounting bolt
(lower) (3).
6) Remove the suspension upper arm (4) by removing
the pivot bolts (5).
7) Remove the suspension lower arm (6) by removing
the pivot bolts (7).
(B)
(B)
I827H1220021-01
1
I827H1220022-01
2
I827H1220023-01
3
5
4
I827H1220024-01
7
6
I827H1220025-02
