Suzuki LT-A400 Service Manual

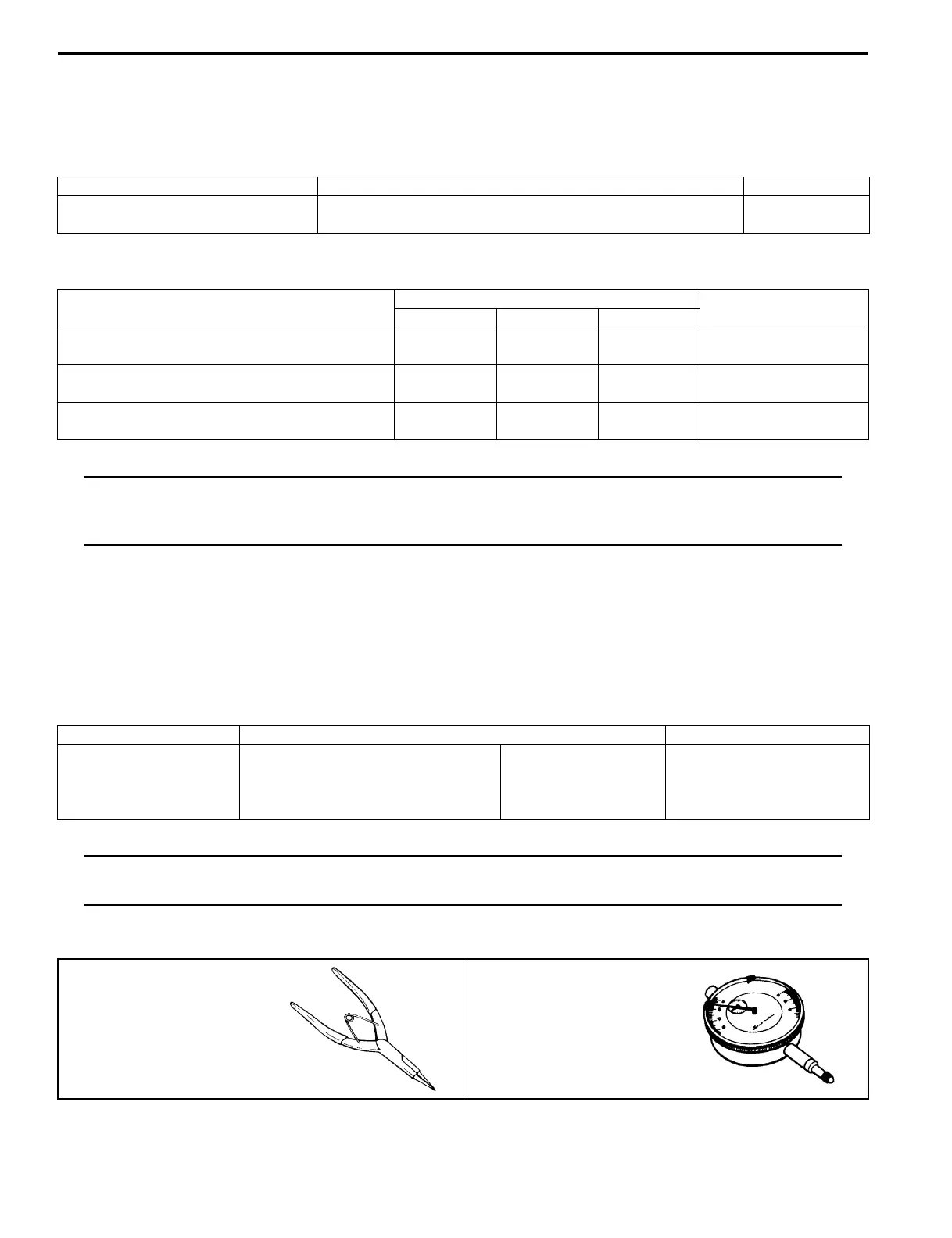

3D-22 Propeller Shafts:
Specifications
Service Data (LT-A400/F, LT-F400/F)
B827H13407001
Drive Train
Unit: mm (in)
Tightening Torque Specifications
B827H13407002
NOTE
The specified tightening torque is also described in the following.
“Front Output Shaft Components (Page 3D-1)”
“Driven and Drive Bevel Gear Shim Adjustment Information (Page 3D-20)”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque List (LT-A400/F) in
Section 0C (Page 0C-9)”.
Special Tools and Equipment
Recommended Service Material
B827H13408001
NOTE
Required service material is also described in the following.
“Front Output Shaft Components (Page 3D-1)”
Special Tool
B827H13408002
Item Standard Limit
Front/rear output shaft bevel gear
backlash
0.03 – 0.15 (0.001 – 0.006) —
Fastening part
Tightening torque
Note
N⋅mkgf-mlb-ft
Rear output shaft nut
100 10.0 72.5
)(Page 3D-6) /
)(Page 3D-9)
Driven bevel gear nut
100 10.0 72.5
)(Page 3D-7) /
)(Page 3D-10)
Drive bevel gear nut
100 10.0 72.5
)(Page 3D-14) /
)(Page 3D-16)
Material SUZUKI recommended product or Specification Note
Grease SUZUKI SUPER GREASE A or
equivalent
P/No.: 99000–25010 )(Page 3D-6) / )(Page 3D-
6) / )(Page 3D-9) /
)(Page 3D-9) / )(Page 3D-
11)
09900–06107 09900–20607
Snap ring pliers Dial gauge (1/100 mm, 10
mm)
)(Page 3D-10) )(Page 3D-17)
