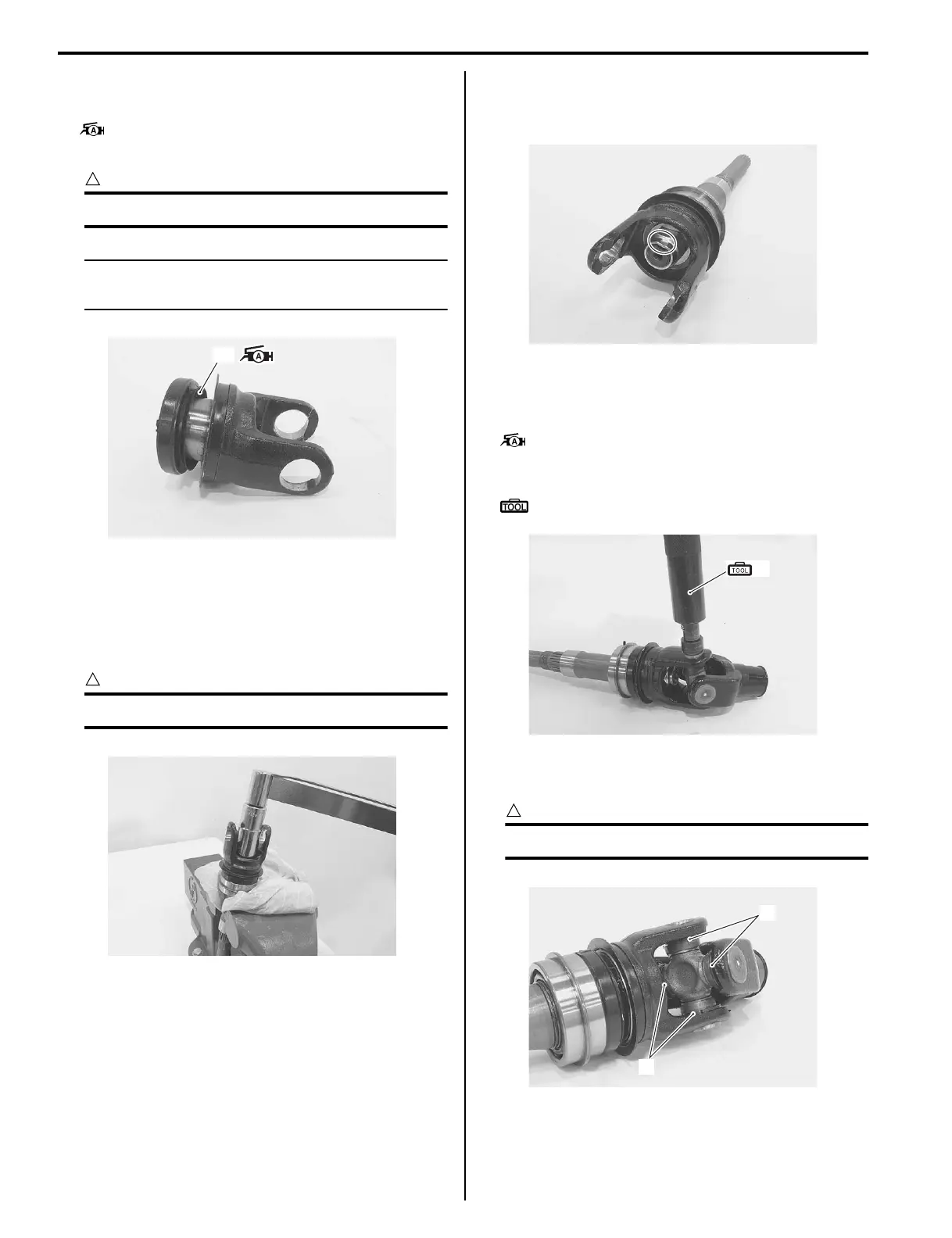

3D-6 Propeller Shafts:
• Apply grease to the lip “B” of the oil seal.
• Install the oil seal to the joint yoke.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
CAUTION
!
Replace the removed oil seal with a new one.
NOTE
The lip “B” of the oil seal should be
positioned joint yoke side.
• With the rear output shaft held immovable with a vise,
tighten new nut to the specified torque.
Tightening torque
Rear output shaft nut: 100 N·m (10.0 kgf-m, 72.5
lb-ft)
CAUTION
!
Replace the removed nut with a new one.
• After the backlash and tooth contact have been
checked or adjusted, stake the nut with a center
punch.
• Apply grease to the bearings and their dust seal lip.
• Install the universal joint and bearings with the special
tool.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
Special tool
(A): 09913–70210 (Bearing installer set)
• Install the C-rings (3) by tapping them with a copper
hammer.
CAUTION
!
Replace the removed C-rings with new ones.
“B”
I827H1340026-01
I827H1340028-01
I827H1340029-01
(A)
I827H1340030-01
3
3
I827H1340031-01
