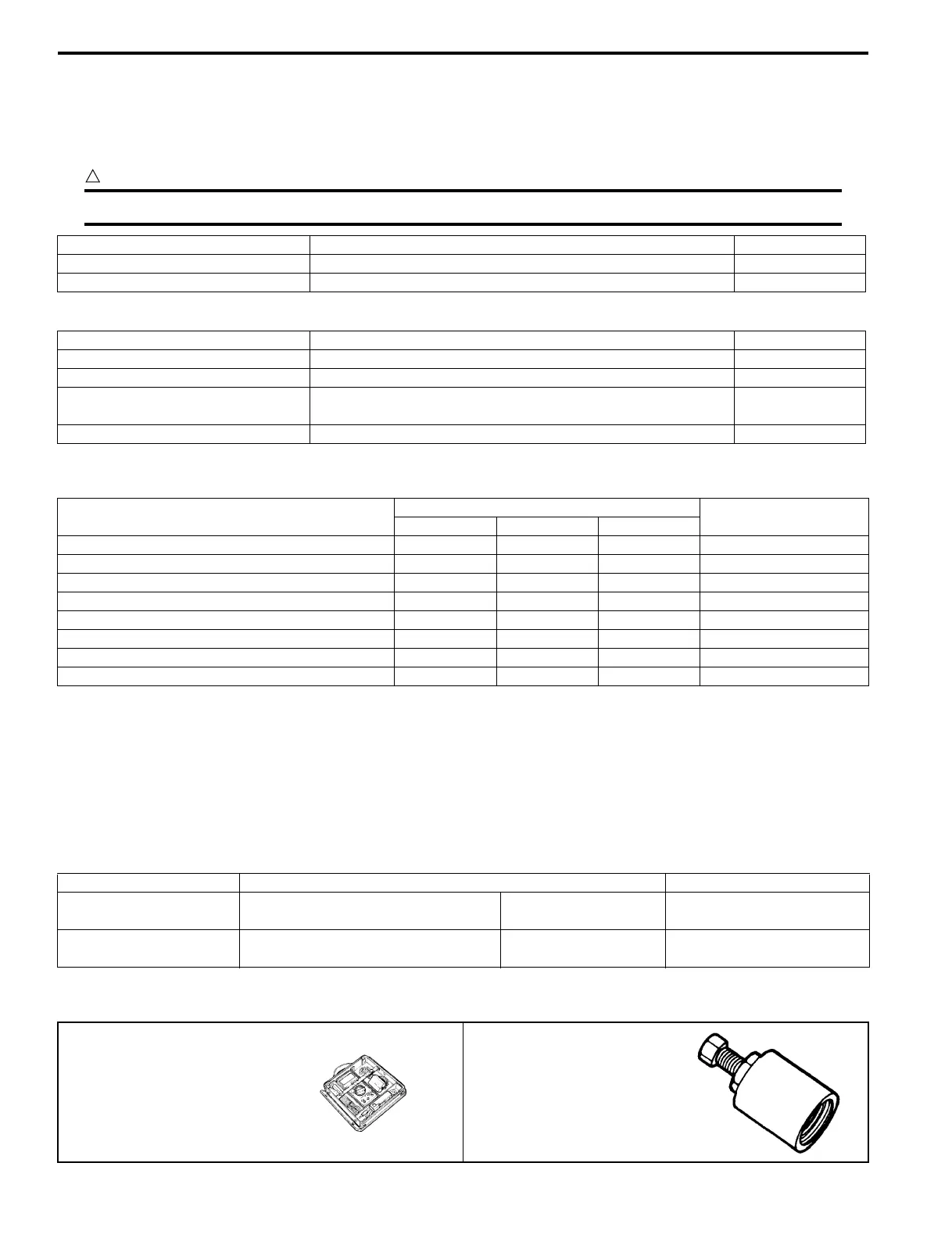

1J-14 Charging System:
Specifications
Service Data (LT-A400/F, LT-F400/F)
B827H11A07001
Battery
CAUTION
!
Never use anything except the specified battery.
Generator
Tightening Torque Specifications
B827H11A07002
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque List (LT-A400/F) in
Section 0C (Page 0C-9)”.
Special Tools and Equipment
Recommended Service Material
B827H11A08001
Special Tool
B827H11A08002
Item Specification Note
Type designation YTX14-BS
Capacity 12 V, 43.2 kC (12 Ah)/10 HR
Item Specification Note
Generator coil resistance 0.3 – 1.5 Ω
Generator maximum output Approx. 225 W at 5 000 r/min
Generator no-load voltage
(When engine is cold)
65 V (AC) and more at 5 000 r/min
Regulated voltage 13.5 – 15.5 V at 5 000 r/min
Fastening part
Tightening torque
Note
N⋅mkgf-mlb-ft
Generator stator set bolt 11 1.1 8.0 )(Page 1J-7)
CKP sensor mounting bolt 6 0.6 4.3 )(Page 1J-7)
Generator lead wire clamp bolt 6 0.6 4.3 )(Page 1J-7)
Generator rotor nut 140 14.0 101.0 )(Page 1J-7)
Transfer gearshift cam stopper bolt 22 2.2 16.0 )(Page 1J-8)
Speedometer gearbox bolt 10 1.0 7.0 )(Page 1J-8)
Starter cup nut 38 3.8 27.5 )(Page 1J-9)
Recoil starter mounting bolt 10 1.0 7.0 )(Page 1J-9)
Material SUZUKI recommended product or Specification Note
Grease SUZUKI SUPER GREASE A or
equivalent
P/No.: 99000–25010 )(Page 1J-8) / )(Page 1J-
9)
Thread lock cement THREAD LOCK CEMENT SUPER
1322 or equivalent
P/No.: 99000–32110 )(Page 1J-8) / )(Page 1J-
9)
09900–25008 09930–30721
Multi-circuit tester set Rotor remover
)(Page 1J-3) / )(Page 1J-
3) / )(Page 1J-4) /
)(Page 1J-4) / )(Page 1J-
10)
)(Page 1J-6)
