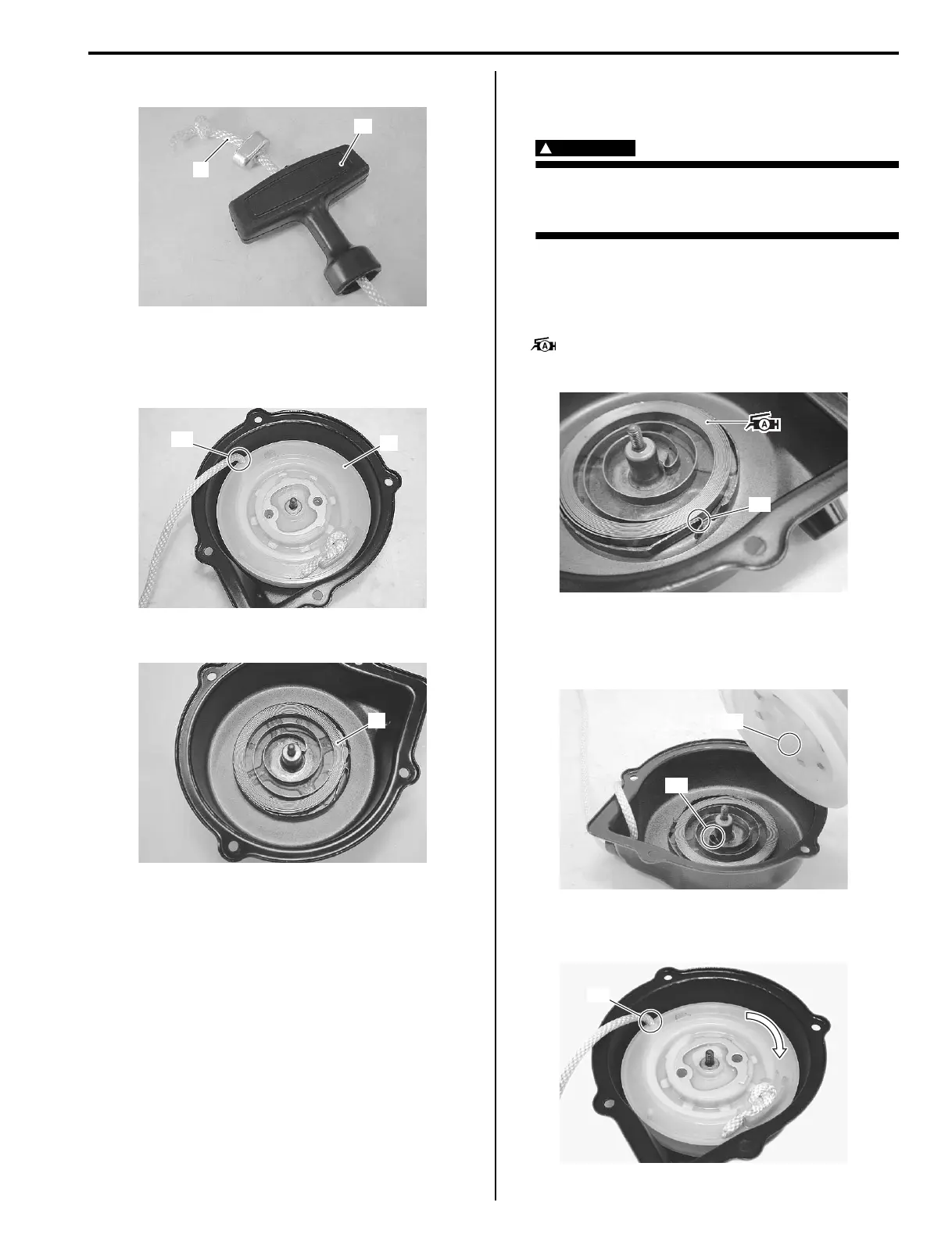

Starting System: 1I-14
4) Disengage the rope (9) from the handle (10).
5) Hook the rope to groove “A” of the reel (11).
6) Turn the rope on the reel (11) properly.
7) Remove the reel (11).
8) Remove the spiral spring (12).
Assembly
Assemble the recoil starter in the reverse order of
disassembly. Pay attention to the following points:
WARNING
!
Wear hand and eye protection when
installing the reel, since the spring may
quickly unwind and cause an injury.
• When installing the spiral spring, hook the spiral
spring end “A” with the recoil starter case as shown in
the figure.
• Apply grease to the spiral spring.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
• Turn the rope on the reel properly.
• After installing the spiral spring, engage the part “B” of
the reel with the spiral spring end “C”.
• Hook the rope onto the hook part “D” of the reel, turn
the reel clockwise five or six times with the rope.
10
9
I831G1190052-02
11
“A”
I831G1190053-02
12
I831G1190054-01
“A”
I831G1190055-01
“C”
“B”
I831G1190056-01
“D”
I831G1190057-01
