Drive Chain / Drive Train / Drive Shaft: 3A-8

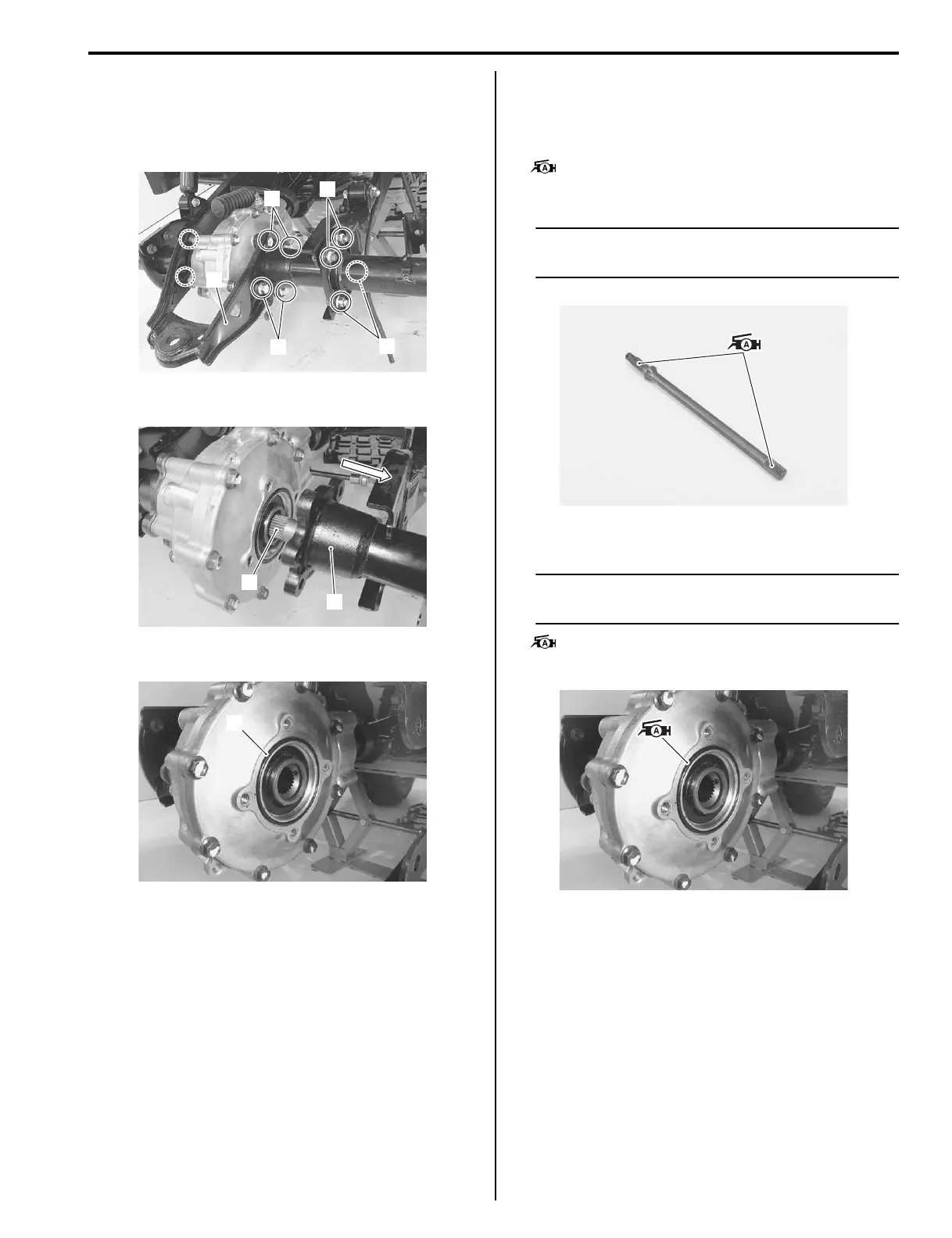

5) Remove the rear axle housing mounting bolts (2).
6) Remove the trailer towing (3).
7) Remove the rear axle housing mounting bolt and
nuts (4)
8) Remove the rear axle housing (5) and rear axle (6).
9) Remove the O-ring (7).
Installation
Install the rear axle/axle hosing in the reverse order of
removal. Pay attention to the following points:
• Apply grease to the rear axle shaft spline.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
NOTE
Overall length of RH axle shaft is shorter than
LH axle shaft.
• Install new O-ring to the rear drive gear case.
NOTE
Before installing the O-ring, apply grease to
it.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
2
2
4
4
3
I827H1310006-02
5
6
I827H1310007-02
7
I827H1310008-02
I827H1310012-01
I827H1310013-01
