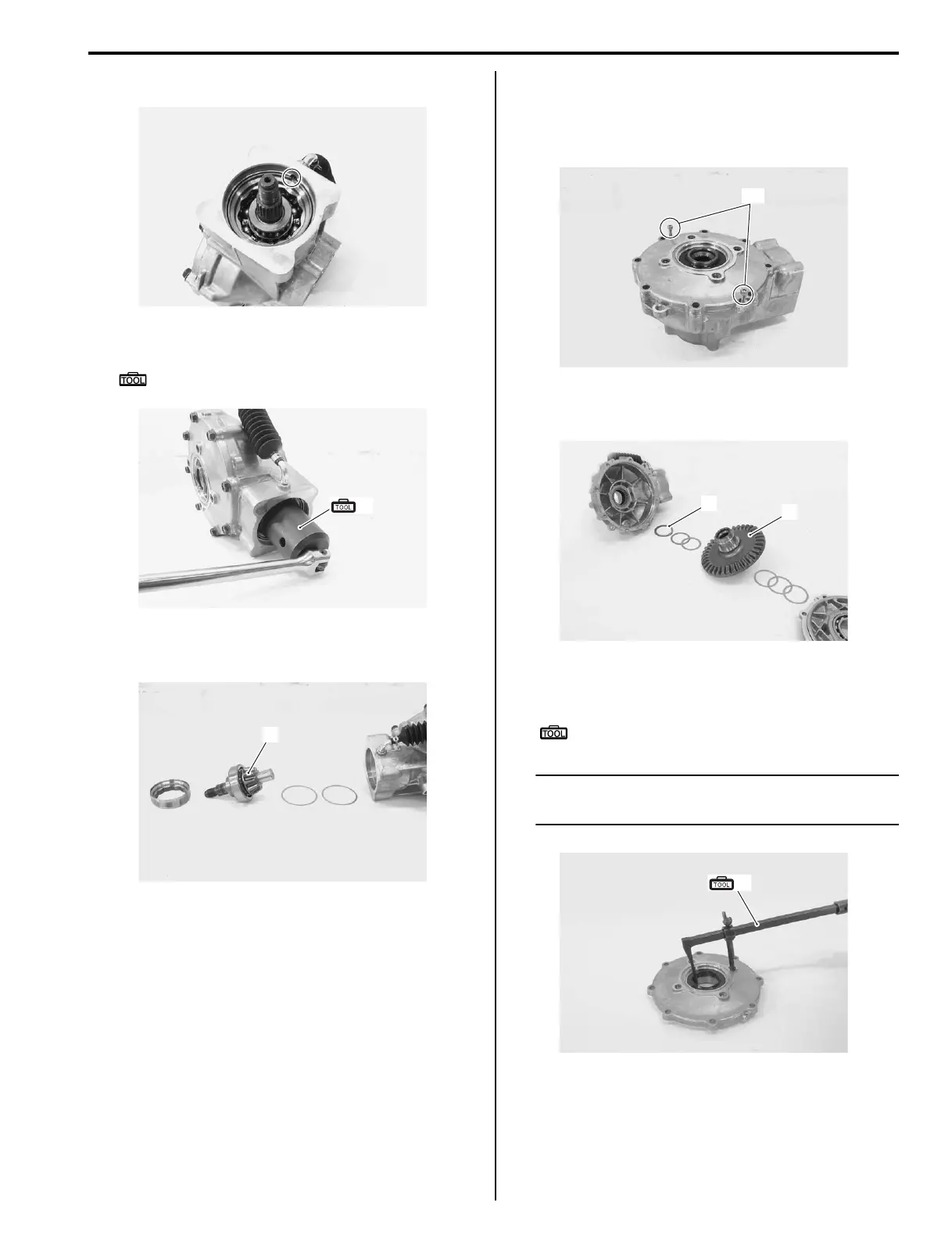

Differential: 3B-24
5) Unlock the bearing lock-nut.
6) Remove the bearing lock-nut with the special tool.
Special tool
(C): 09924–41830 (Bearing retainer wrench)
7) Remove the final drive gear assembly (3) and shims
out of the case.
8) Remove the final gear case cover bolts diagonally
and evenly.
9) Pry up the final gear case cover with 5 mm screws
“A”.
10) Remove the final driven gear (4) shims and washer
(5).
11) Remove the oil seal out of the final gear case cover
with the special tool.
Special tool
(B): 09913–50121 (Oil seal remover)
NOTE
If there is no abnormal condition, the oil seal
removal is not necessary.
I827H1320078-01
(C)
I827H1320079-01
3
I827H1320082-01
“A”
I827H1320080-02
4
5
I827H1320081-02
(B)
I827H1320083-01
To Next Page
