Transfer: 3C-10

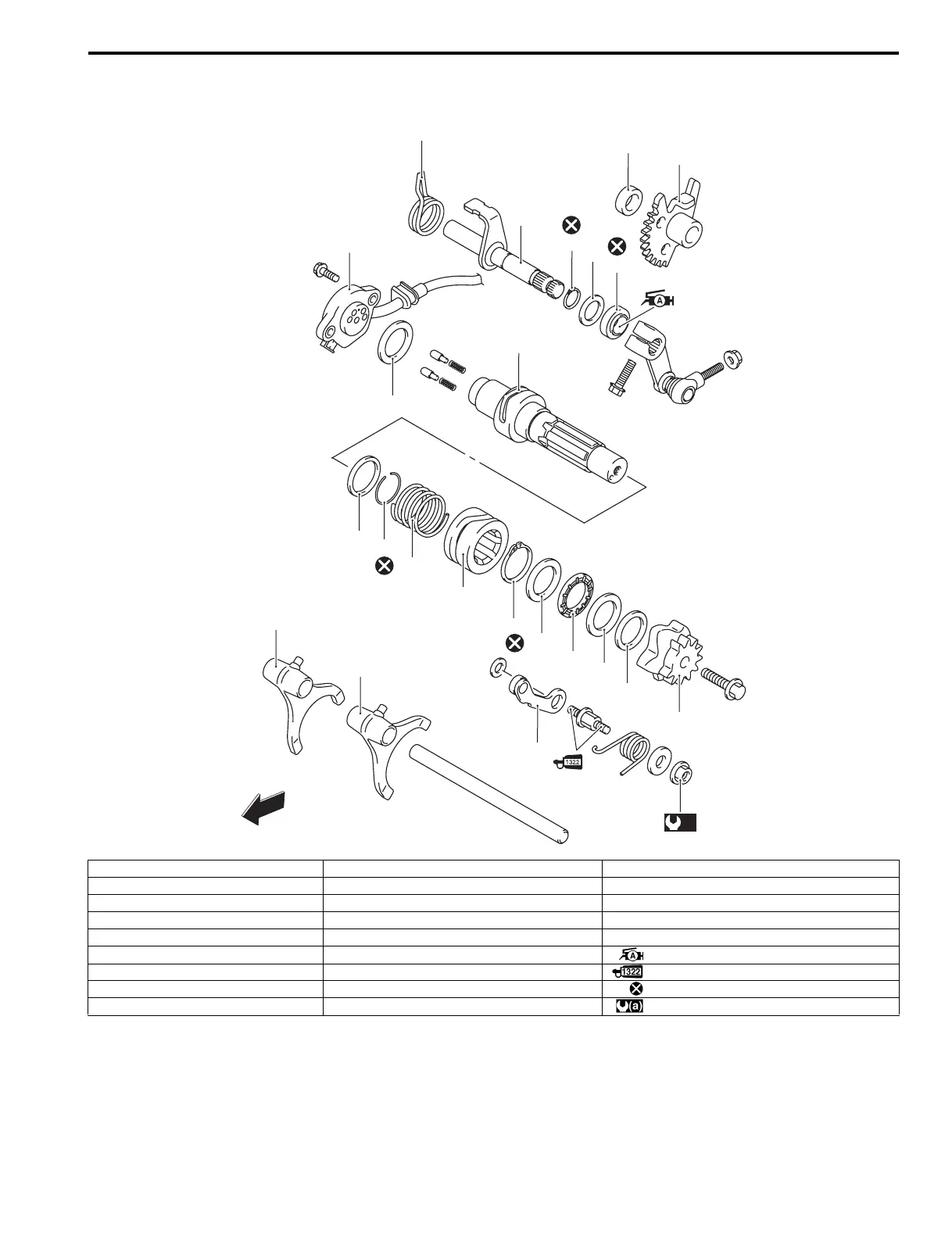

Transfer Gearshift Cam Components (LT-A400/F)
B827H13306005
1
3
5
6
7
8
9
11
10
20
22
12
13
14
15
16
17
18
19
4
2
23
21
(a)
FWD
I827H1330027-03
1. Spacer 10. Transfer gearshift shaft No. 1 19. Washer
2. Transfer shift gear 11. Washer 20. Gearshift cam plate
3. Return spring 12. Circlip 21. Gearshift cam stopper
4. Transfer gearshift shaft No. 2 13. Spring 22. Gearshift fork (For reverse drive gears)
5. Snap ring 14. Transfer gearshift cam (For high/low gears) 23. Gearshift fork (For high/low gears)
6. Washer 15. Snap ring : Apply grease.
7. Oil seal 16. Washer : Apply thread lock.
8. GP switch 17. Bearing : Do not reuse.
9. Washer 18. Washer : 10 Nâ‹…m (1.0 kgf-m, 7.0 lb-ft)
To Next Page
