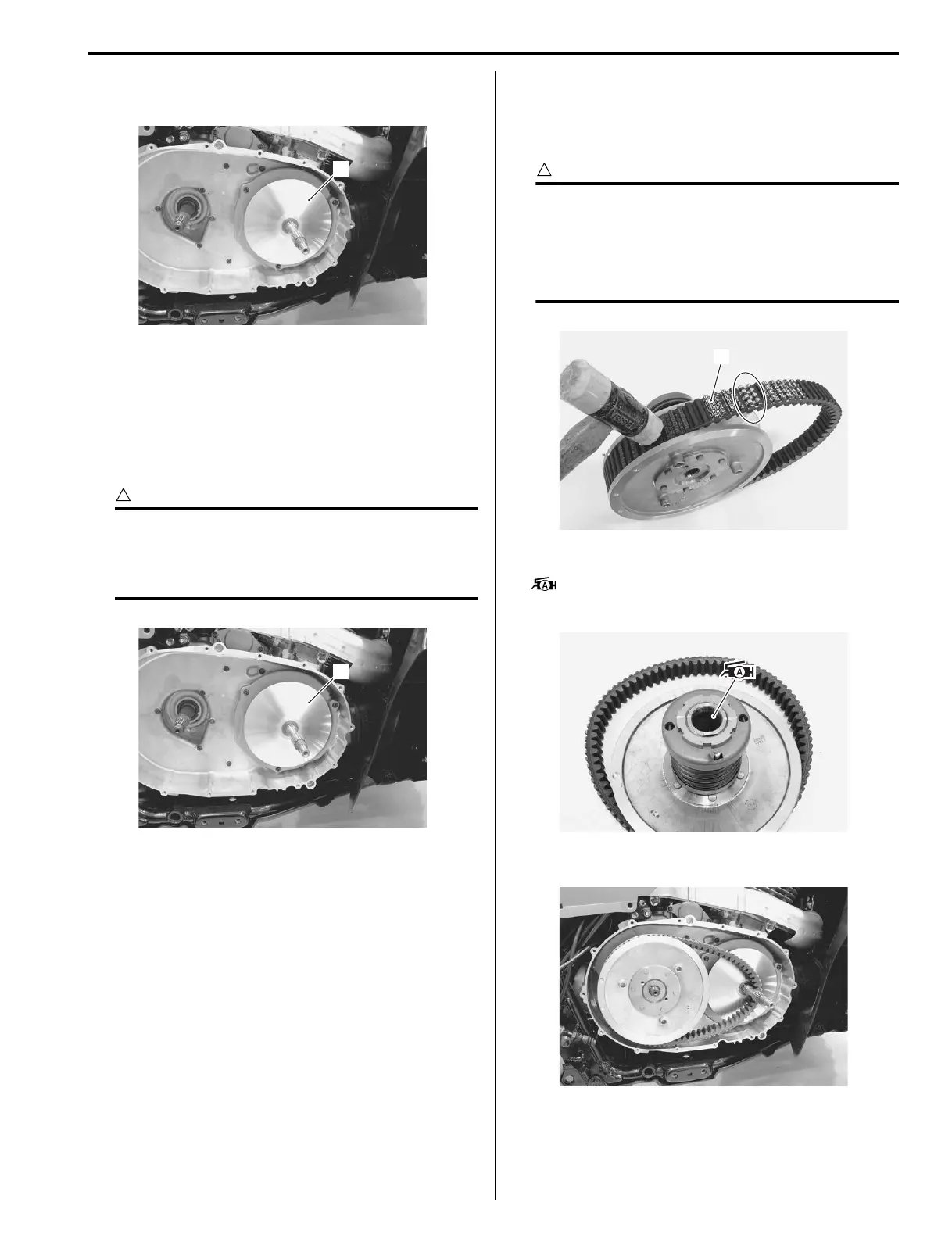

Automatic Transmission: 5A-8
Fixed drive face
Remove the fixed drive face (1).
Installation
Install the automatic transmission component parts. Pay
attention to the following points:
Fixed drive face
• Install the fixed drive face (1).
CAUTION
!
Degrease the fixed drive face (1). Use
nonflammable cleaning solvent to wipe off
oily or greasy matter and make its surfaces
completely dry.
Movable driven face / drive V-belt
• Install the drive V-belt (1) as low as possible, between
the movable driven face and fixed driven face by
tapping it with a plastic mallet.
CAUTION
!
• The drive belt should be installed so that
the arrows on the drive belt periphery
point in the normal turning direction.
• The drive belt contact surface of the driven
face should be thoroughly cleaned.
• Apply grease in the groove of fixed driven face.
: Grease 99000–25010 (SUZUKI SUPER
GREASE A or equivalent)
• Install the movable driven face assembly.
1
I827H1510013-01
1
I827H1510013-01
1
I827H1510014-02
I827H1510015-01
I827H1510016-02
To Next Page
