Maintenance and Lubrication: 0B-12
3) Remove the oil filler plug (2) and oil level plug (3).
4) Drain final gear oil by removing the drain plug (4).
5) Tighten the oil drain plug (4) to the specified torque.
CAUTION
!
Replace the gasket with a new one.
Tightening torque
Final gear oil drain plug (a): 33 N·m (3.3 kgf-m,
24.0 lb-ft)
6) Pour fresh oil through the oil filler hole until it
overflows from the oil level hole. when performing an
oil change, the final gear case will hold about 350 ml
(11.8/12.3 US/lmp oz) of oil. Use hypoid gear oil SAE
#90, API grade GL-5.
NOTE
Use hypoid gear oil SAE #80, API grade GL-5,
if the vehicle is ridden where the ambient
temperature is below 0 °C (32°F).
Front differential gear oil capacity
350 ml (11.8/12.3 US/Imp oz)
7) Tighten the oil level plug (3) and oil filler plug (2) to
the specified torque.
CAUTION
!
Replace the gasket washers with new ones.
Tightening torque
Final gear oil level plug (b): 10 N·m (1.0 kgf-m,
7.0 lb-ft)
Final gear oil filler plug (c): 33 N·m (3.3 kgf-m,
24.0 lb-ft)
8) Install the final gear case under cover.

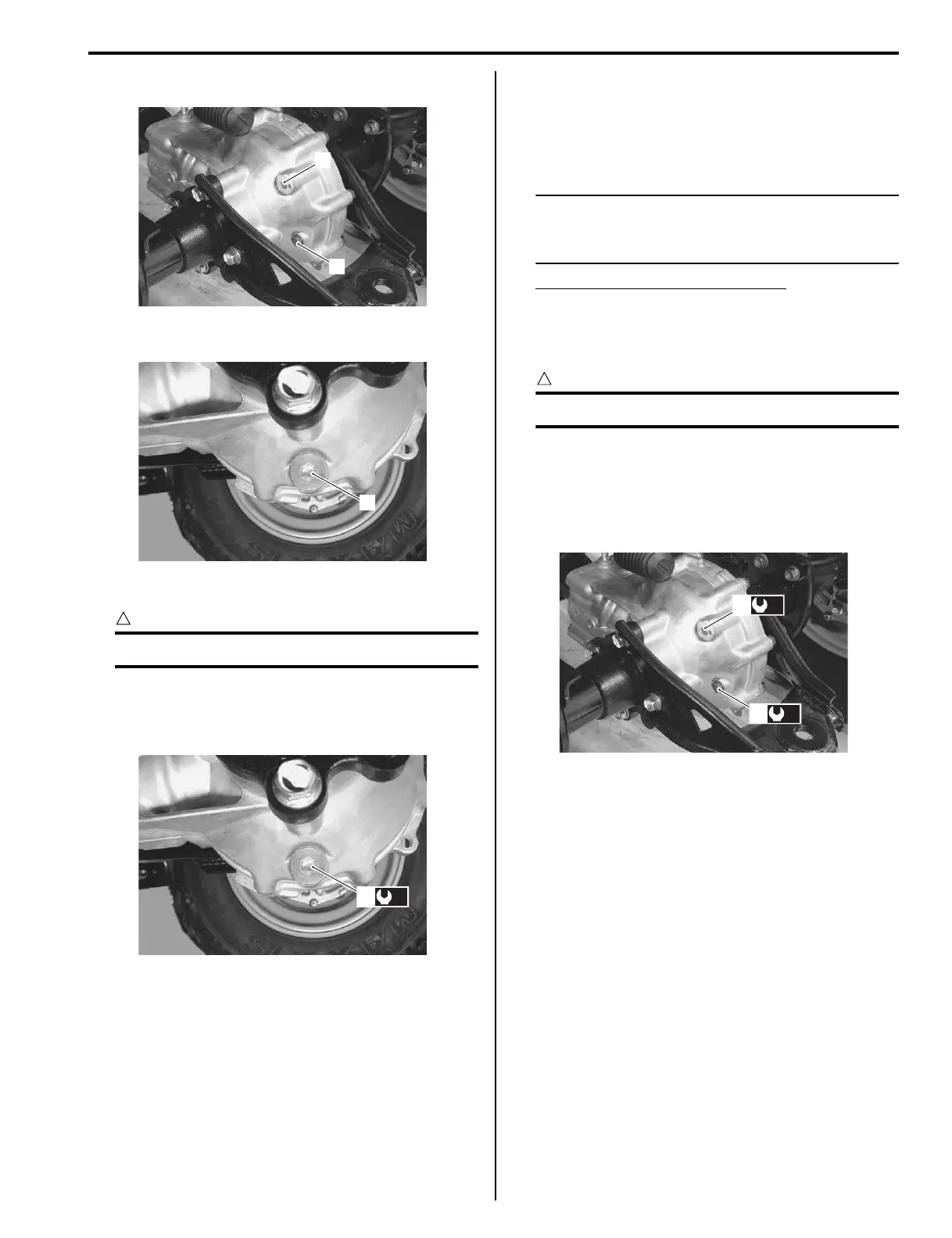

3
2
I827H1020020-01
4
I827H1020021-01
(a)
4
I827H1020022-01
(c)
2
(b)
3
I827H1020023-01
