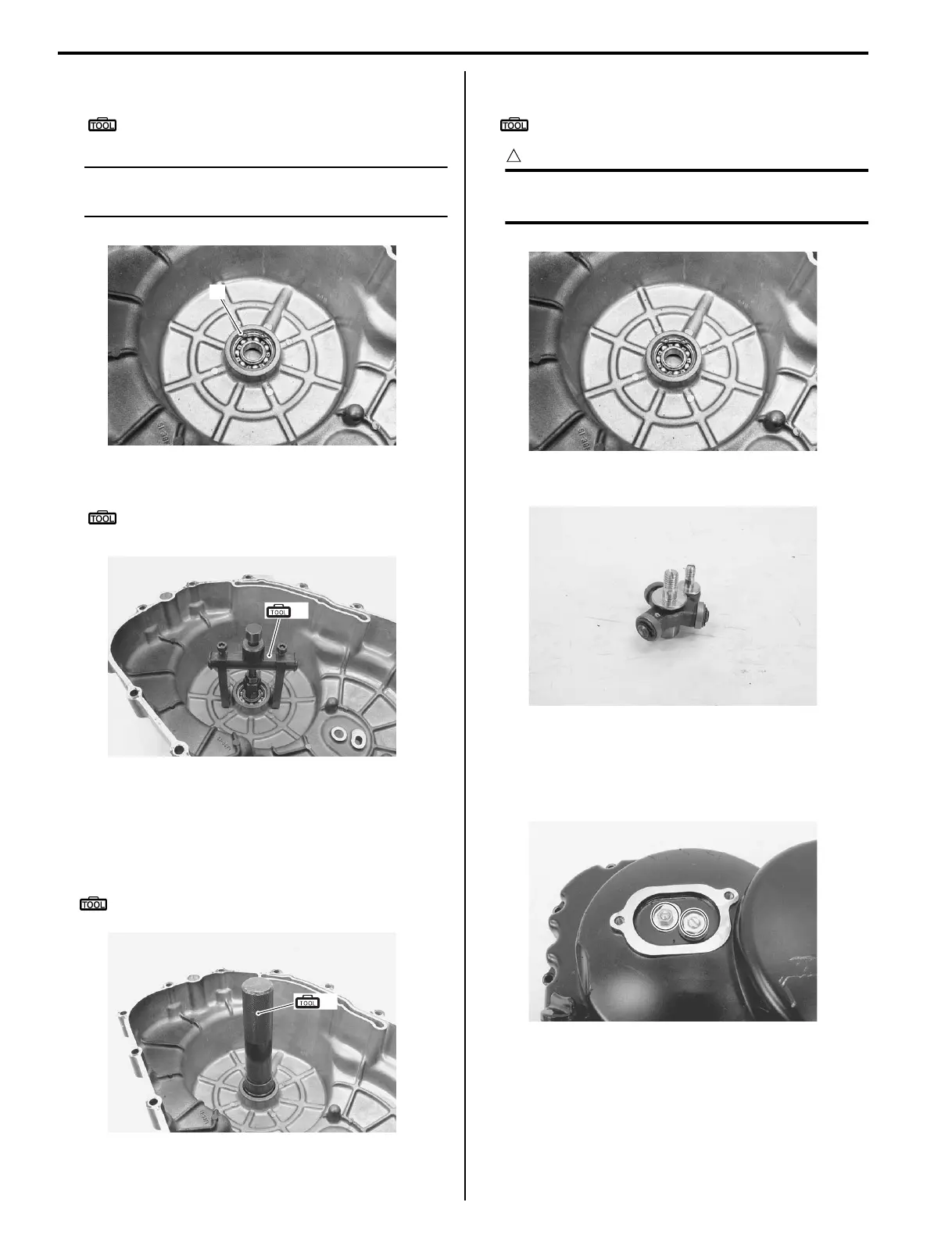

5C-9 Clutch:
2) Remove the snap ring (1) with the special tool.
Special tool
: 09900–06108 (Snap ring pliers)
NOTE
If there is no abnormal noise, the bearing
removal is not necessary.
3) Remove the bearing with the special tool.
Special tool
(A): 09921–20240 (Bearing remover set)
Assembly
Assembly is in the reverse order of disassembly. Pay
attention to the following points:
• Install the bearing with the special tool.
Special tool
(A): 09913–70210 (Bearing installer set)
• Install the snap ring with the special tool.
Special tool
: 09900–06108 (Snap ring pliers)
CAUTION
!
Removed snap ring must be replaced with a
new one.
• Fit the adjusting screw as shown.
• Tighten the lock-nuts temporarily.
• Adjust the clutch release roller after installing the
clutch cover to the engine. Refer to “Clutch Removal
and Installation (LT-F400/F) (Page 5C-3)”.
1
I827H1530028-01
(A)
I827H1530029-01
(A)
I827H1530030-01
I827H1530031-01
I827H1530032-01
I827H1530033-01
To Next Page
