AGL7 module adjustment procedures
To adjust the c
lock timing (older versions only)
NOTE. Only perform the following adjustment procedure if your AGL7 module
has adjustments R470, R471, R473, R474, and R475 as shown in the figure below.
Preparation
To perform the clock timing adjustment, you must first remove the top cover of
theTG8000mainframe. (Seepage2-25,Top cover.)
After you have removed the top cover, find the variable resistors on the AGL7
module circuit b oard. (See Figure 4-3.)

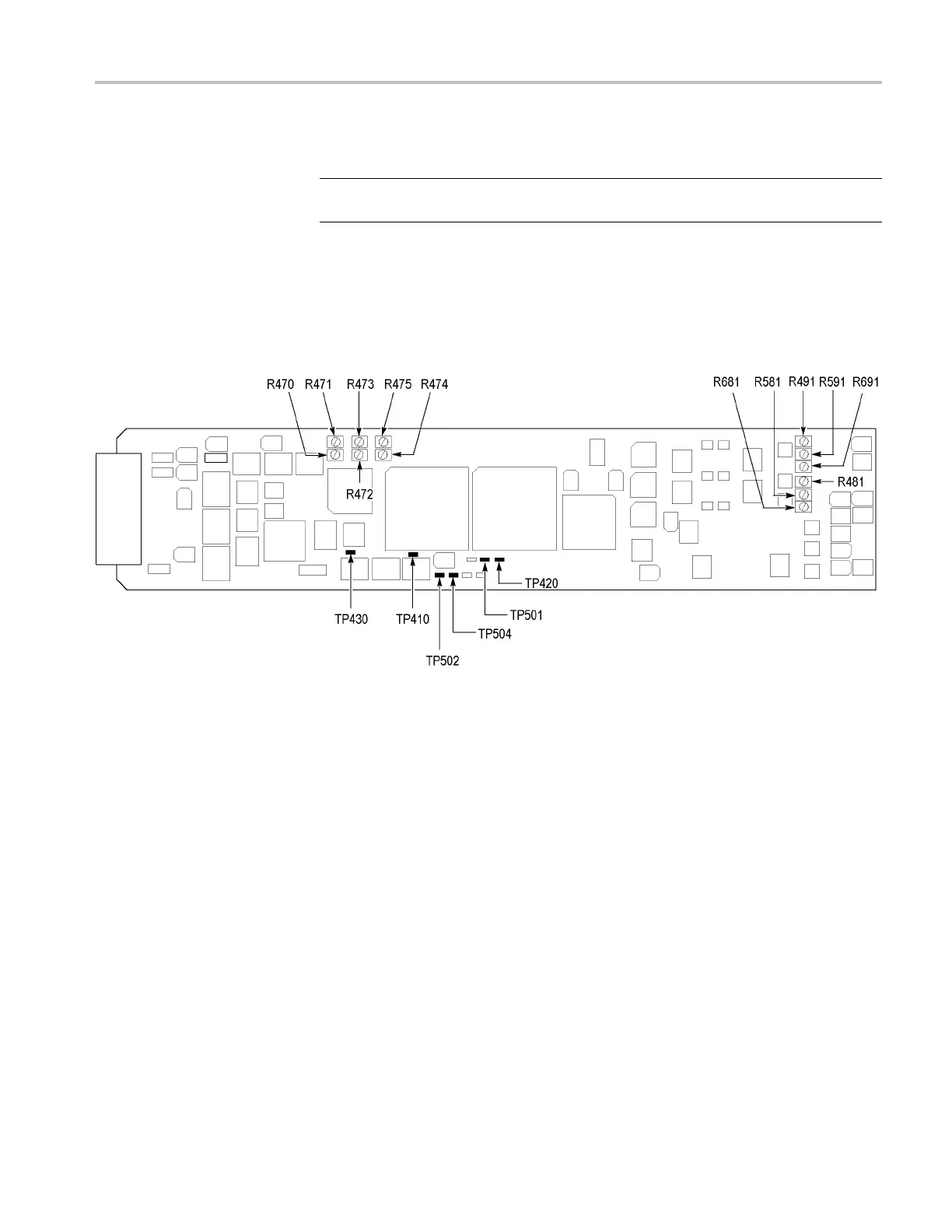

Figur
e 4-3: AGL7 module circuit board (older versions only)
TG8000 Multiformat Test Signal Generator Service Manual 4–7
