BG7 module interconnect diagram
BG7 module int
erconnect diagram
The followin
g gure shows the BG7 module and how it interconnects with the
TG8000 mainframe. Diagrams showing mainframe component interconnections,
such as power supply and oscillator, can be found in the Mainframe diagrams
section of this manual. (See page 2-9.)
A block diagram of the BG7 Generator module is located in the BG7 module
theory of operation section. (See page 8-8, BG7 module theory of operation.)

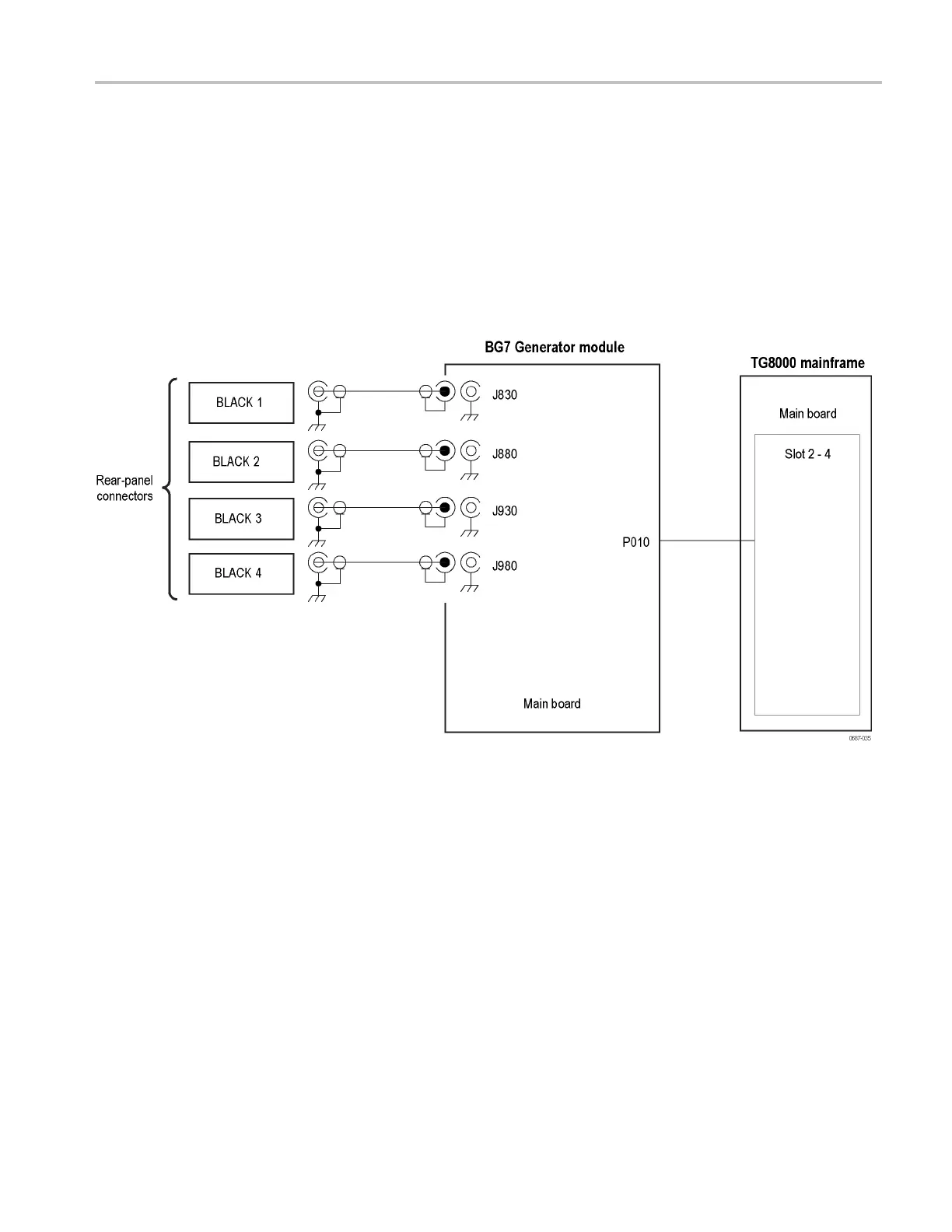

Figure 8-6: BG7 module interconnect diagram
TG8000 Multiformat Test Signal Generator Service Manual 8–9
