AVG7 module interconnect diagram
AVG7 module in
terconnect diagram
The followin
g figure shows the AVG7 module and how it interconnects with
the TG8000 mainframe.
Diagrams sh
owing mainframe component interconnections, such as power supply
and oscillator, can be found in the Mainframe diagrams section of this manual.
(See page 2-9.)
A block diagram of the AVG7 module is located in the AVG7 module theory
of operation section. (See page 6-19.)

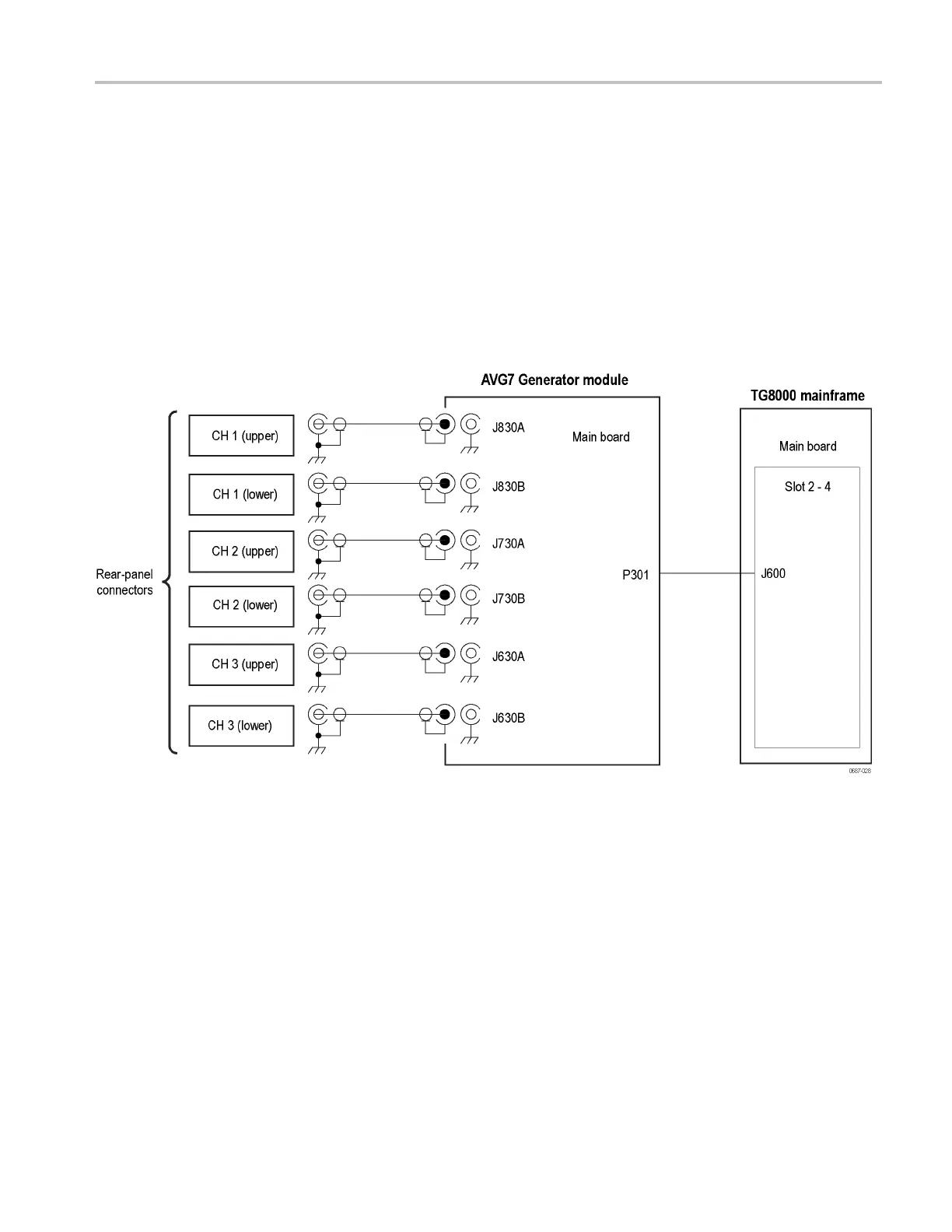

Figure 6-12: AVG7 module interconnect diagram
TG8000 Multiformat Test Signal Generator Service Manual 6–21
