After finishing the procedure
IMPORTANT:
If the control lever handle is hard to operate or the
hook does not lock correctly, speak to an approved
service center. Make sure that the adjustment of
the lift linkage nuts (D) and the pickup hitch hook
(C) is correct.
Examine the pickup hitch components for wear at
a 100 hour interval. Replace a component if
necessary.

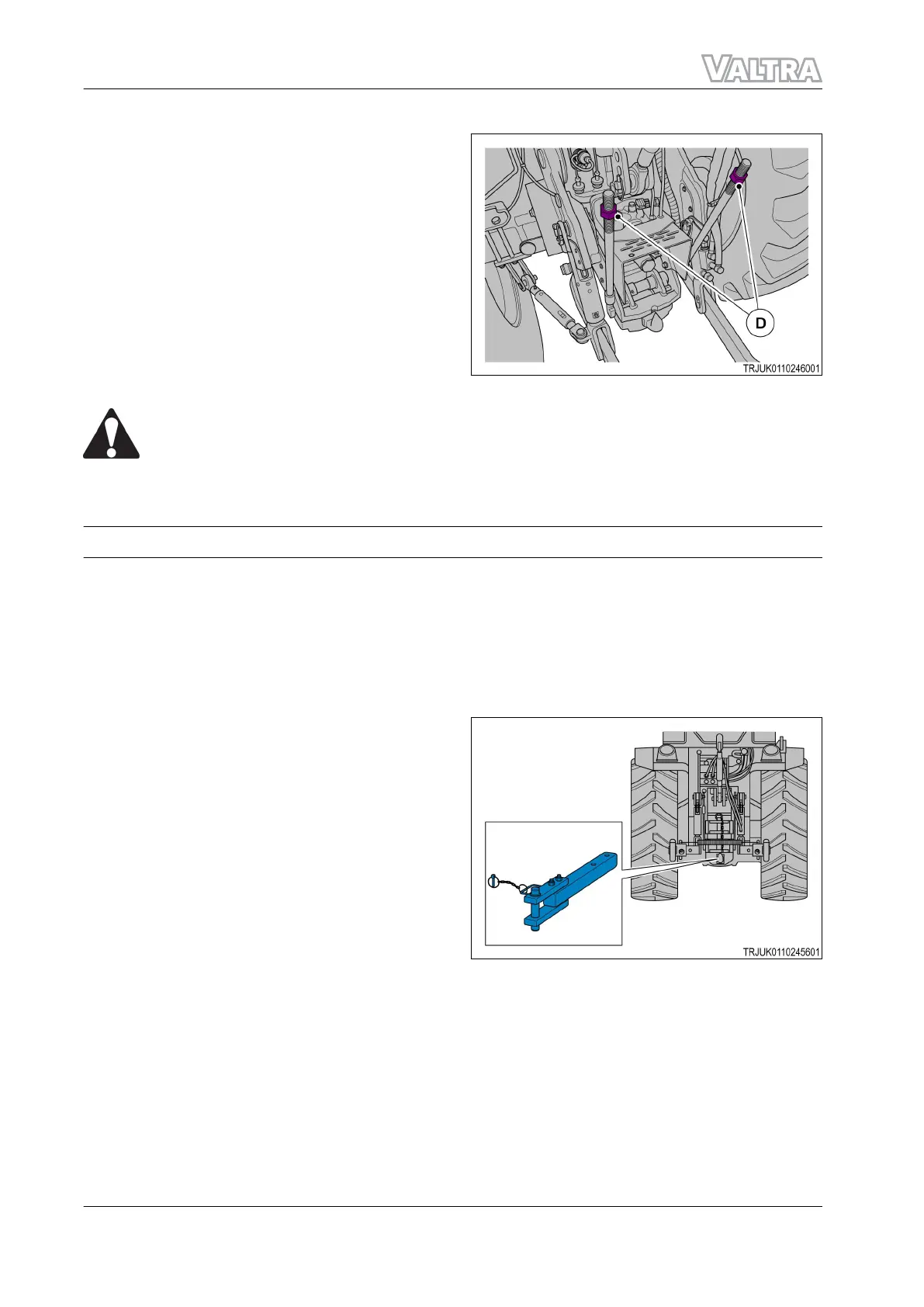

GUID-A9A22D33-D941-4C48-9304-85501F8DE6CD-high.jpg [High]
Fig. 141
CAUTION:
Make sure that the safety locks are in the correct position before you use the machine.
NOTE:
Lubricate the pickup hitch at a 100 hour interval (see the "Lubrication points" in the related section).
3.9.1 Drawbar
Before starting the procedure
It is possible to replace the hook hitch with a drawbar.
Install
1. Lower the hitch.
2. Engage the parking brake and remove the ignition key.
3. Remove the 2 retaining pins from the hook
hitch.
4. Remove the hook hitch.
GUID-D5BE7DB8-98CB-4DC1-94CA-2F6C6A454688-high.jpg [High]
Fig. 142
5. Install the drawbar.
6. Install the 2 retaining pins to the hook hitch.
Use the same procedure to install the hook hitch again, if it is necessary.
