• Draw a second horizontal line (h) at a distance (h) below and parallel to line (H). Distance (h) is calculated
by multiplying distance (H) by 0.1; for example, headlight height 1130 mm x 0.1 = 133 mm.
• Adjust each headlight, on main beam, individually by covering the opposite one and aligning the upper
edge of the illuminated zone to line (h).
4.3.2 Headlight adjustment
Procedure
1. Open the engine hood.
2. Turn the screws (A), (B) and (C) in order to
adjust the light alignment.

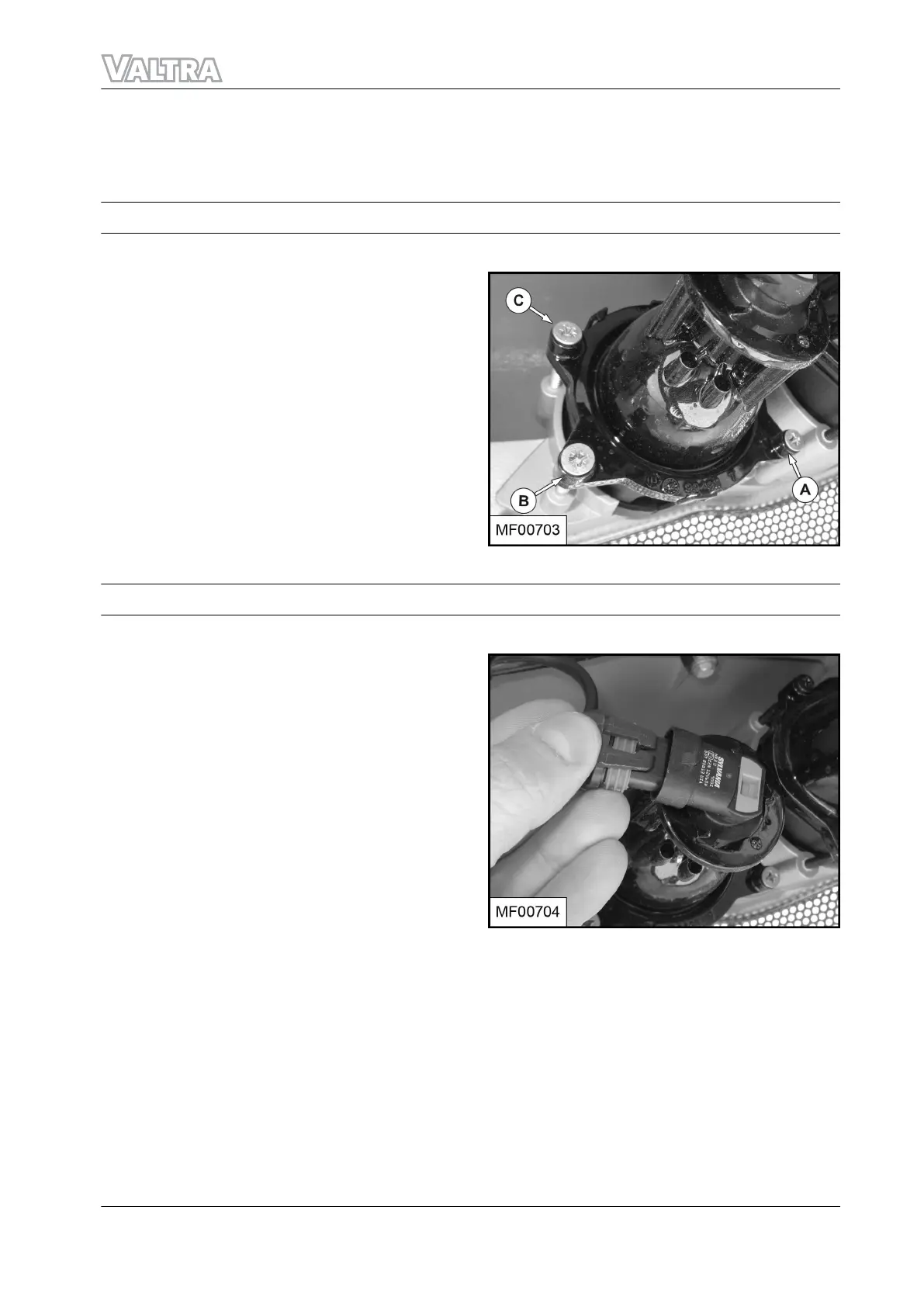

GUID-ECAD2C57-323D-4584-9AC3-0DF9739D0992-low.png [Low]
Fig. 30
4.3.3 Headlight - lamp bulb replacement
Procedure
1. Turn the ignition key OFF and disconnect the
battery cut-o switch.
2. Disconnect the electrical connector from the
lamp bulb.
GUID-649F03E1-25AF-4982-9C82-B8DE65781A6C-low.png [Low]
Fig. 31
GUID-9E420D1A-4D59-4FEA-B737-BF1178EDB8C5 [V1]
GUID-EBA55165-0488-4DA1-BE7E-7CD48B7AB791 [V2]
4. Maintenance
F Series 161
39940211 (555124)
