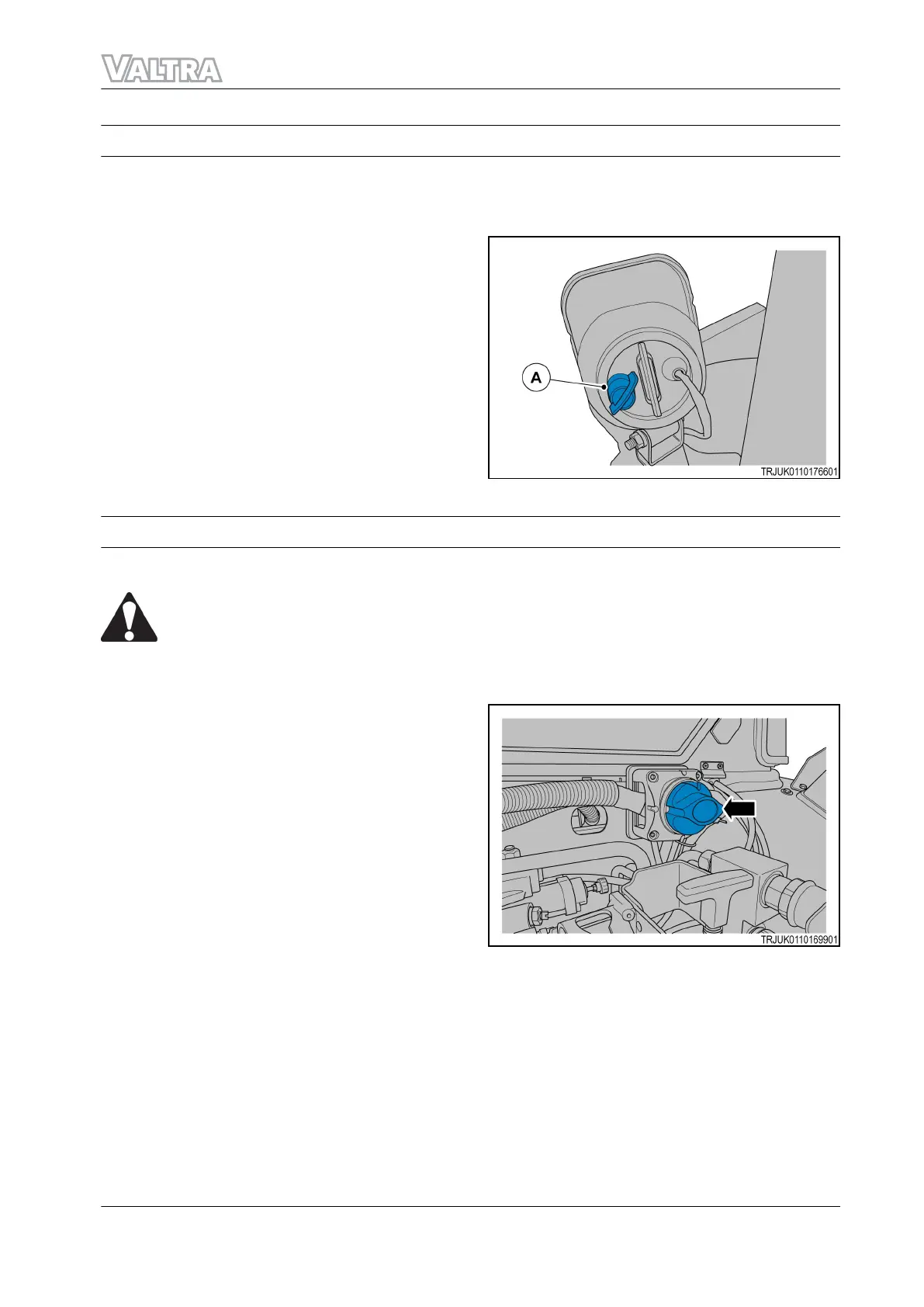

4.3.7 Replace a bulb in the rear work lamp
Rear work lamp
1. Make sure that the ignition switch is set to OFF.
2. Remove the cover (A) to get access to the
bulb.
3. Push the bulb in and turn it counterclockwise
to release. Remove the bulb.
4. Push the bulb in and turn it clockwise to
install.
5. Install the cover.
GUID-6B2B8C07-0094-4D3C-A569-E05D76FC13F7-high.jpg [High]
Fig. 49
4.3.8 Replace a bulb in a cab work lamp
Before starting the procedure
WARNING: Falling o, or into the machine.
Falls from height cause death or injury.
Use the applicable access equipment when you do work at height.
Procedure
1. IMPORTANT:
Do not immediately set the battery cut-o
switch to the OFF position. Wait a minimum
of 1 minute from the last engine stop
(ignition switch to OFF). This gives the
electronic control units a correct shutdown
process.
Set the ignition switch to OFF.
2. Set the battery cut-o switch to OFF.
GUID-1B15357E-1844-4A55-9707-521779B4ABBC-high.jpg [High]
Fig. 50
GUID-31223878-B8A6-41BE-9C0A-992E4FF07141 [V1]
GUID-35AF68BD-6D63-4342-8D9E-C77CD8E78AB0 [V1]
4. Maintenance
F Series 167
39940211 (555124)
