3.1.1.3 Controls for the PowerShuttle low specification version
PowerShuttle low specification version
GUID-1E9607B5-5F7A-4E63-8D65-892B6638F303-low.png [Low]

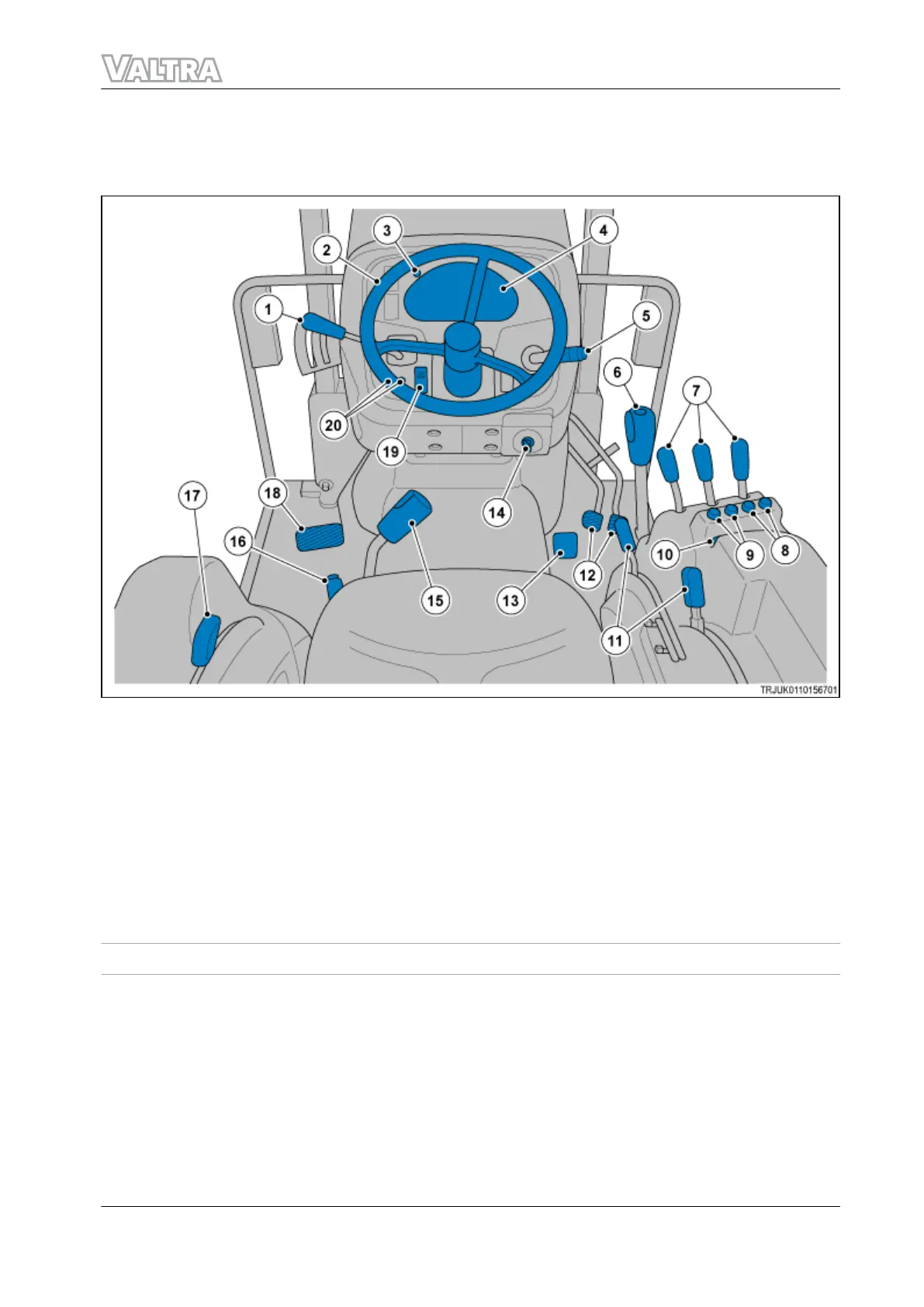

Fig. 3
(1)
PowerShuttle lever
(2) Steering wheel
(3) Variable Forward Reach (VFR) control switch
(4) Instrument panel
(5) Road lamps and direction indicator switch
(6) Gear lever
(7) Hydraulic control levers
(8) Manual adjustment switch
(9) Cruise control switch
(10) Hand throttle lever
(11) Mechanical lift control levers
(12) Brake pedal
(13) Throttle pedal
(14) Ignition key switch
(15) Range lever
(16) Parking brake lever
(17) Selection lever for the PTO mode
(18) Clutch pedal
(19) Hazard light switch
(20) Digital display controls.
3.1.2 Transmission control levers
3.1.2.1 PowerShuttle lever
You can control the direction of the machine with the PowerShuttle lever. It has 3 positions:
• Up = Forward travel
• Middle = Neutral
• Down = Rearward travel
IMPORTANT:
Move your foot fully away from the clutch pedal when you are not operating the clutch. This stops the
unwanted wear of the clutch.
