NetSure
™
Control Unit (NCU)
User Manual, UM1M830BNA
Spec. No: 1M830BNA, 1M830DNA Code: UM1M830BNA
Model No: M830B, M830D Revision M, May 12, 2017
Changing Programmable Parameters in the Settings Menu
To change a programmable parameter, select or enter a new value for the parameter then click on “Set” to change the value.
NOTE: Settings that appear "grayed out" can only be made when the controller is in the "manual control" state. If the controller is set for
"automatic" control, change the “Auto/Manual State” setting first to the “Manual” setting.
NOTE: Some parameters are not available for NCU configurations that enable NCU capability to receive status information sent from
FIAMM SoNick (Sodium Nickel) batteries.
Quick Settings Tab Programmable Parameter Descriptions
Site Settings: Enter a "Site Name", "Site Location", and "System Name".
Time Settings: Enter the time or select "Get Local Time from Connected PC".
In the Time Settings section, click on "Get Local Time from Connected PC" and then “Set” to automatically set the date and time.
To manually set the date and time, click on “the clock symbol” and enter the date and time. Then select the “Confirm” button.
See Figure 58. In the Time Settings section, click on “Set” to save the change.

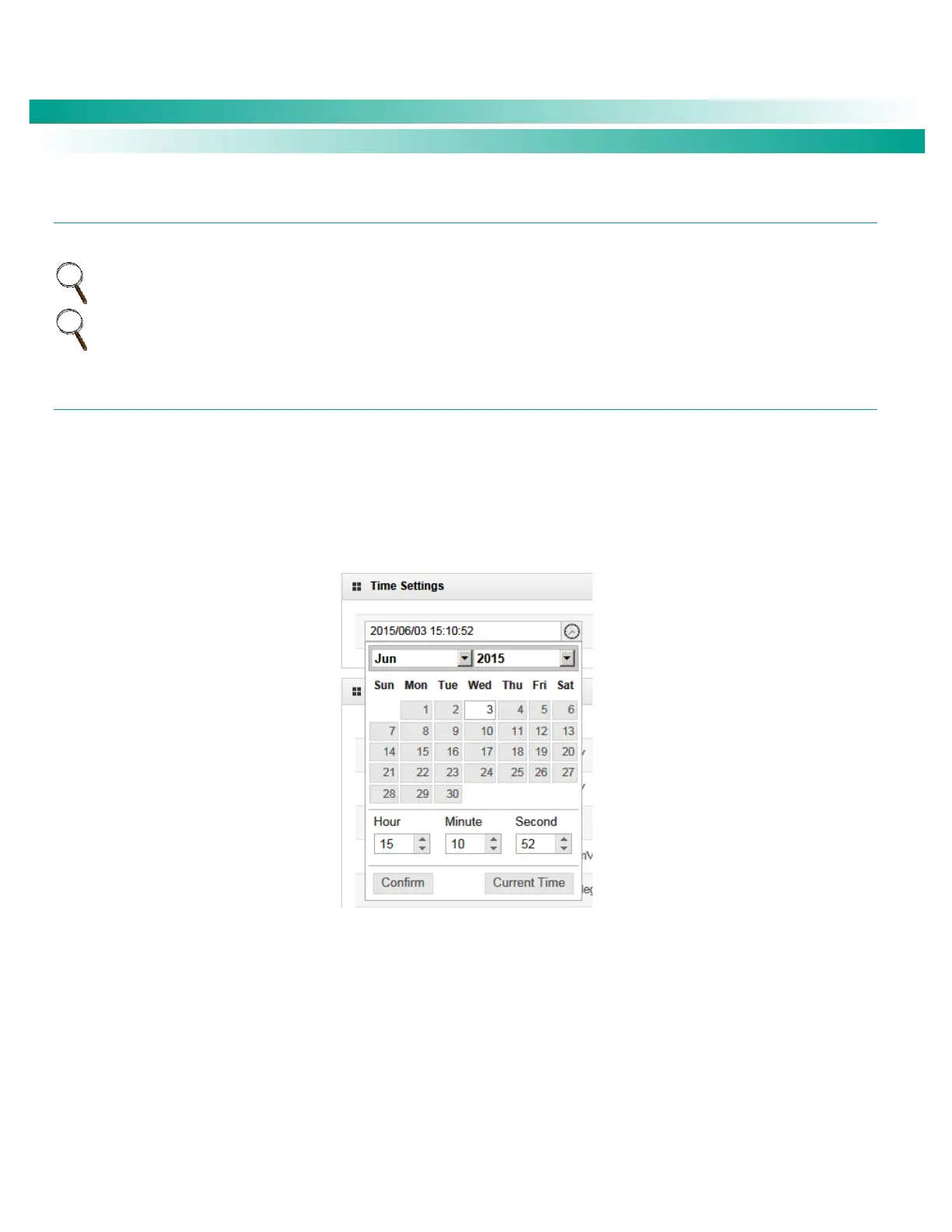

Figure 58. Manual Date and Time Menu
Signal Settings:
o Float Charge Voltage: Float Charge output voltage setting.
o Equalize Charge Voltage: Equalize Charge output voltage setting.
o Temp Comp Sensor: Select "None" for no temperature compensation, or the temperature probe [System Temp1 (bat),
System Temp2 (bat), System Temp3 (bat), IB2-1 Temp1 (bat), IB2-1 Temp2 (bat), EIB-1 Temp1 (bat), EIB-1 Temp2 (bat),
SMTemp1 Temp1 (bat), …, SMTemp1 Temp8 (bat), SMTemp8 Temp1 (bat), …, SMTemp8 Temp8 (bat)] sensing battery
temperature for temperature compensation. You can also select Maximum or Average which takes the maximum or
average reading of the temperature probes [any of System Temp1 (bat), System Temp2 (bat), System Temp3 (bat), IB2-1
Temp1 (bat), IB2-1 Temp2 (bat), EIB-1 Temp1 (bat), EIB-1 Temp2 (bat), SMTemp1 Temp1 (bat), …, SMTemp1 Temp8
