NetSure
™
Control Unit (NCU)
User Manual, UM1M830BNA
Spec. No: 1M830BNA, 1M830DNA Code: UM1M830BNA
Model No: M830B, M830D Revision M, May 12, 2017
Generator Tab
If you have a special configuration with this feature, you can set the various generator related parameters.

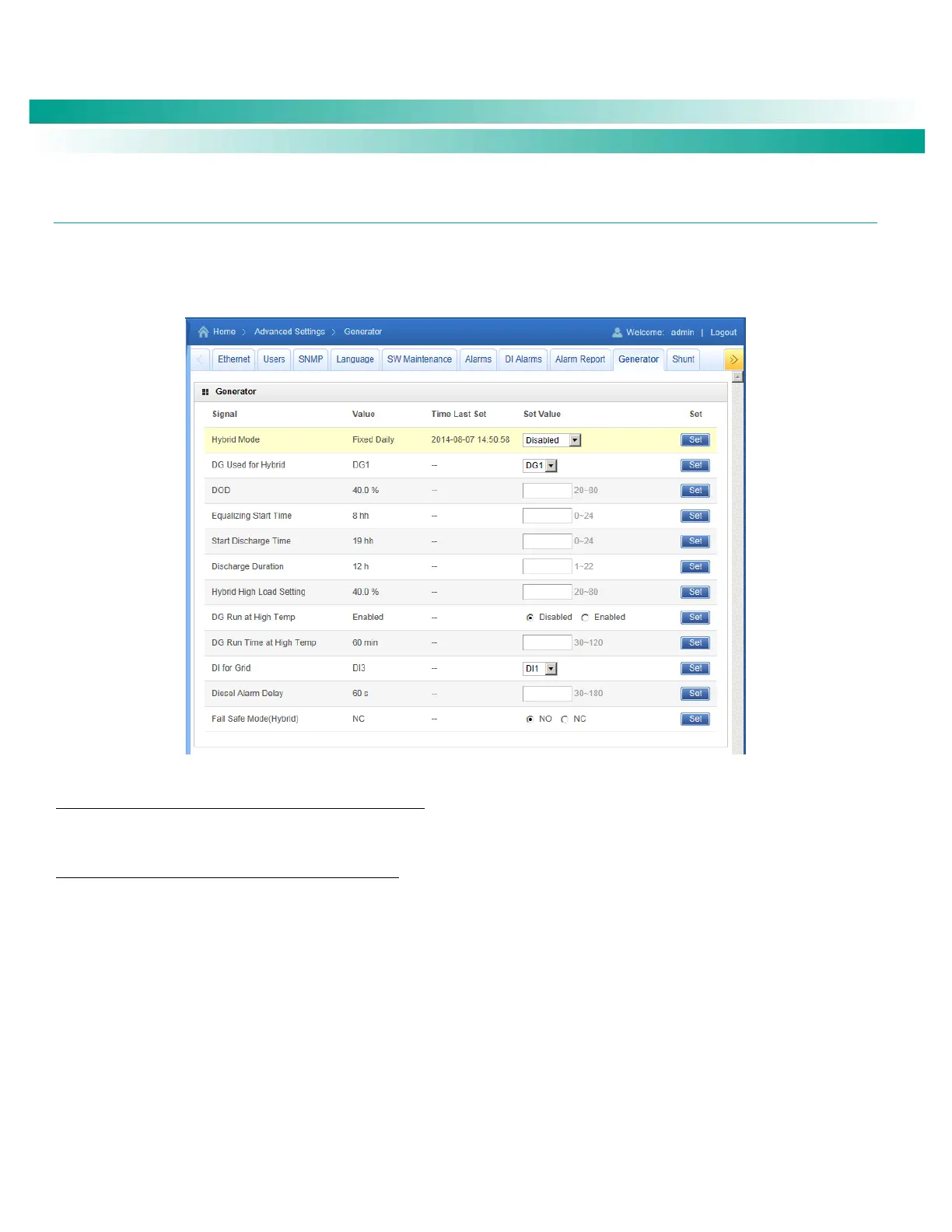

Figure 100. Generator Tab
Changing Programmable Parameters in the Generator Tab
To change a programmable parameter, select or enter a new value for the parameter then click on “Set” to change the value.
Generator Tab Programmable Parameter Descriptions
Hybrid Mode: Refer to “Hybrid Control Function (Supporting Generator, Solar and Wind Energy Input, and Optimization)” on
page 7 for more information on the Hybrid Mode.
o Disabled, Capacity, or Fixed Daily: Sets the Hybrid Mode or disables the function.
DG Used for Hybrid: Sets the diesel generator(s) to be utilized.
DOD: Sets the Depth of Discharge (DOD).
Equalizing Start Time: Sets the start time for equalizing.
Start Discharge Time: Sets the start time for discharge.
Discharge Duration: Sets the discharge duration.
Hybrid High Load Setting: Sets the hybrid high load point.
DG Run at High Temp: Enables or disables diesel generator operation in the high temperature condition.
