Vertiv Netsure User Manual

NetSure
™
Control Unit (NCU)
User Manual, UM1M830BNA
Spec. No: 1M830BNA, 1M830DNA Code: UM1M830BNA
Model No: M830B, M830D Revision M, May 12, 2017
[178]
TL1 AID Group Tab
You can program up to thirty-two (32) Access Identifiers (AID) and assign a Sub-Access Identifier (Sub- Aid) to the access identifier.
Constraints:
 The AID Name that can also have a Sub AID Name Prefix has a 16 character maximum limit.
 The AID Name + Sub AID Name Prefix also has a 16 character maximum limit.

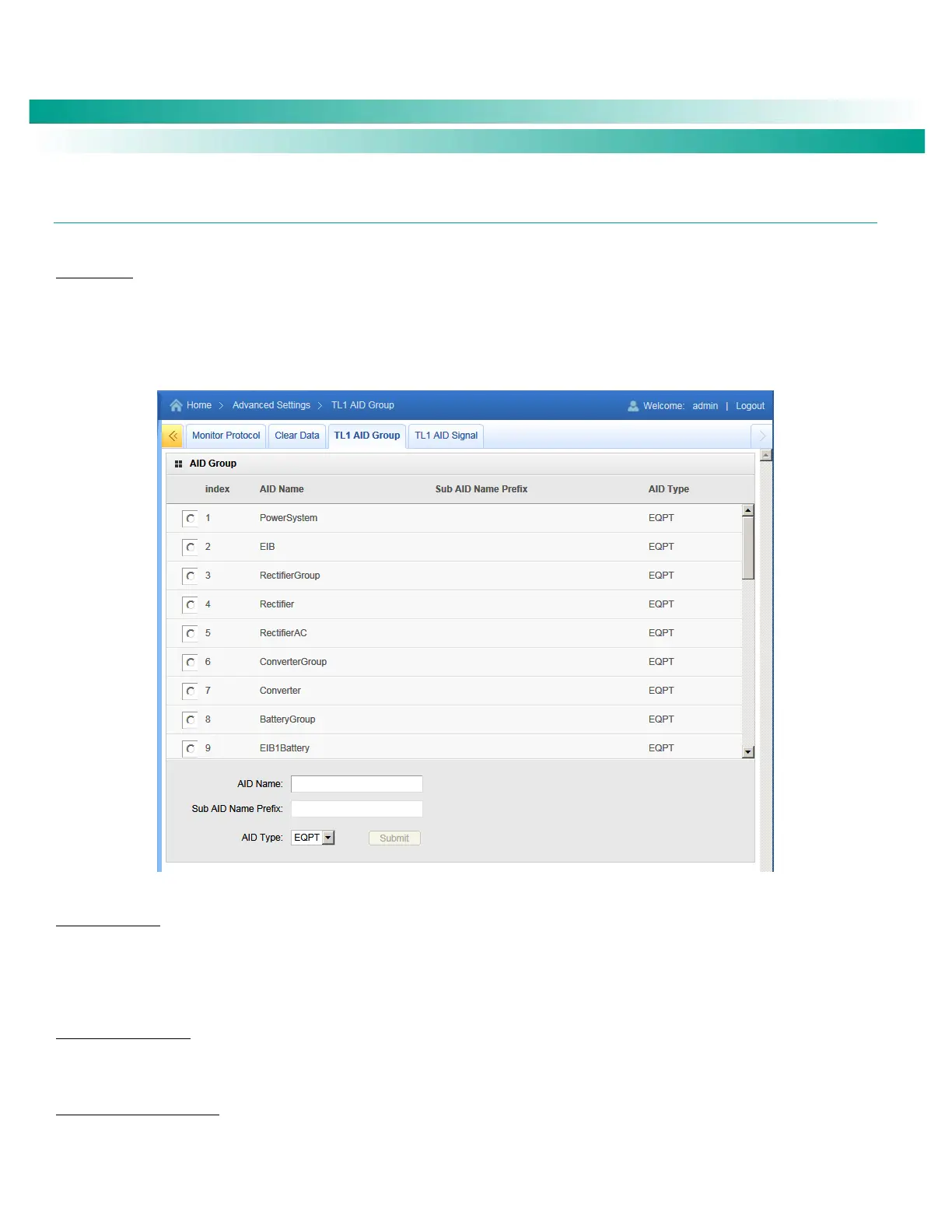

Figure 110. TL1 AID Group Tab
Access Identifier
In an NMA system, a unique access identifier (AID) is used to identify each entity contained within the system. The system must be
configured to allow a single access identifier to be used to access and report on an NMA system entity which may consist of a multiple of
sub-entities, each monitored individually by the NCU. This is accomplished by configuring NCU access identifiers and NCU sub-access
identifiers as described next. A list of access identifiers and sub-access identifiers appears in TA-NWT-001360, Table 4-1.
NCU Access Identifier
Thirty-two (32) NCU access identifiers can be programmed into the NCU. The access identifier is used to uniquely identify a system entity
(such as rectifiers contained in the power plant).
NCU Sub-Access Identifier
The system sub-access identifiers are used to uniquely identify each sub-entity of an entity (such as each rectifier, each battery string, etc.
contained in the power plant). This parameter applies only to TL1 commands/messages. The sub-access identifier identifies a specific
