Vertiv Netsure User Manual

NetSure
™
Control Unit (NCU)
User Manual, UM1M830BNA
Spec. No: 1M830BNA, 1M830DNA Code: UM1M830BNA
Model No: M830B, M830D Revision M, May 12, 2017
[72]
Main Menu

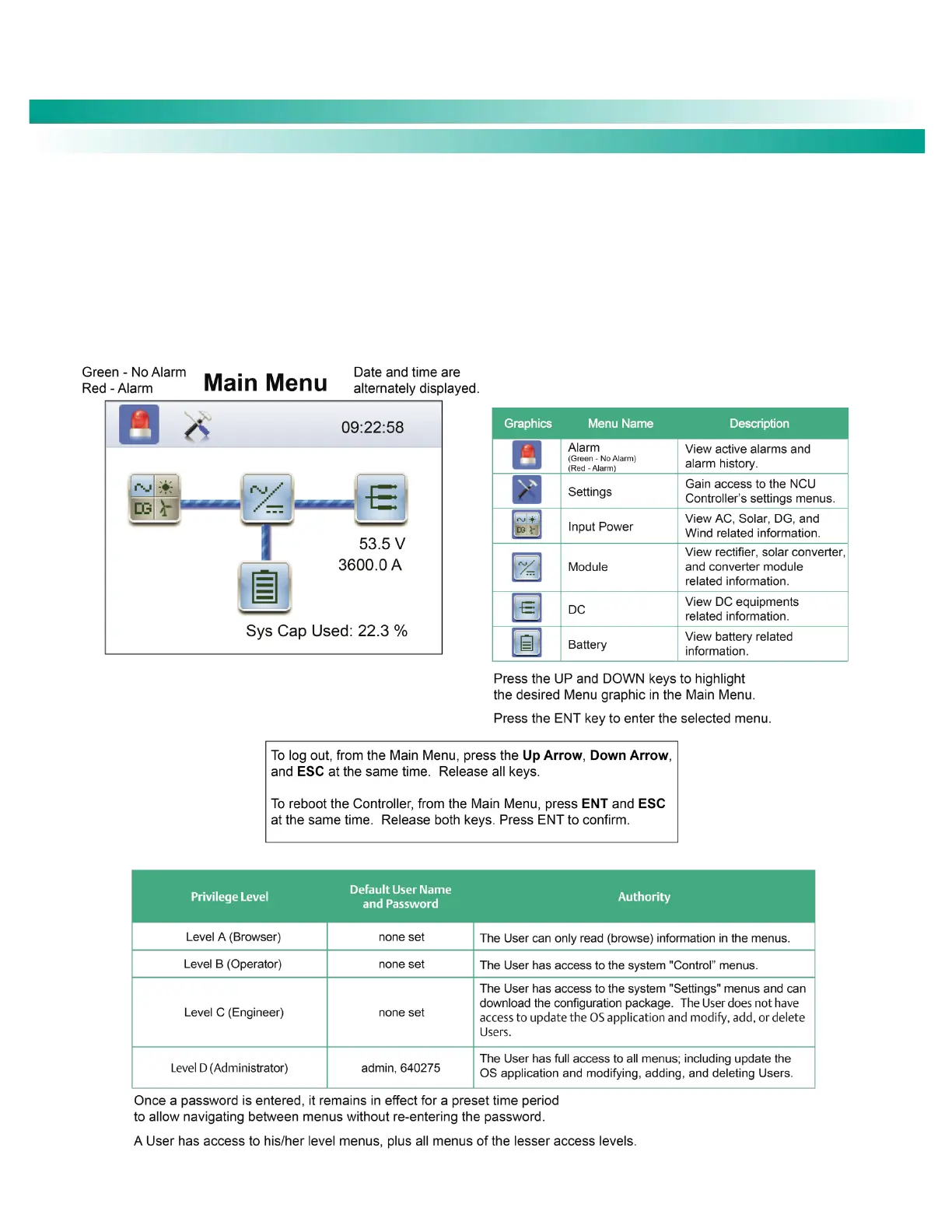

The Main Menu is shown in Figure 11. This is the first screen displayed when the local display is activated by pressing any key on the
NCU’s front panel.
The current displayed on the Main Menu is “total system load current”. The “total system load current” equals total rectifier current or
total solar converter current minus total battery current when battery shunt exists or calculated battery current. If you do not calculate
battery current, “total system load current” equals total rectifier current or total solar converter current.
Figure 11. Main Menu
