9.2 Repairing intermediate shaft
Special tools and workshop
equipment required
♦ Thrust plate -VW 401-
♦ Thrust plate -VW 402-
♦ Thrust piece -T10032-
♦ Thrust piece -3118-
♦ Separating device Kukko
-15-2-
Pressing off bearing

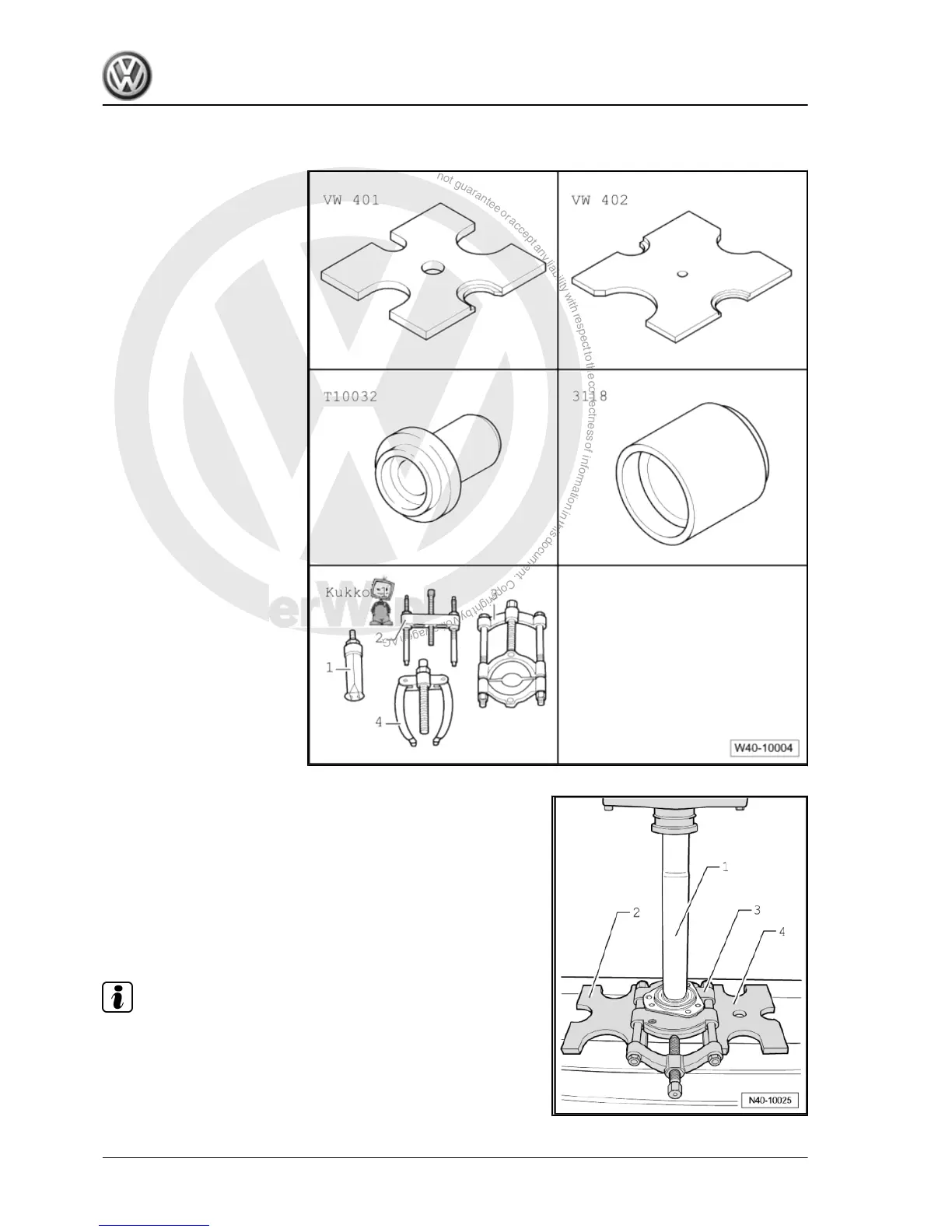

– Press bearing off intermediate shaft as shown in figure.
The jaws of the Kukko splitter -15-2- must be facing shaft.
1 - Intermediate shaft with bearing
2 - Thrust plate -VW 402-
3 - Thrust plate -VW 401-
4 - Separating device Kukko -15-2-
Note
Hold shaft when pressing out.
Golf 2004 ➤ , Golf Plus 2005 ➤
Running gear, axles, steering - Edition 08.2009
114 Rep. Gr.40 - Front suspension
