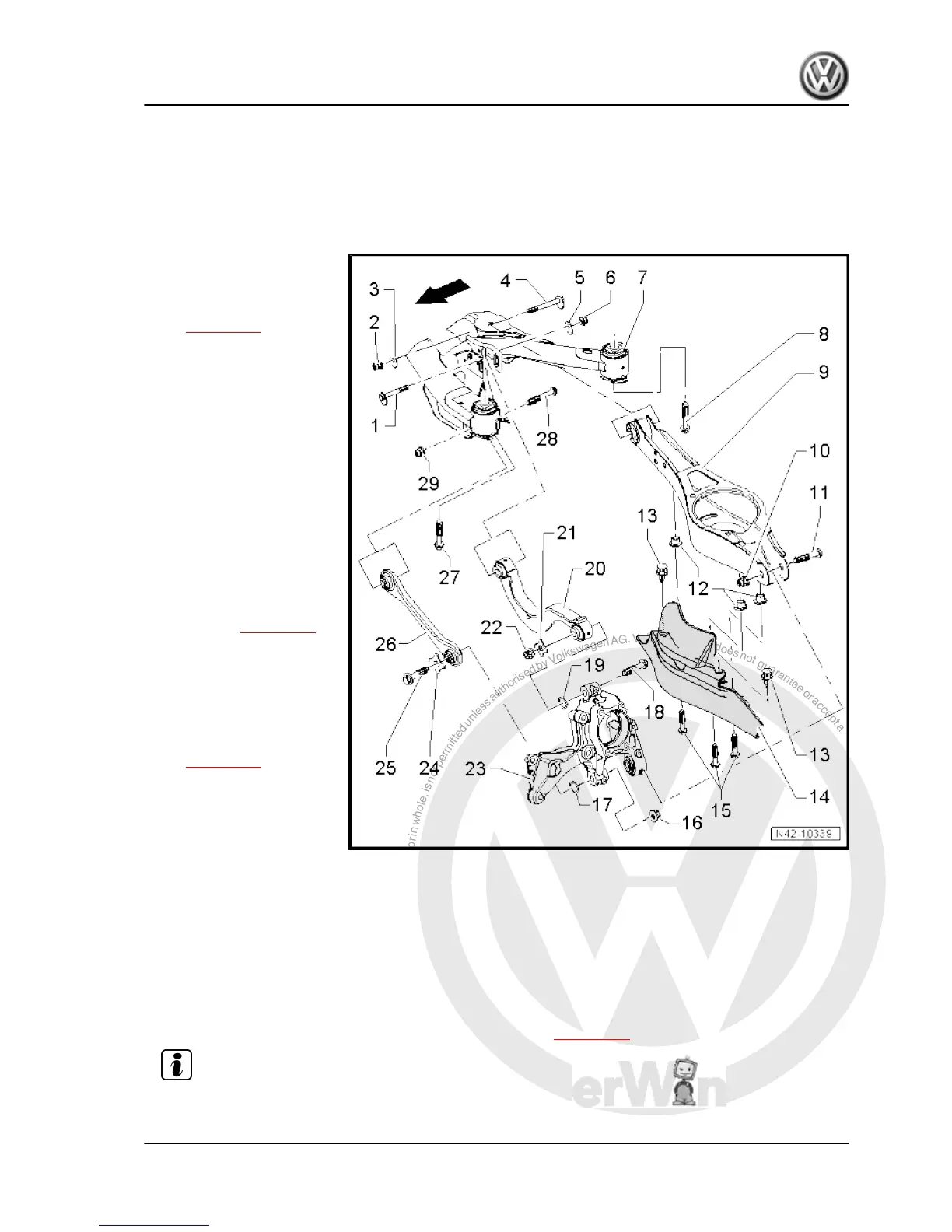

12 Assembly overview - control arm, track rod (four-wheel drive, sub‐
frame made from steel and wheel bearing housing made from alumi‐
nium)
-Arrow- indicates direction of travel.
1 - Eccentric bolt
❑ Check wheel alignment
whenever this compo‐
nent is loosened
⇒ page 305 .
❑ Do not turn more than
90° in either direction
(i.e. from minimum to
maximum adjustment
position).
2 - Nut
❑ M12 x 1.5
❑ 95 Nm
❑ Self-locking
❑ Can be loosened and
tightened up to 5 times
for adjustment work
❑ Renew each time after
removing
❑ Always tighten threaded
connections in unladen
position ⇒ page 187
3 - Eccentric washer
❑ Inner hole with lug
4 - Eccentric bolt
❑ Check wheel alignment
whenever this compo‐
nent is loosened
⇒ page 305 .
❑ Do not turn more than
90° in either direction
(i.e. from minimum to
maximum adjustment
position).
5 - Eccentric washer
❑ Inner hole with lug
6 - Nut
❑ M12 x 1.5
❑ 95 Nm
❑ Self-locking
❑ Can be loosened and tightened up to 5 times for adjustment work
❑ Renew each time after removing
❑ Always tighten threaded connections in unladen position ⇒ page 187
Note
Golf 2004 ➤ , Golf Plus 2005 ➤
Running gear, axles, steering - Edition 08.2009
12. Assembly overview - control arm, track rod (four-wheel drive, subframe made from steel and wheel bearing housing made from
aluminium) 223
