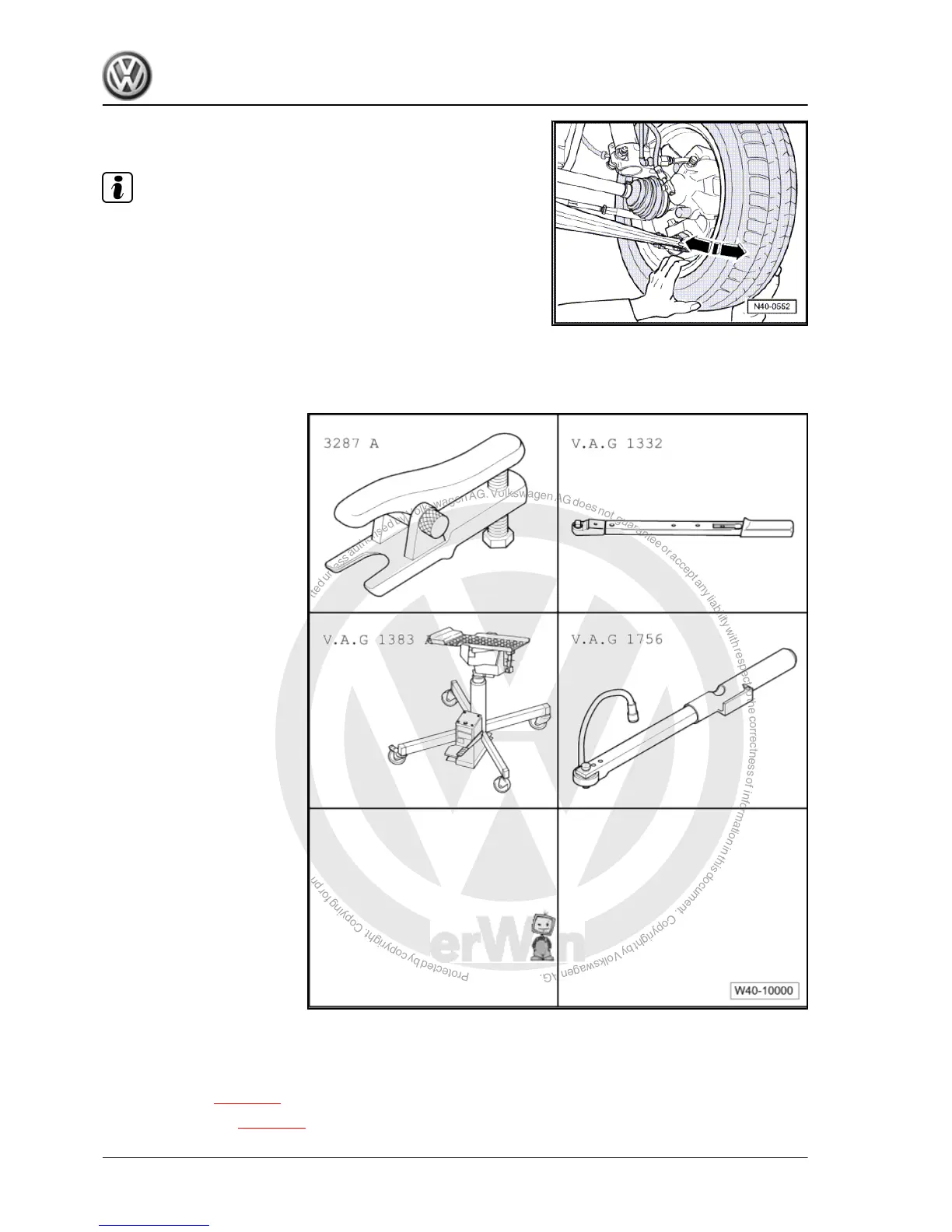

– Press lower part of wheel forcefully inwards and outwards in
-direction of arrow-.
Note
♦ There should be no palpable or visible “play” during both tests.
♦ Observe swivel joint while performing tests.
♦ Take into account possible existing “play” in wheel bearing or
in upper suspension strut mounting.
♦ Check rubber boot for damage and renew swivel joint if nec‐
essary.
3.12 Removing and installing swivel joint
Special tools and workshop
equipment required
♦ Ball joint puller -3287A-
♦ Torque wrench -V.A.G
1332-
♦ Engine and gearbox jack -
V.A.G 1383 A-
♦ Torque/angle wrench -
V.A.G 1756-
Removing
– Loosen drive shaft bolt at wheel hub:
♦ Hexagon bolt ⇒ page 77
♦ Twelve-point bolt ⇒ page 78
Golf 2004 ➤ , Golf Plus 2005 ➤
Running gear, axles, steering - Edition 08.2009
34 Rep. Gr.40 - Front suspension
