31 - Nut
❑ 65 Nm
❑ When tightening, counter hold on hexagon socket of joint stub.
❑ Self-locking
❑ Always renew after removing
32 - Anti-roll bar
❑ Various versions
❑ Allocation ⇒ Electronic parts catalogue “ETKA”
❑ Removing and installing ⇒ page 51

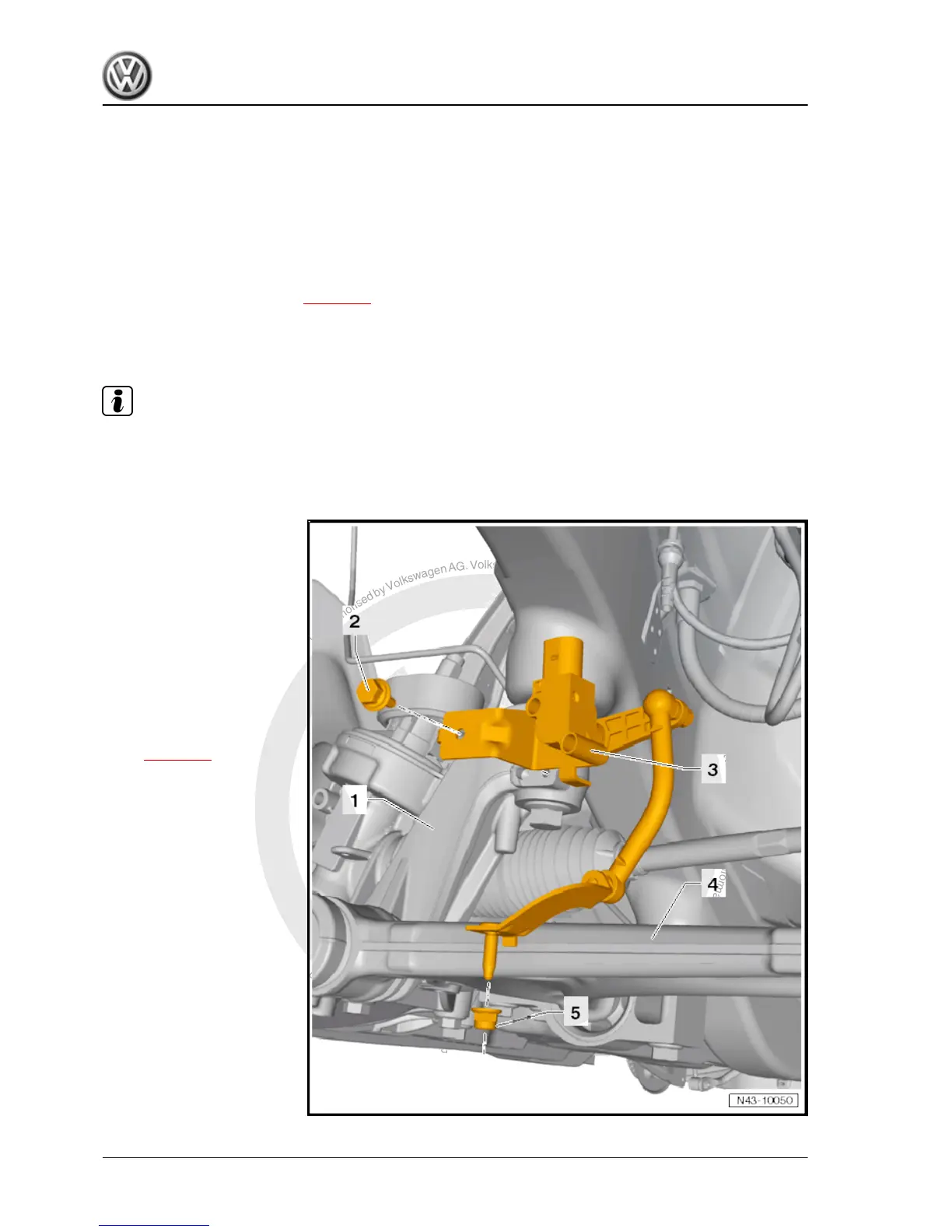

3.2 Assembly overview - front left vehicle level sender -G78-
Note
♦ The front left vehicle level sender -G78/- is only available as a replacement part complete with coupling rod
and upper and lower retaining plates.
♦ Replace with subframe installed.
1 - Subframe
2 - Bolt
❑ M6 x 16
❑ 9 Nm
3 - Front left vehicle level send‐
er -G78- and front right vehicle
level sender -G289-
❑ Complete with attach‐
ments
❑ Lever -arrow- must face
outwards
❑ Removing and installing
⇒ page 15
❑ Following renewal, ba‐
sic settings for headlight
must be performed.
Basic setting of headlights ⇒
"Guided fault-finding" function
of vehicle diagnosis, testing
and information system
VAS 5051
4 - Suspension link
5 - Nut
❑ 9 Nm
❑ Self-locking
❑ Always renew after re‐
moving
Golf 2004 ➤ , Golf Plus 2005 ➤
Running gear, axles, steering - Edition 08.2009
14 Rep. Gr.40 - Front suspension
