Volkswagen 2005 Golf Plus User Manual

P
r
o
t
e
c
t
e
d
b
y
c
o
p
y
r
i
g
h
t
.
C
o
p
y
i
n
g
f
o
r
p
r
i
v
a
t
e
o
r
c
o
m
m
e
r
c
i
a
l
p
u
r
p
o
s
e
s
,
i
n
p
a
r
t
o
r
i
n
w
h
o
l
e
,
i
s
n
o
t
p
e
r
m
i
t
t
e
d
u
n
l
e
s
s
a
u
t
h
o
r
i
s
e
d
b
y
V
o
l
k
s
w
a
g
e
n
A
G
.
V
o
l
k
s
w
a
g
e
n
A
G
d
o
e
s
n
o
t
g
u
a
r
a
n
t
e
e
o
r
a
c
c
e
p
t
a
n
y
l
i
a
b
i
l
i
t
y
w
i
t
h
r
e
s
p
e
c
t
t
o
t
h
e
c
o
r
r
e
c
t
n
e
s
s
o
f
i
n
f
o
r
m
a
t
i
o
n
i
n
t
h
i
s
d
o
c
u
m
e
n
t
.
C
o
p
y
r
i
g
h
t
b
y
V
o
l
k
s
w
a
g
e
n
A
G
.

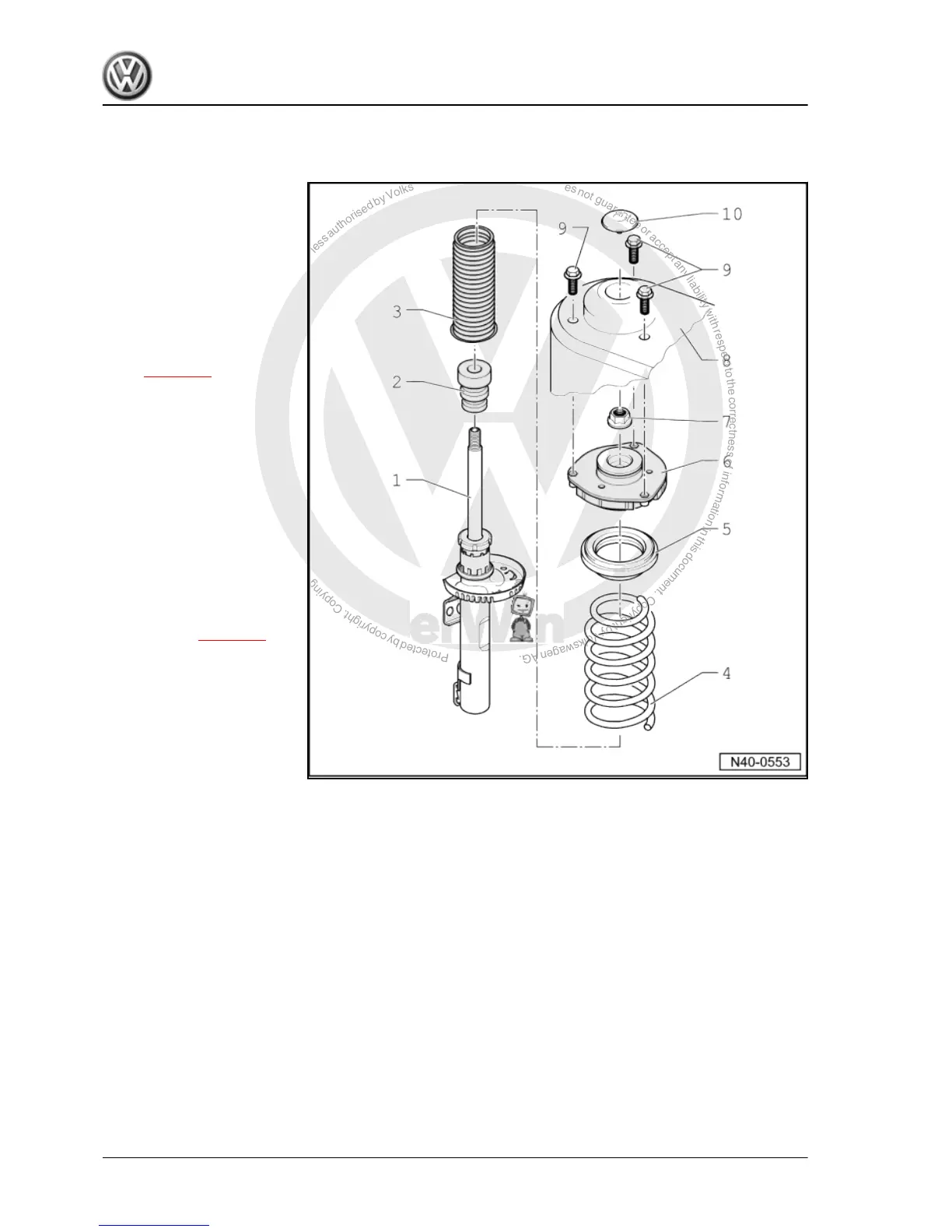

5 Assembly overview: suspension strut
1 - Shock absorber
❑ Can be renewed sepa‐
rately
❑ Allocation ⇒ Electronic
parts catalogue “ETKA”
2 - Bump stop
3 - Protective sleeve
4 - Coil spring
❑ Removing and installing
⇒ page 76
❑ Observe colour coding
❑ Allocation ⇒ Electronic
parts catalogue “ETKA”
Spring allocation via PR No.
These numbers are located on
the vehicle data sticker.
❑ Surface of coil must not
be damaged.
5 - Deep groove ball thrust
bearing
6 - Suspension strut mounting
❑ Note correct installation
position ⇒ page 67
7 - Nut
❑ M14 x 1.5
❑ 60 Nm
❑ Self-locking
❑ Always renew after re‐
moving
8 - Suspension strut turret
9 - Bolt
❑ 15 Nm + 90° further
❑ Always renew after removing
10 - Protective cap
Golf 2004 ➤ , Golf Plus 2005 ➤
Running gear, axles, steering - Edition 08.2009
64 Rep. Gr.40 - Front suspension
