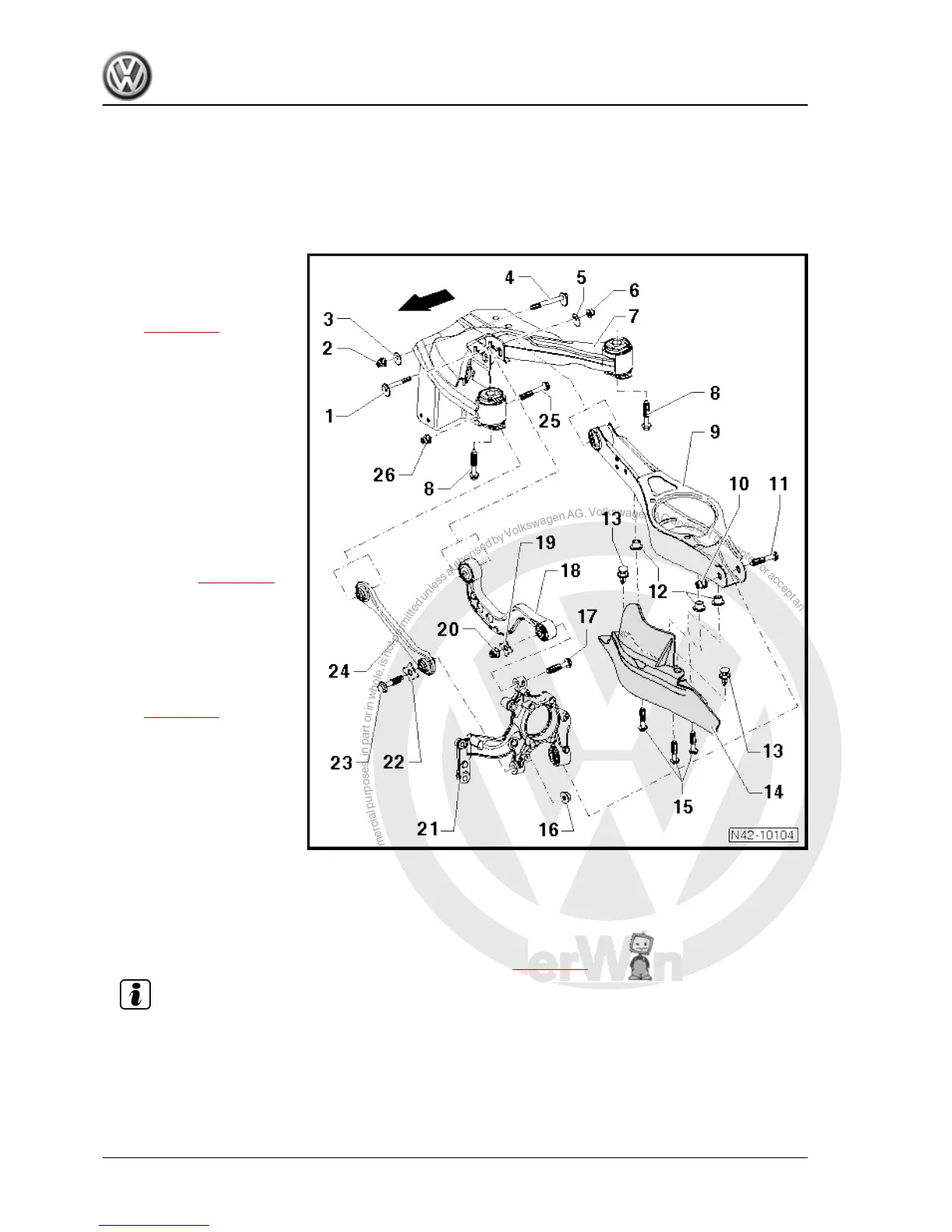

11 Assembly overview - control arm, track rod (four-wheel drive, sub‐
frame made from aluminium and wheel bearing housing made from
cast steel)
-Arrow- indicates direction of travel.
1 - Eccentric bolt
❑ Check wheel alignment
whenever this compo‐
nent is loosened
⇒ page 305 .
❑ Do not turn more than
90° in either direction
(i.e. from minimum to
maximum adjustment
position).
2 - Nut
❑ M12 x 1.5
❑ 95 Nm
❑ Self-locking
❑ Always renew after re‐
moving
❑ Always tighten threaded
connections in unladen
position ⇒ page 187
3 - Eccentric washer
❑ Inner hole with lug
4 - Eccentric bolt
❑ Check wheel alignment
whenever this compo‐
nent is loosened
⇒ page 305 .
❑ Do not turn more than
90° in either direction
(i.e. from minimum to
maximum adjustment
position)
5 - Eccentric washer
❑ Inner hole with lug
6 - Nut
❑ M12 x 1.5
❑ 95 Nm
❑ Self-locking
❑ Always renew after removing
❑ Always tighten threaded connections in unladen position ⇒ page 187
Note
7 - Subframe
8 - Bolt
❑ M12 x 1.5 x 125
❑ 90 Nm + 90° further
❑ Always renew after removing
Golf 2004 ➤ , Golf Plus 2005 ➤
Running gear, axles, steering - Edition 08.2009
212 Rep. Gr.42 - Rear suspension
