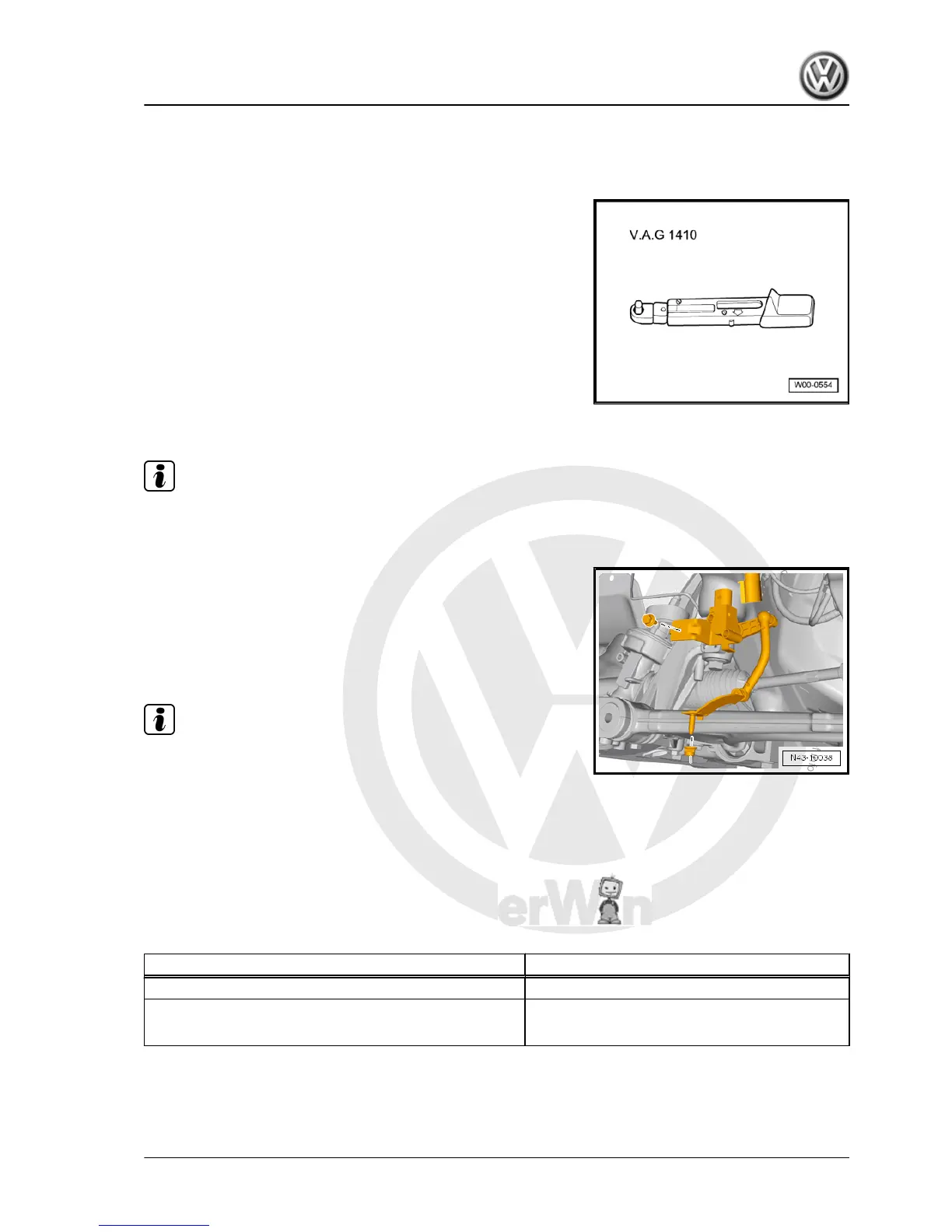

3.3 Removing and installing front left vehicle
level sender -G78-
Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1410-
Removing
Note
To remove front left vehicle level sender -G78- , steering must be
turned to right lock to ensure clearance between suspension link
and anti-roll bar.
– Separate connector.
– Remove bolt and nut.
– Take out vehicle level sender.
Installing
Install in reverse order. Note the following points:
Note
♦ Lever on vehicle level sender must face towards outside of
vehicle.
♦ Thread of vehicle level sender must be screwed into front hole
in suspension link. Lug of bracket for vehicle level sender must
engage in rear hole in order to guarantee correct installation
position.
– Perform basic setting of headlights ⇒ "Guided fault-finding"
function of vehicle diagnostic, testing and information system
VAS 5051
Specified torques
Component Specified torque
Bolt on subframe 9 Nm
Nut
♦ Use new nut
9 Nm
Golf 2004 ➤ , Golf Plus 2005 ➤
Running gear, axles, steering - Edition 08.2009
3. Subframe, anti-roll bar, suspension link 15
