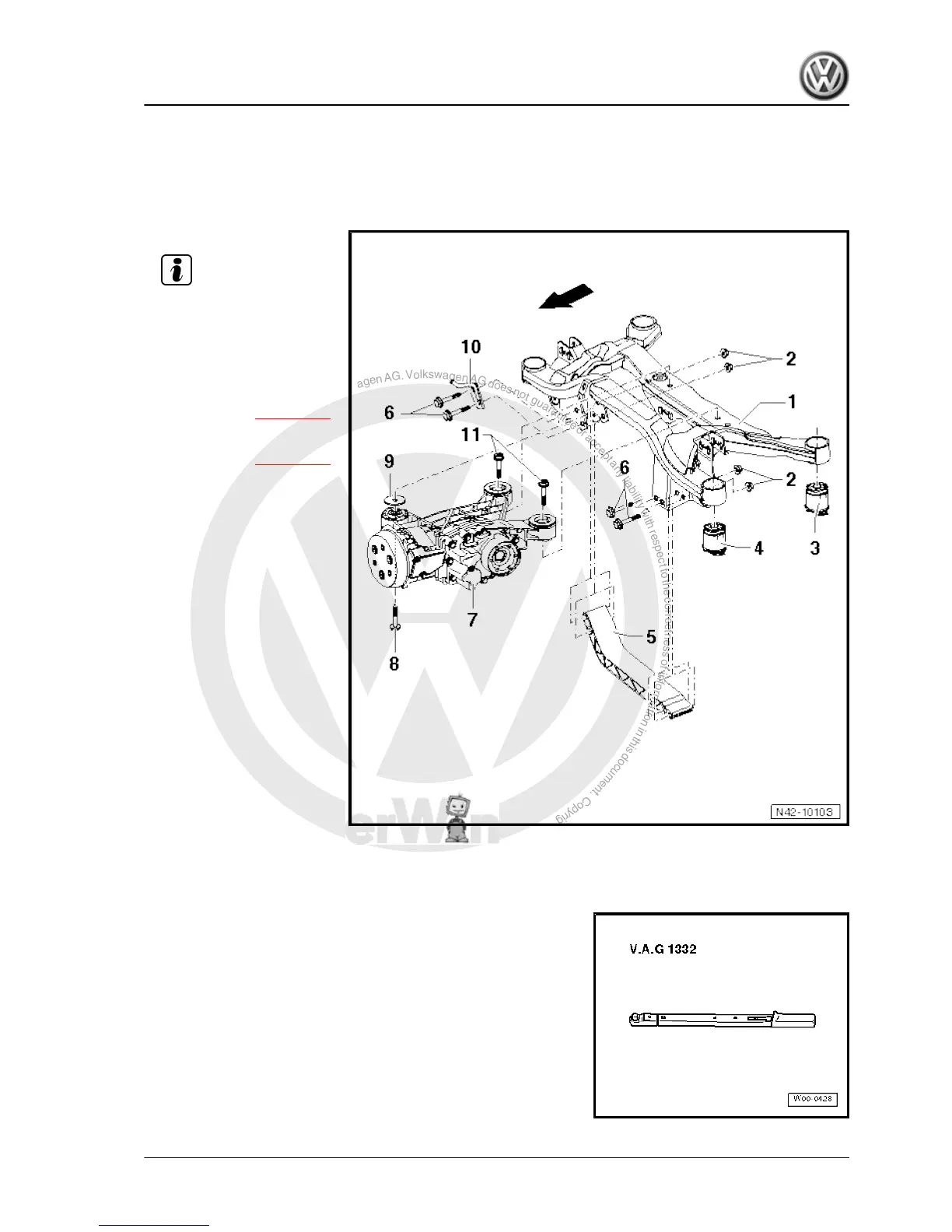

9 Assembly overview - subframe made from aluminium, final drive (four-
wheel drive)
-Arrow- indicates direction of travel.
1 - Subframe
Note
2 - Nut
❑ 50 Nm +180° further
❑ Always renew after re‐
moving
3 - Rear bonded rubber bush
❑ Renewing ⇒ page 195
4 - Front bonded rubber bush
❑ Renewing ⇒ page 195
5 - Cross member
6 - Bolt
7 - Final drive
❑ Removing and installing
⇒ Rep. Gr. 39 ; Remov‐
ing and installing rear fi‐
nal drive
8 - Bolt
❑ M12 x 1.5 x 85
❑ 60 Nm + 90° further
9 - Washer
10 - Bracket
11 - Bolt
❑ M12 x 1.5 x 85
❑ 60 Nm + 90° further
9.1 Removing and installing rear axle
Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1332-
Golf 2004 ➤ , Golf Plus 2005 ➤
Running gear, axles, steering - Edition 08.2009
9. Assembly overview - subframe made from aluminium, final drive (four-wheel drive) 189
