7 Electromechanical steering box after
model year 2009

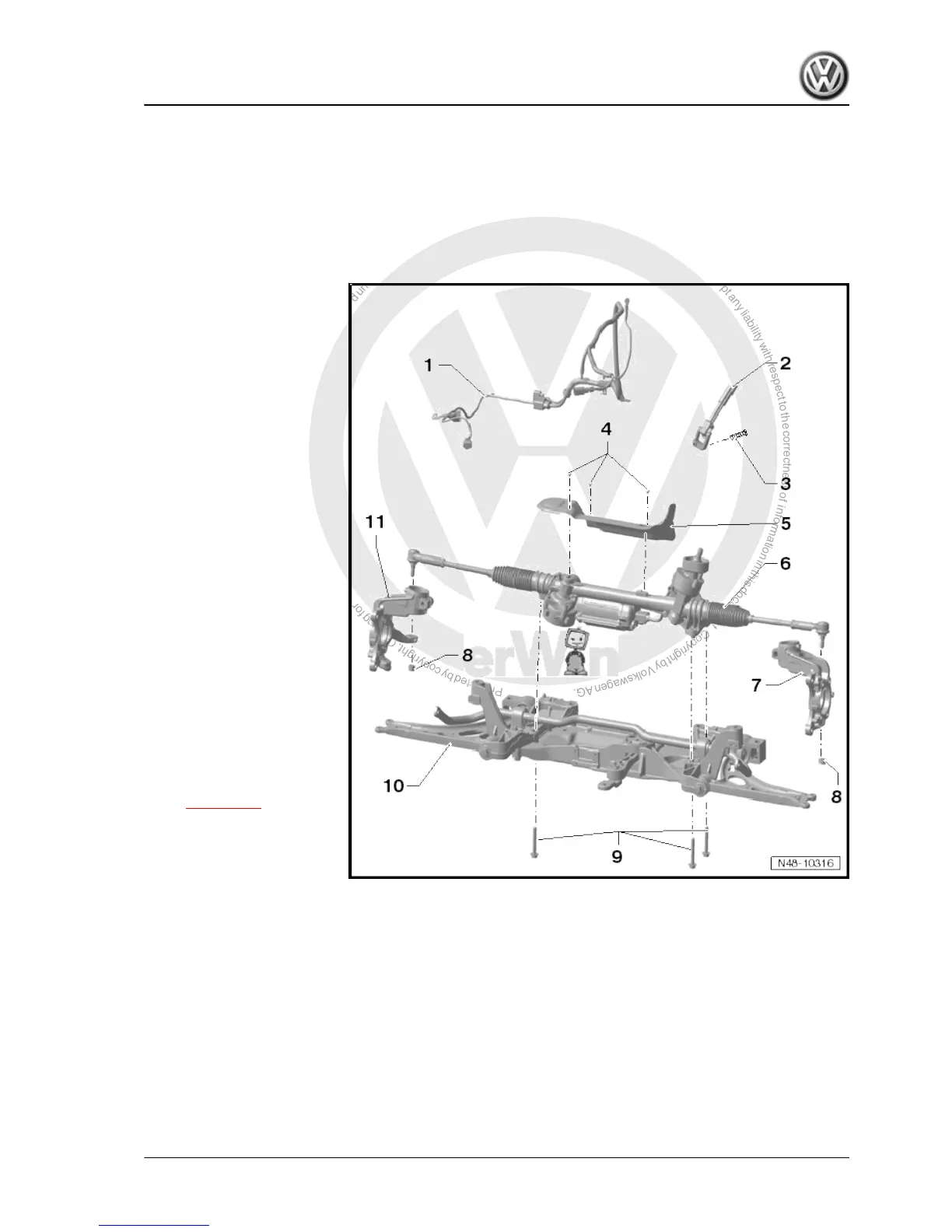

7.1 Assembly overview - electromechanical steering box, left-hand drive (3rd
generation) after model year 2009
1 - Wiring
2 - Universal joint
3 - Bolt
❑ M8 x 35
❑ 30 Nm
❑ Always renew after re‐
moving
4 - Torx bolt
❑ 6 Nm
❑ Self-locking
5 - Shield
6 - Power steering box
❑ With power steering
control unit -J500-
❑ With electromechanical
power steering motor -
V187-
❑ With steering angle
sender -G85-
❑ With steering torque
sender -G269-
❑ Can be checked in gui‐
ded fault finding of the
vehicle diagnosis, test‐
ing and information sys‐
tem -VAS 5051B-
❑ Removing and installing
⇒ page 385
7 - Wheel bearing housing left
8 - Nut
❑ M12 x 1.5
❑ 20 Nm + 90° further
❑ Self-locking
❑ Always renew after removing
9 - Bolt
❑ 50 Nm + 90° further
❑ Always renew after removing
10 - Subframe
11 - Wheel bearing housing right
Golf 2004 ➤ , Golf Plus 2005 ➤
Running gear, axles, steering - Edition 08.2009
7. Electromechanical steering box after model year 2009 383
