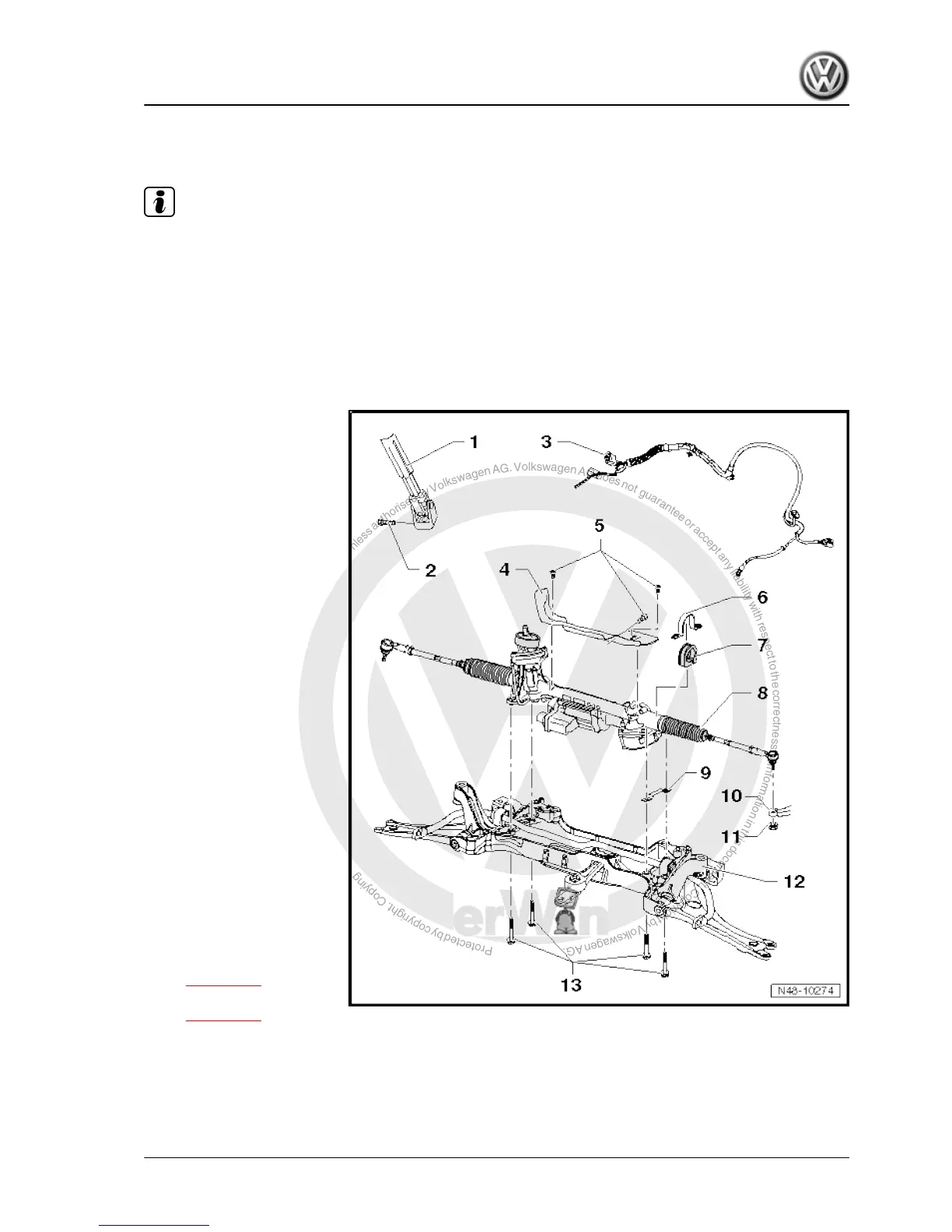

6.2 Assembly overview - electromechanical steering box, right-hand drive (2nd
generation) up to model year 2008
Note
♦ There are no 2nd generation steering boxes available as spare parts.
♦ If the steering box has to be replaced, a new 3rd generation steering box will have to be fitted.
♦ In addition, the electrical wiring harness from the E-box to the steering box will then also have to be renewed.
This is included with the order for the new steering box via the ⇒ Electronic parts catalogue“ETKA” .
♦ The electrical wiring harness will be delivered with the cable for the service interval display.
♦ In vehicles without a service interval display, the unused 3-pin connector must be sealed by a flat contact
housing with connector position assurance -1J0 973 803- ⇒ Electronic parts catalogue“ETKA” .
1 - Universal joint
2 - Bolt
❑ M8 x 35
❑ 30 Nm
❑ Always renew after re‐
moving
3 - Wiring
4 - Shield
5 - Torx bolt
❑ 6 Nm
❑ Self-locking
6 - Clamp
❑ Always renew after re‐
moving
7 - Rubber mounting
8 - Power steering box
❑ With power steering
control unit -J500-
❑ With electromechanical
power steering motor -
V187-
❑ With steering torque
sender -G269-
❑ Can be checked in gui‐
ded fault finding of the
vehicle diagnosis, test‐
ing and information sys‐
tem -VAS 5051B-
❑ Removing and installing
⇒ page 374
❑ Observe notes
⇒ page 365 .
9 - Connecting piece
10 - Wheel bearing housing
11 - Nut
❑ M12 x 1.5
❑ 50 Nm
Golf 2004 ➤ , Golf Plus 2005 ➤
Running gear, axles, steering - Edition 08.2009
6. Electromechanical steering box up to model year 2008 365
