13 - Clamp
❑ Always renew after removing
❑ Tightening ⇒ page 119
14 - Constant velocity slip joint
❑ Renew only complete
❑ Removing ⇒ page 118
❑ Installing: drive onto shaft to stop using a plastic mallet
10.1 Dismantling and assembling drive shaft
with VL107 (push-on) constant velocity
slip joint

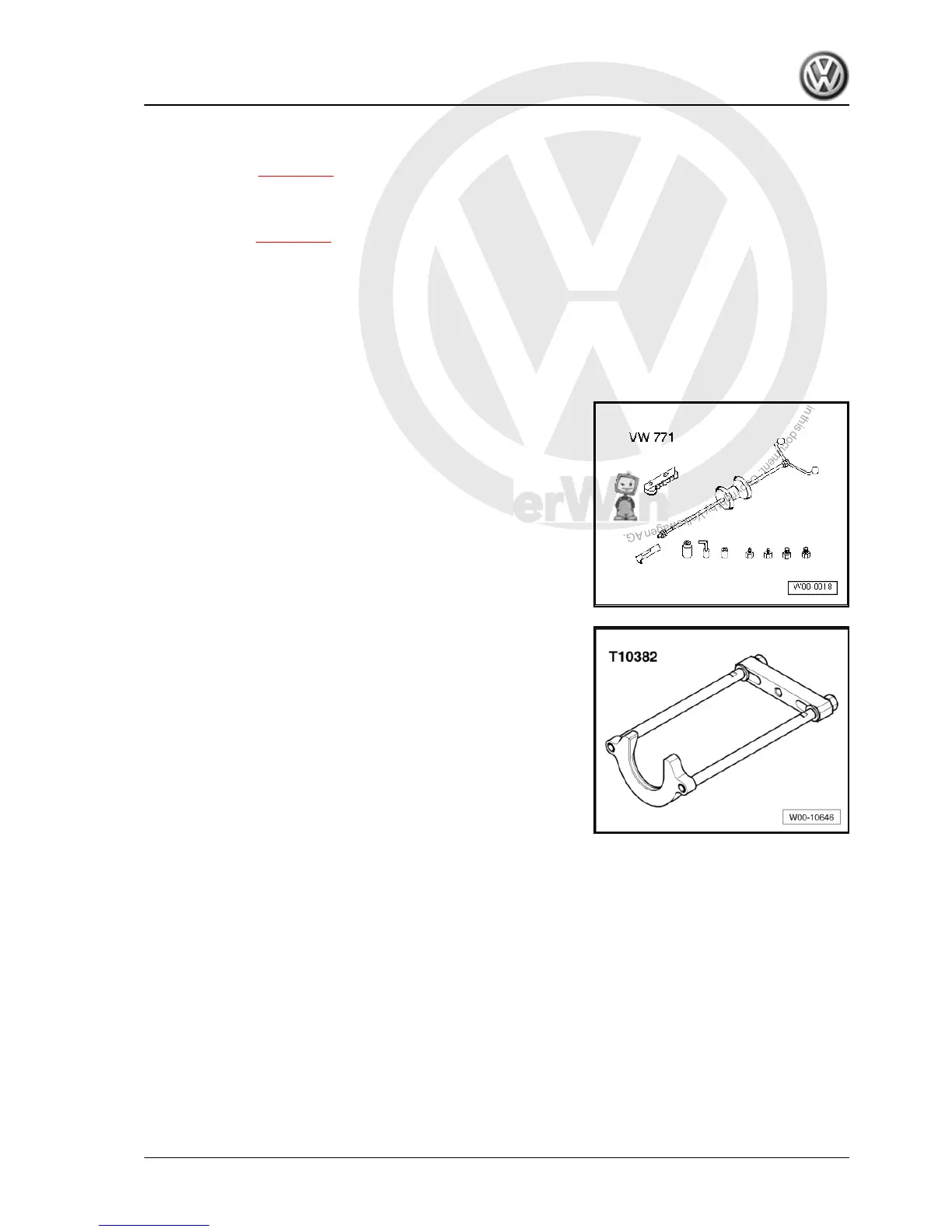

Special tools and workshop equipment required
♦ Multi-purpose tool -VW 771-
♦ Puller -T10382-
Removing outer constant velocity joint
– Clamp drive shaft in vice using protective jaw covers.
– Fold back boot.
– Set puller -T10382- up so that smooth side of puller plate -
T10382/1- points to spindles -T10382/2- .
– Assemble puller -T10382- complete with multi-purpose tool -
VW 771- .
Golf 2004 ➤ , Golf Plus 2005 ➤
Running gear, axles, steering - Edition 08.2009
10. Assembly overview - drive shaft with VL107 constant velocity slip joint (push-on) 117
