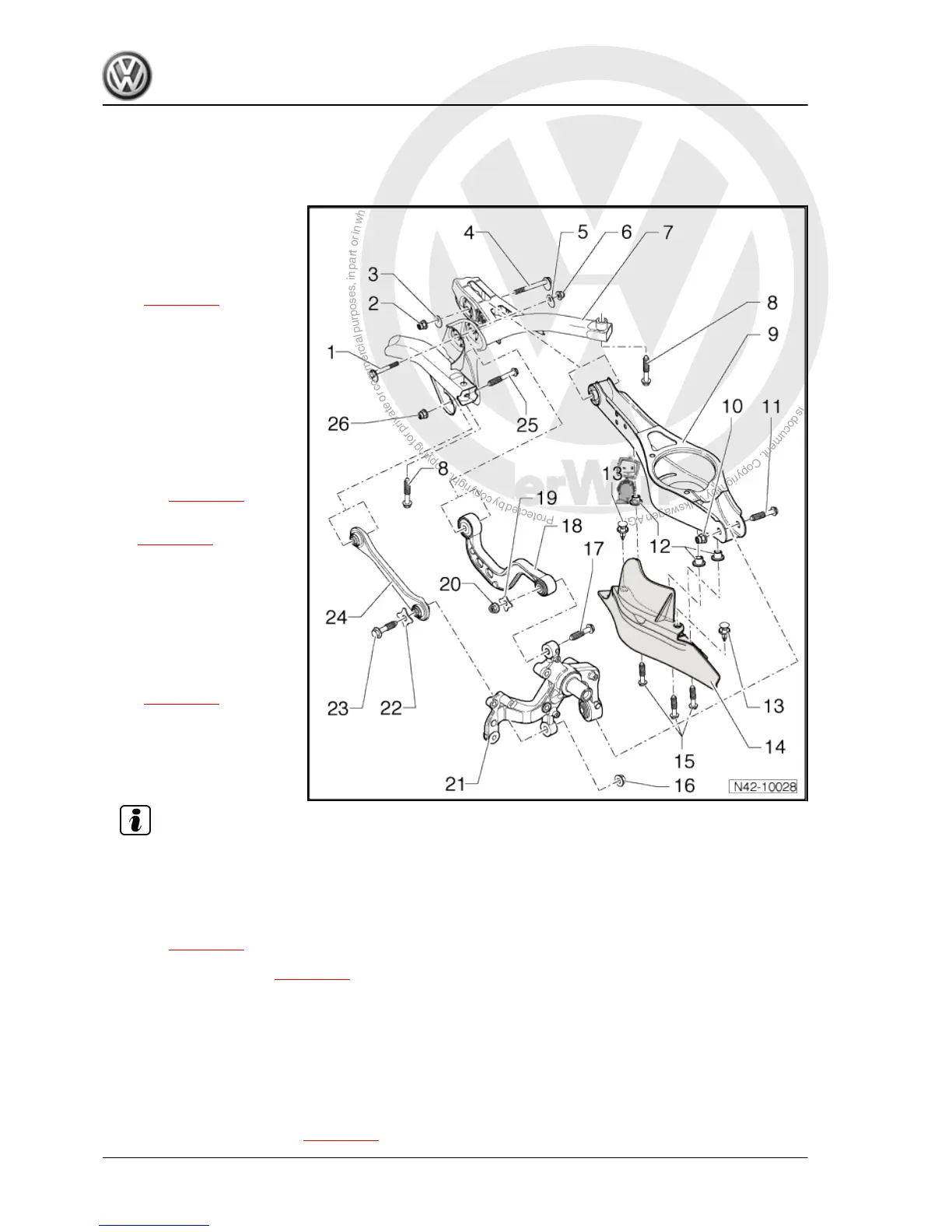

3 Assembly overview: subframe, transverse link, track rod (front-wheel
drive)
1 - Eccentric bolt
❑ For camber adjustment
❑ Check wheel alignment
whenever this compo‐
nent is loosened
⇒ page 305 .
2 - Nut
❑ M12 x 1.5
❑ 95 Nm
❑ Self-locking
❑ Always renew after re‐
moving
❑ Always tighten threaded
connections in unladen
position:
Golf ⇒ page 136
Golf Plus, CrossGolf
⇒ page 138
3 - Eccentric washer
❑ Inner hole with lug
4 - Eccentric bolt
❑ For track adjustment
❑ Check wheel alignment
whenever this compo‐
nent is loosened
⇒ page 305 .
5 - Eccentric washer
❑ Inner hole with lug
6 - Nut
❑ 95 Nm
Note
❑ M12 x 1.5
❑ Self-locking
❑ Always renew after removing
❑ Always tighten threaded connections in unladen position:
Golf ⇒ page 136
Golf Plus, CrossGolf ⇒ page 138
7 - Subframe
8 - Bolt
❑ M12 x 1.5 x 90
❑ 90 Nm + 90° further
❑ Always renew after removing
9 - Lower transverse link
❑ Removing and installing ⇒ page 151
Golf 2004 ➤ , Golf Plus 2005 ➤
Running gear, axles, steering - Edition 08.2009
140 Rep. Gr.42 - Rear suspension
