3.2 Vehicle level sender for vehicles with automatic headlight range control
Note
♦ The vehicle level sender is available as a replacement part only complete with coupling rod and upper and
lower retaining plates.
♦ Renewing without removing subframe ⇒ page 148 .
♦ Control unit for headlight range control -J431- .

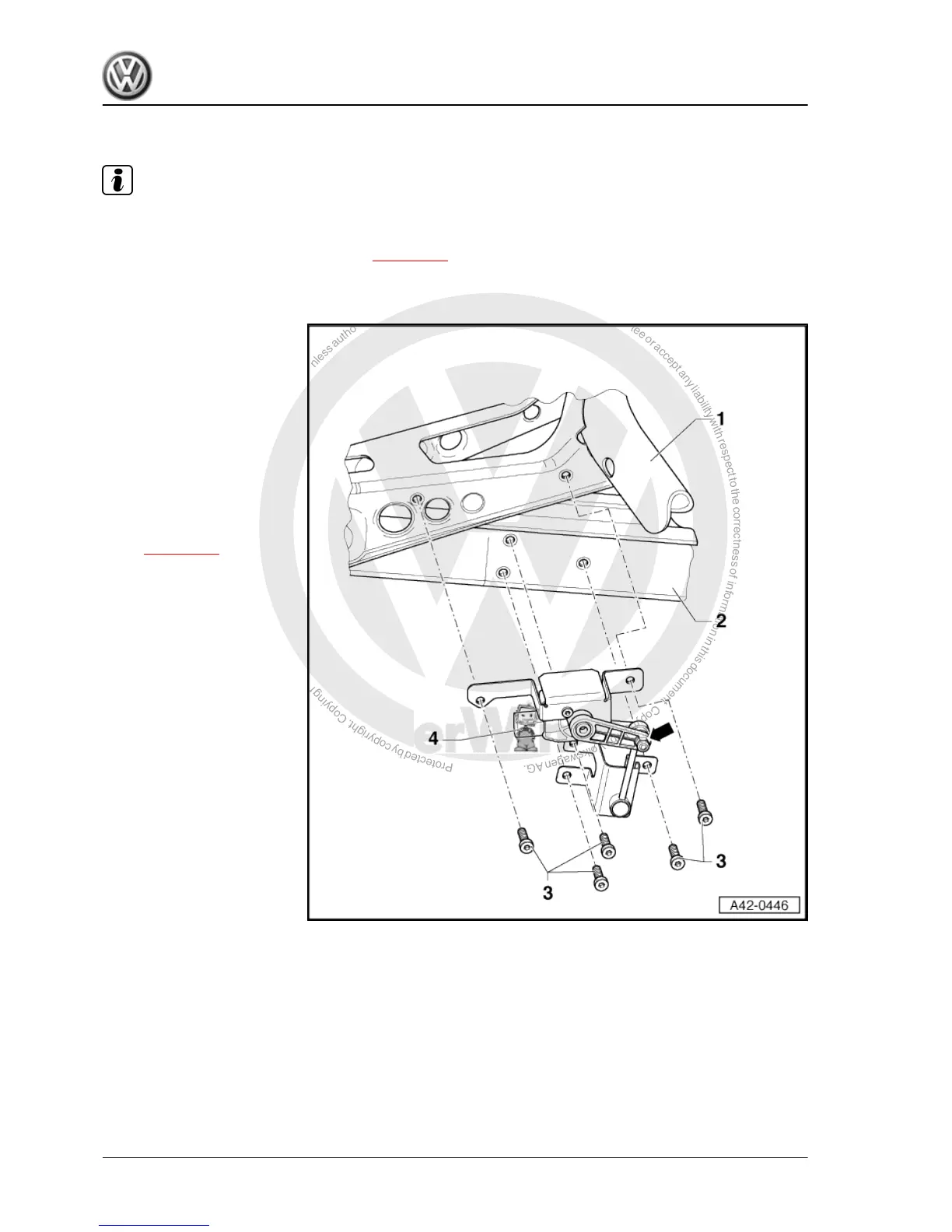

1 - Subframe
2 - Lower transverse link
3 - Bolt
❑ 5 Nm
4 - Rear left vehicle level send‐
er -G76-
❑ Complete with attach‐
ments
❑ Lever -arrow- must face
outwards
❑ Renewing in vehicle
⇒ page 148
❑ Allocation ⇒ Electronic
parts catalogue “ETKA”
❑ Following renewal, ba‐
sic settings for headlight
must be performed.
Perform basic settings of
headlights using ⇒ Vehicle di‐
agnosis, testing and informa‐
tion system VAS 5051.
3.3 Renew vehicle level sender in vehicle
Special tools and workshop equipment required
Golf 2004 ➤ , Golf Plus 2005 ➤
Running gear, axles, steering - Edition 08.2009
148 Rep. Gr.42 - Rear suspension
