Bolt Specified torque
M10 x 75 strength class 8.8
♦ Use new bolt
40 Nm + 90° further
M10 x 75 strength class 10.9
♦ Use new bolt
50 Nm + 90° further
3.9 Repairing subframe (front-wheel drive)

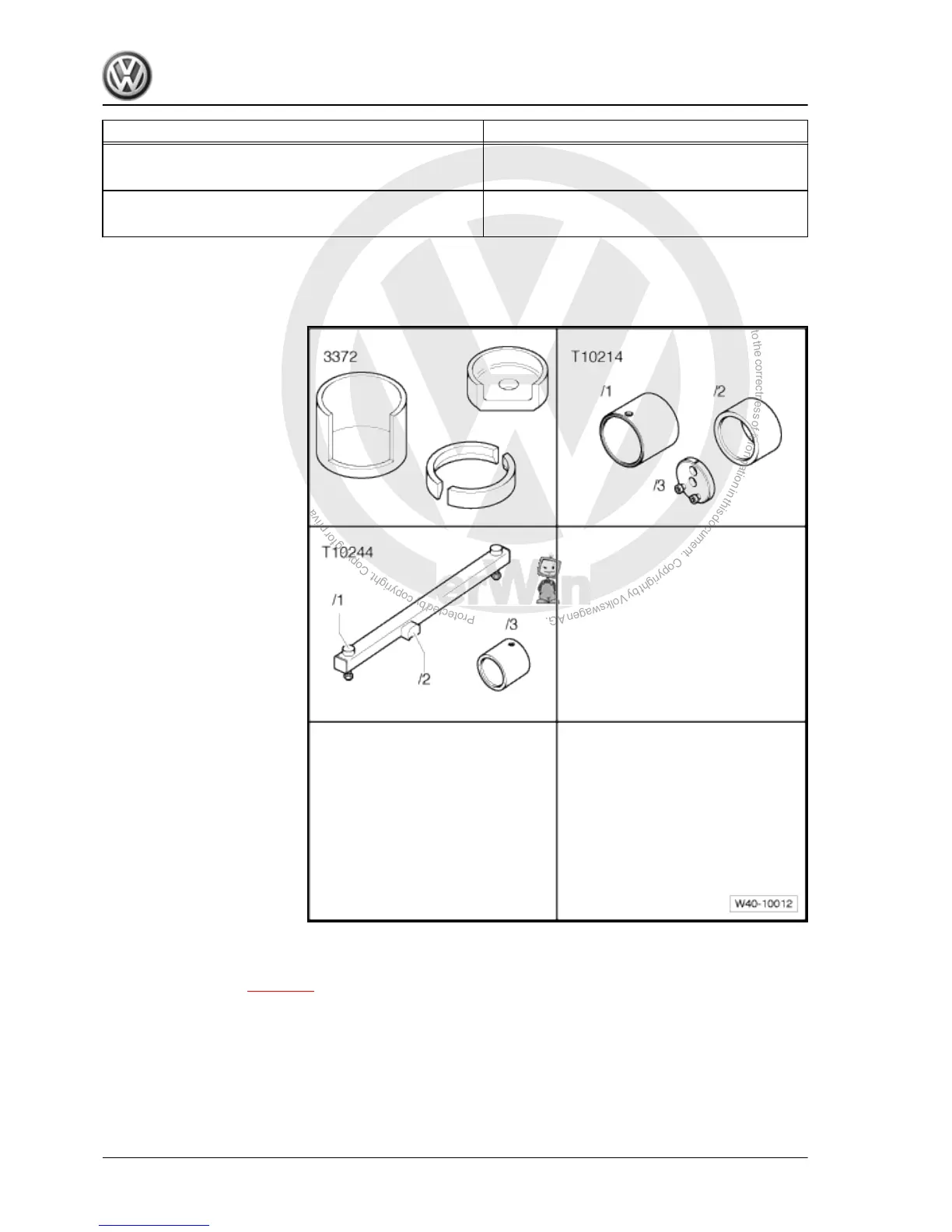

Special tools and workshop
equipment required
♦ Removal tool -3372-
♦ Assembly tool -T10214-
♦ Assembly tool -T10244-
Pressing out bonded rubber bush
– Remove subframe ⇒ page 21 .
– Attach assembly tool -T10244- to subframe.
Golf 2004 ➤ , Golf Plus 2005 ➤
Running gear, axles, steering - Edition 08.2009
28 Rep. Gr.40 - Front suspension
