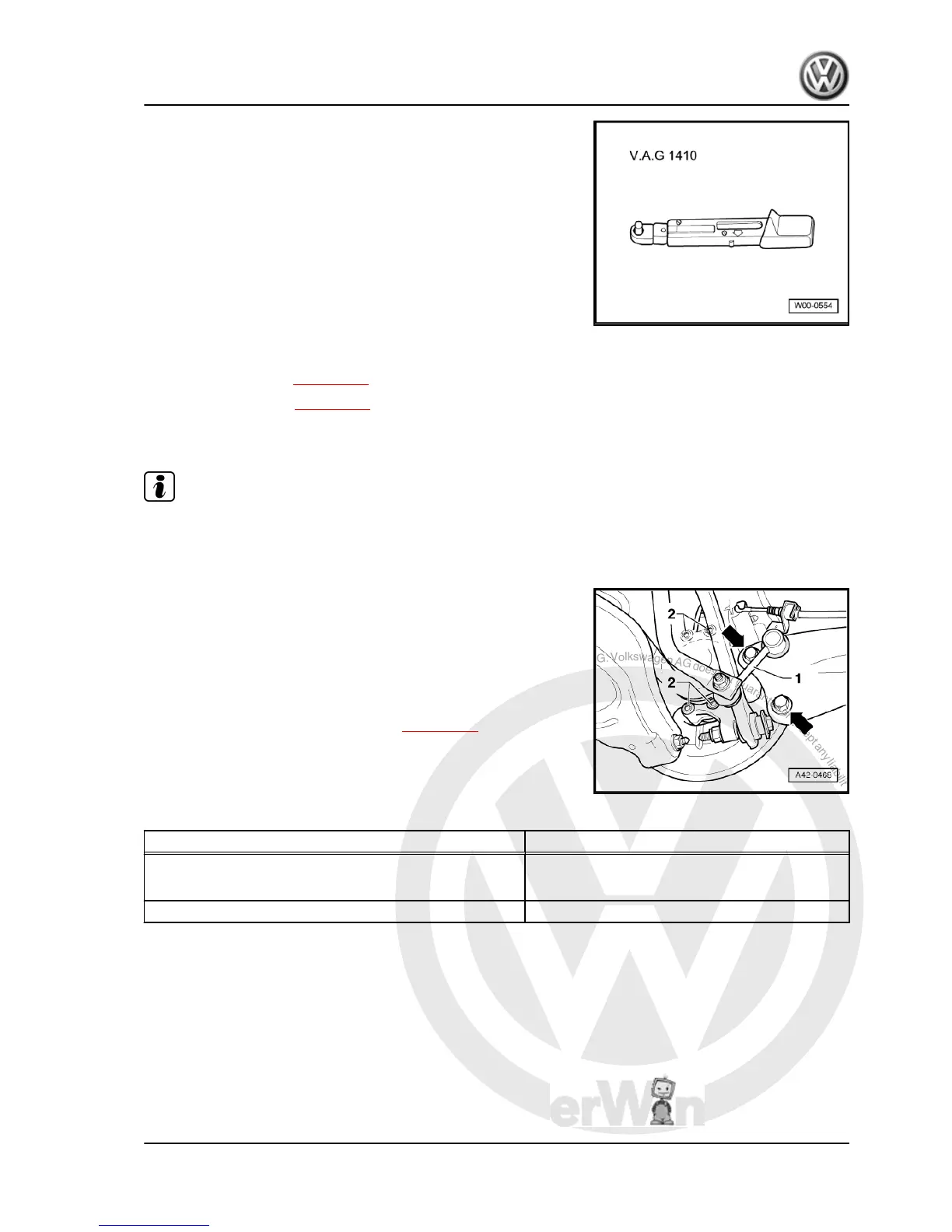

♦ Torque wrench -V.A.G 1410-
Removing
– Remove coil spring ⇒ page 257 .
– Remove drive shaft ⇒ page 276 .
– Remove brake carrier with brake caliper and tie to body with
wire ⇒ Rep. Gr. 46 .
Note
Do not suspend the brake caliper from the brake hose.
– Remove cross-head screw for brake disc and remove brake
disc.
– Remove bolts -2-.
– Pull wheel hub/wheel bearing unit out from wheel bearing
housing.
Installing
Carry out installation in the reverse sequence, noting the follow‐
ing:
– Use a new hexagon bolt and tighten ⇒ page 274 .
Specified torques
Component Specified torque
Wheel hub with wheel bearing to wheel bearing housing
♦ Use new bolt
70 Nm + 90°
Brake disc to wheel bearing housing. 4 Nm
13.5 Removing and installing trailing arm with
mounting bracket
Special tools and workshop equipment required
Golf 2004 ➤ , Golf Plus 2005 ➤
Running gear, axles, steering - Edition 08.2009
13. Assembly overview - wheel bearing housing, trailing link (four-wheel drive, subframe made from aluminium and wheel bearing housing
made from cast steel) 243
