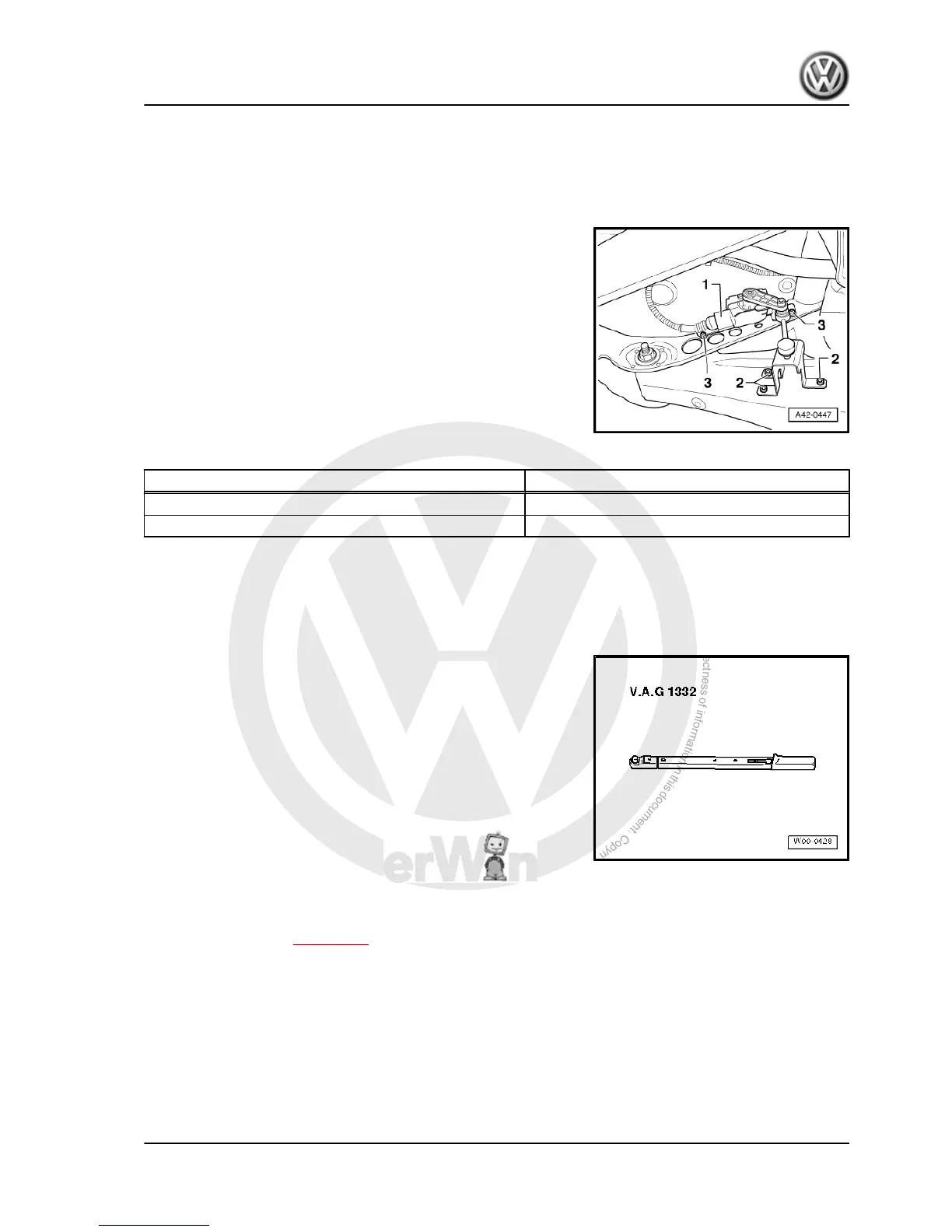

11.2 Renew vehicle level sender in vehicle
Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1331-
Removing
– Separate connection -1-.
– Remove bolts -2- and -3-.
– Take out sender.
Installing
Install in reverse order. Note the following points:
Lever on sender must face outwards.
– Perform basic setting of headlights following replacement.
Specified torques
Component Specified torque
Rear left vehicle level sender -G76- to subframe 5 Nm
Rear left vehicle level sender -G76- to lower transverse link 5 Nm
11.3 Removing and installing upper trans‐
verse link
Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1332-
Removing
– Remove wheel.
– Remove coil spring ⇒ page 257 .
Golf 2004 ➤ , Golf Plus 2005 ➤
Running gear, axles, steering - Edition 08.2009
11. Assembly overview - control arm, track rod (four-wheel drive, subframe made from aluminium and wheel bearing housing made from
cast steel) 215
