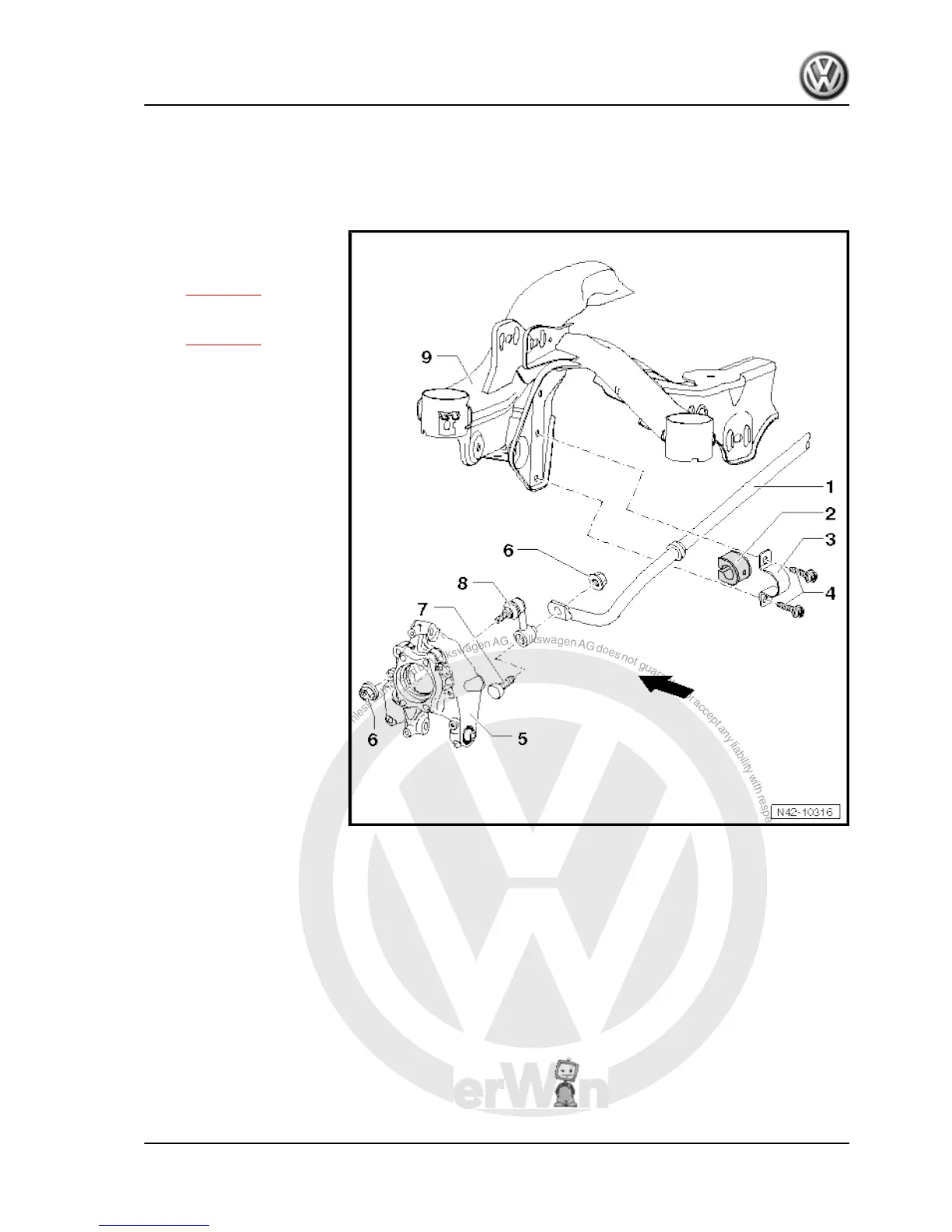

18 Assembly overview - anti-roll bar (four-wheel drive, subframe made
from steel and wheel bearing housing made from aluminium)
-Arrow- indicates direction of travel.
1 - Anti-roll bar
❑ Note different running
gear versions; see
⇒ page 317 , vehicle
data sticker
❑ Removing and installing
⇒ page 269
2 - Bearing
❑ Always renew mount‐
ings on both sides of the
vehicle.
3 - Clamp
4 - Multi-point socket head bolt
❑ M8 x 28
❑ 25 Nm + 45° further
❑ Renew each time after
removing
5 - Wheel bearing housing
6 - Nut
❑ M10 x 55
❑ 45 Nm
❑ Self-locking
❑ Renew each time after
removing
7 - Multi-point socket head bolt
❑ Renew each time after
removing
8 - Coupling rod
❑ Connects anti-roll bar to
trailing arm and wheel
bearing housing
9 - Subframe
18.1 Removing and installing anti-roll bar
Special tools and workshop equipment required
Golf 2004 ➤ , Golf Plus 2005 ➤
Running gear, axles, steering - Edition 08.2009
18. Assembly overview - anti-roll bar (four-wheel drive, subframe made from steel and wheel bearing housing made from aluminium)
269
