Direct Shift (DSG)

Trans. – 02E

VW Golf & GTI Quick Reference Specication Book • September 2012 139

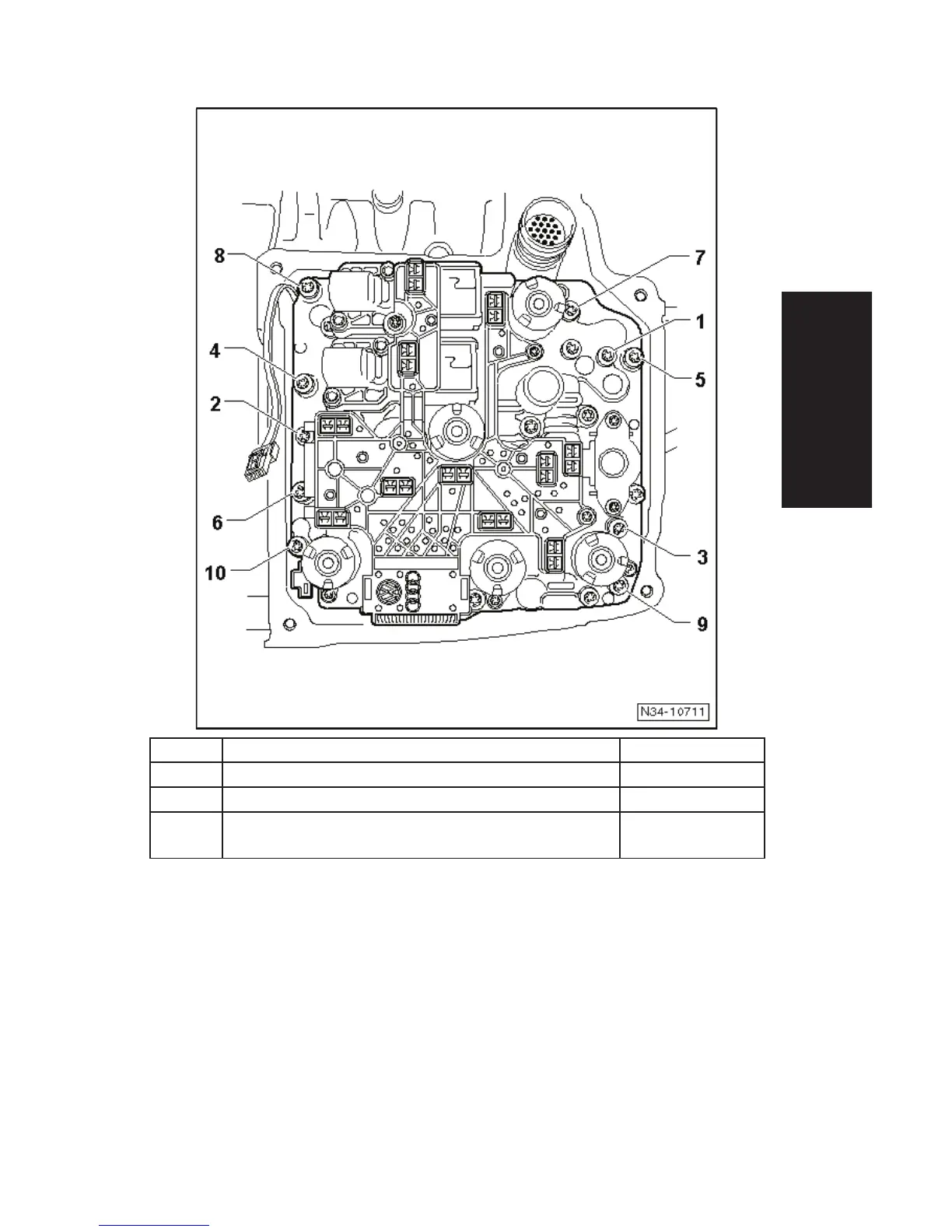

Mechatronic Tightening Specications

Step Component Nm

1 Tighten bolts 1 through 10 in sequence

Hand-tighten

2 Tighten bolts 1 through 10 in sequence 5

3 Tighten bolts 1 through 10 in sequence an additional

90° (¼ turn)

1) Replace fastener(s).
