56 VW Golf & GTI Quick Reference Specication Book • September 2012

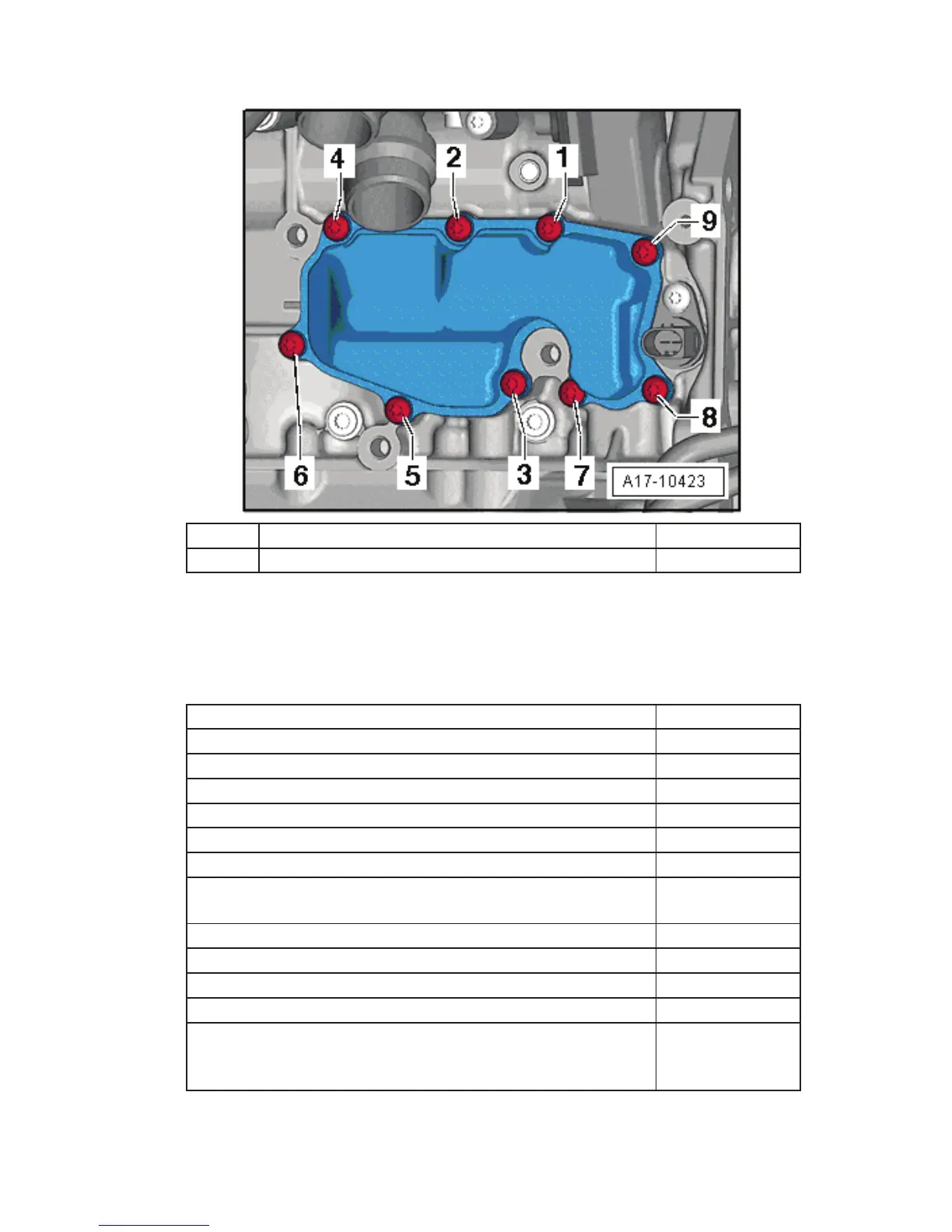

Oil Separator Tightening Speciîš¿cation
Step Component Nm
1 Tighten bolts 1 through 9 in sequence 9
Cooling System – 2.0L CBFA, CCTA
Fastener Tightening Speciîš¿cations
Component Nm
After run coolant pump bracket bolt 8
After run coolant pump bracket-to-upper oil pan bolt 40
Coolant expansion tank bolt 5
Coolant fan shroud nut 10
Coolant pump connecting piece bolt 9
Coolant pump toothed belt guard bolt 9
Engine coolant temperature sensor retaining plate to
coolant pump bolt
4
Front coolant pipe bolt 3.5
Radiator fan shroud bolt 5
Radiator-to-charge air pipe bolt
3)
5
Small coolant pipe bolt 9
Toothed belt drive gear-to-balance shaft bolt
1) 2)
10 plus an
additional 90°
(¼ turn)
1)
Replace fastener(s).
2)
Has left hand threads.
3)
Eos, GTI, Passat and CC only.
