44 VW Golf & GTI Quick Reference Specication Book • September 2012

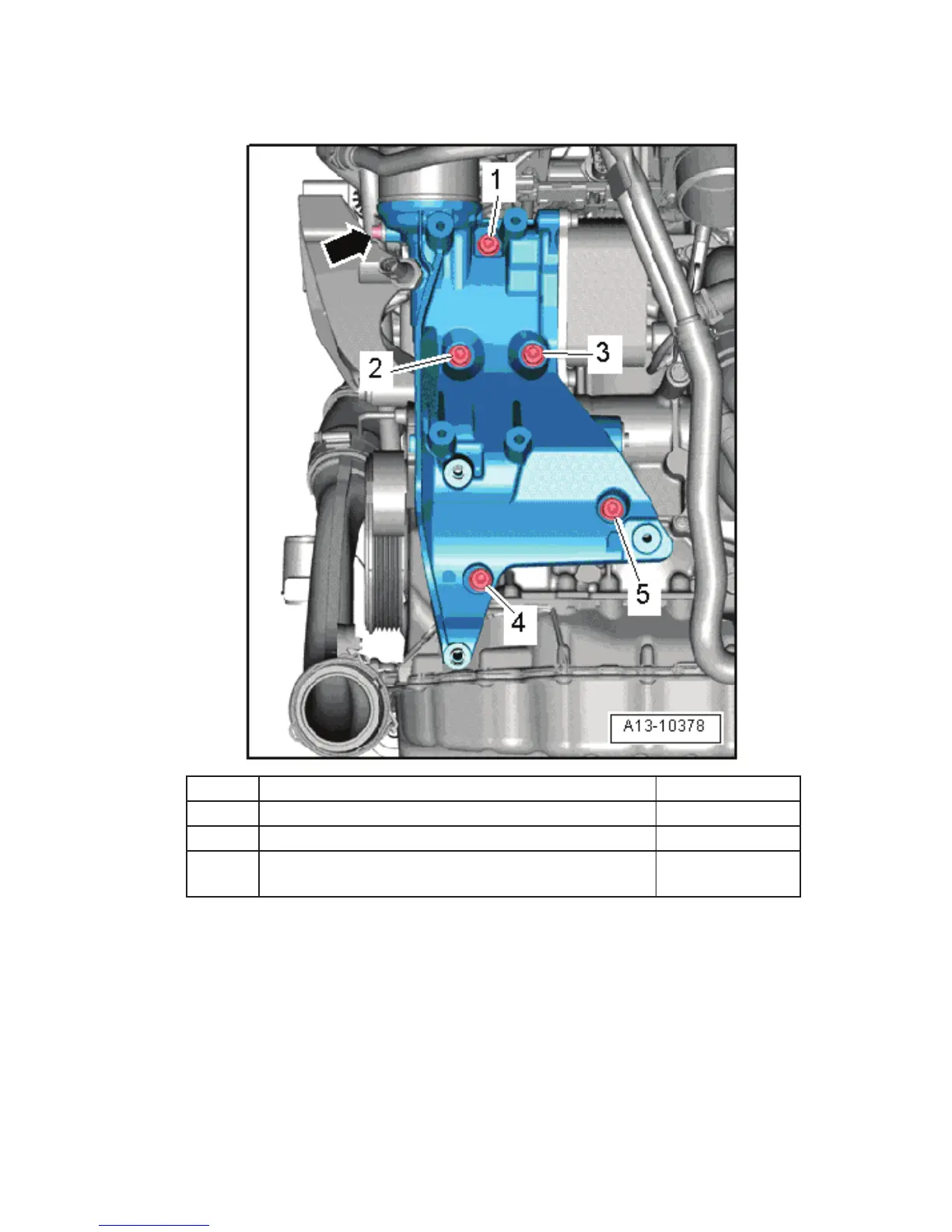

Accessory Assembly Bracket

Tightening Specications

Step Component Nm

1 Tighten bolts 1 through 5 in sequence Hand-tighten

2 Tighten bolts 1 through 5 in sequence 20

3 Tighten bolts 1 through 5 in sequence an additional

90° (¼ turn)
