Engine –

2.0L CBFA, CCTA

VW Golf & GTI Quick Reference Specication Book • September 2012 39

Crankshaft, Cylinder Block – 2.0L CBFA,

CCTA

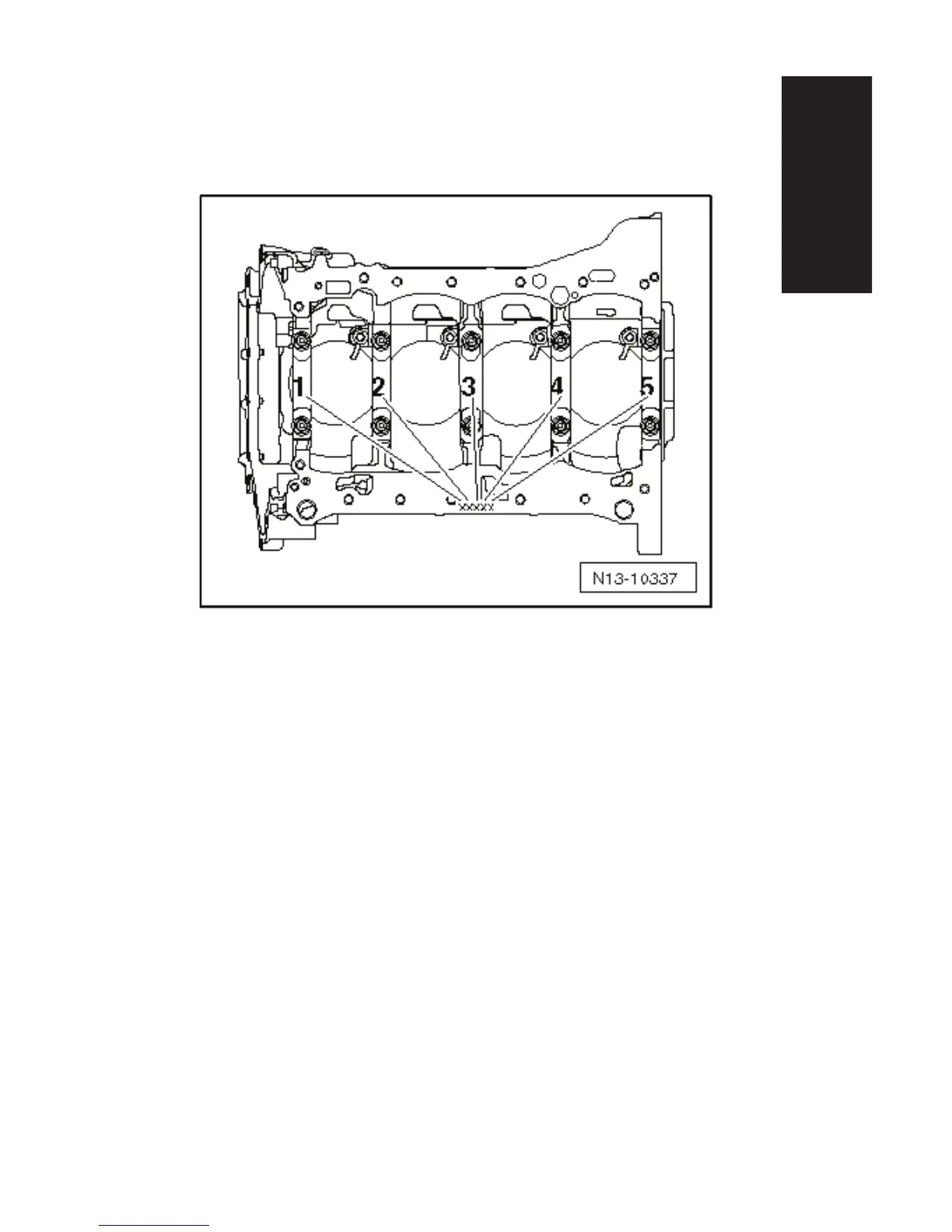

Cylinder Block Bearing Shell Identication

The cylinder block bearing shell identication is

located on either the oil pan sealing surface or on the

top (transmission side) of the cylinder block.
