Engine –

2.0L CBFA, CCTA

VW Golf & GTI Quick Reference Specication Book • September 2012 41

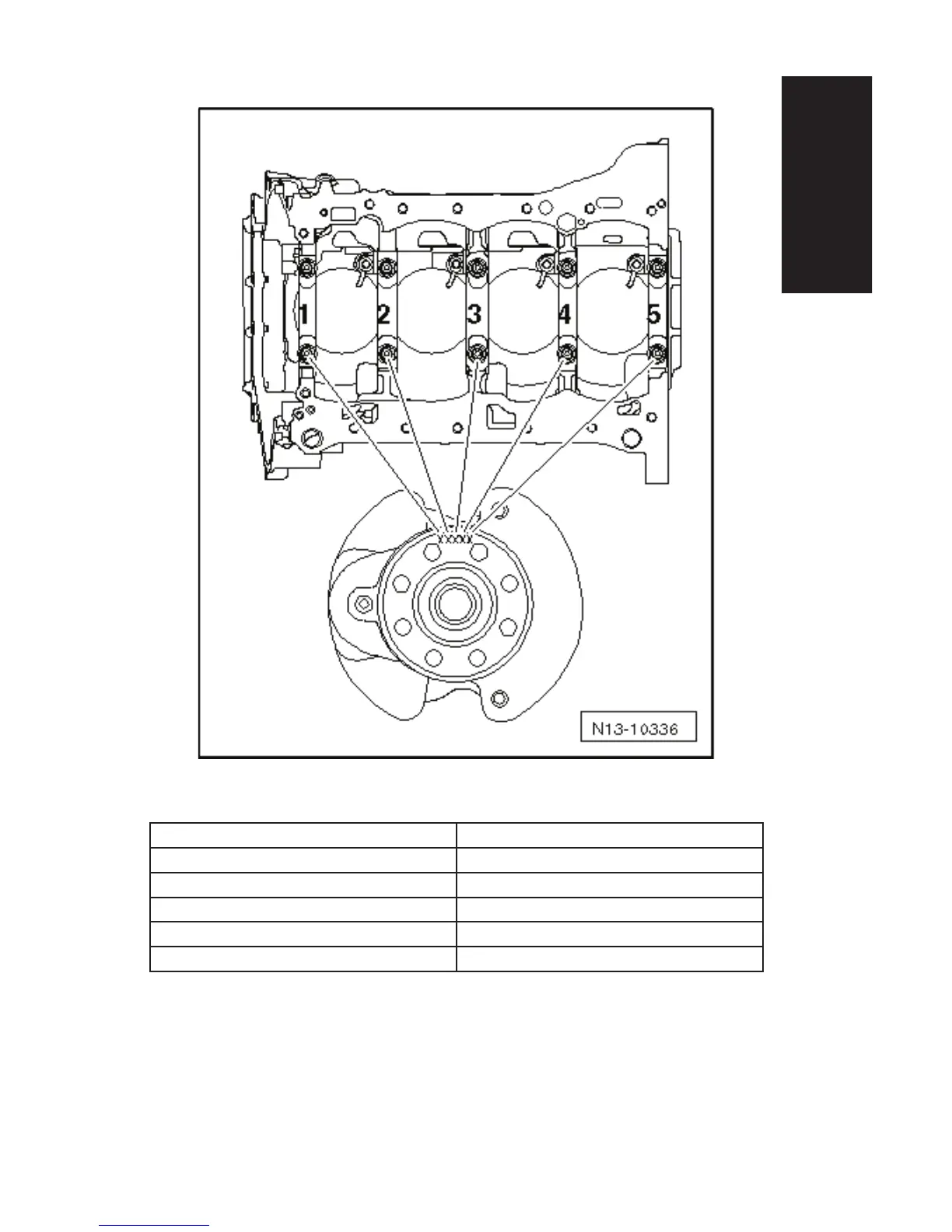

Bearing Cap Bearing Shell Identication

The identication on the crankshaft is for the lower bearing shell.

Note the letter and match it to the color identication in the table.

Letter on crankshaft Color of bearing

S Black

R Red

G Yellow

B Blue

W White
