140 VW Golf & GTI Quick Reference Specication Book • September 2012

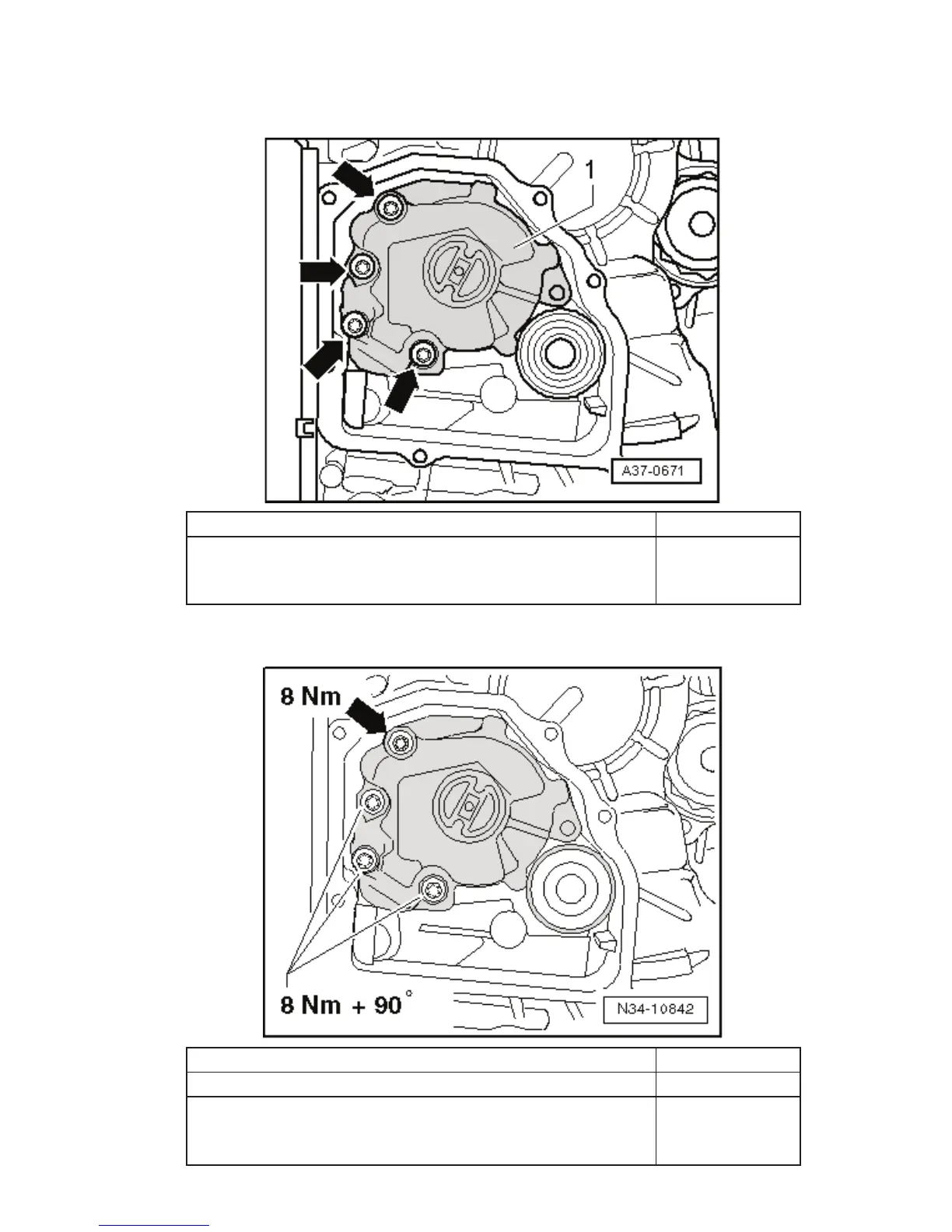

Oil Pump Tightening Specications

Without Countersunk Bolt

Component Nm

Oil pump bolts (Æ) with at heads

5 plus an

additional 90°

(¼ turn)

With Countersunk Bolt

Component Nm

Oil pump countersunk bolt 8

3 remaining oil pump bolts 8 plus an

additional 90°

(¼ turn)
