Direct Shift (DSG)

Trans. – 02E

VW Golf & GTI Quick Reference Specication Book • September 2012 141

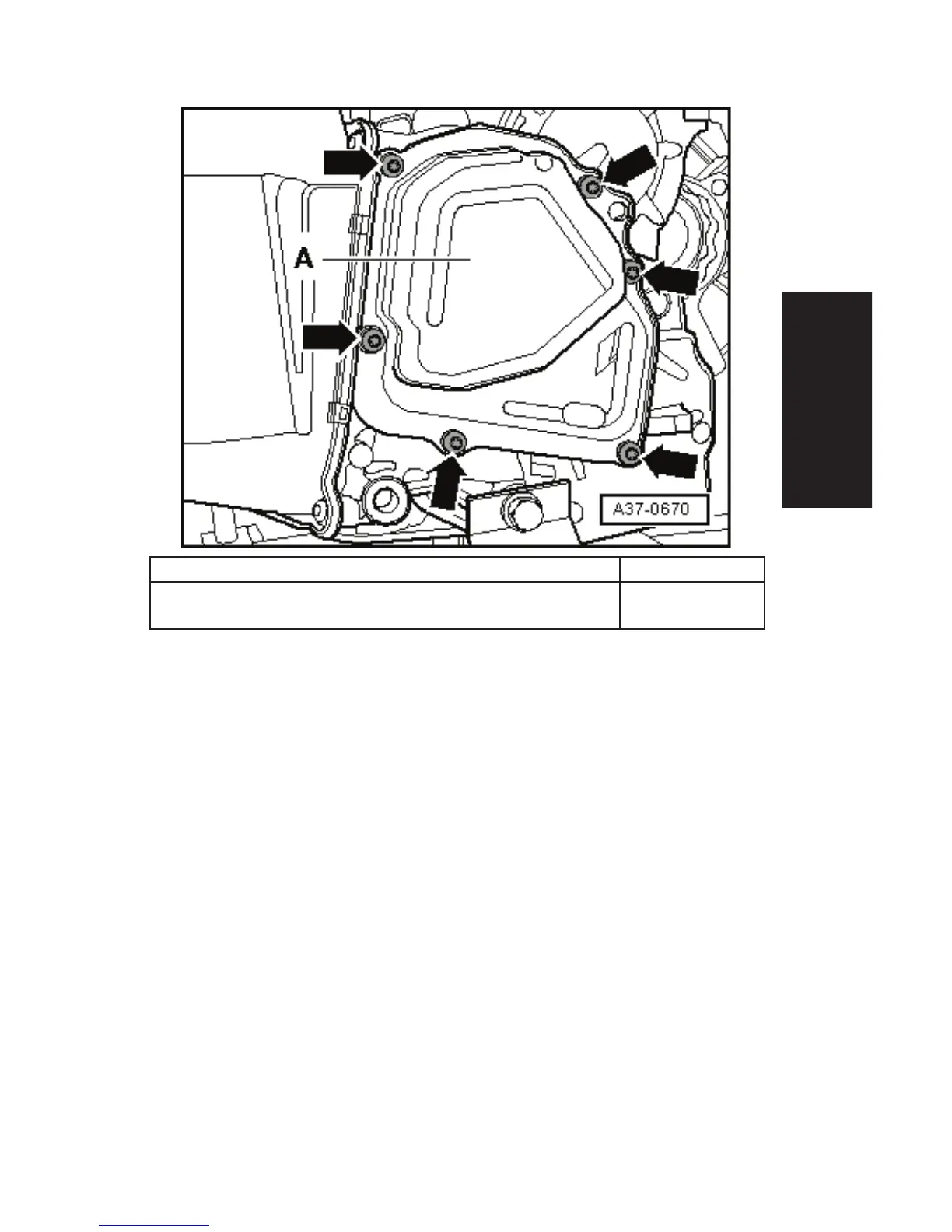

Oil Pump Cover Tightening Specications

Component Nm

Tighten bolts (Æ) in several steps in a diagonal

sequence

Replace fastener(s).

Default Chapter3
- Table of Contents3
General Information13
- Decimal and Metric Equivalents13
- Tightening Torque14
- Warnings and Cautions16
Vehicle Identification21
- Vehicle Identification Number (VIN) Location21
- VIN Decoder22
- VIN on Longitudinal Member Extension23
- Vehicle Data Label24
Sales Codes25
- Engine Codes25
- Transmission Codes25
Vehicle Lifting26
- Hoist and Jack Mounting Points26
  - Front26
  - Rear27
Engine Mechanical - 2.0L CJAA (TDI)28
- General, Technical Data28
  - Engine Number Location28
  - Engine Data29
- Engine Assembly - 2.0L CJAA (TDI)30
- Crankshaft, Cylinder Block - 2.0L CJAA (TDI)34
- Cylinder Head, Valvetrain - 2.0L CJAA (TDI)38
- Lubrication - 2.0L CJAA (TDI)43
  - Fastener Tightening Specifications43
- Cooling System - 2.0L CJAA (TDI)44
  - Fastener Tightening Specifications44
- Fuel Supply - 2.0L CJAA (TDI)44
- Turbocharger - 2.0L CJAA (TDI)45
  - Fastener Tightening Specifications45
- Exhaust System - 2.0L CJAA (TDI)45
- Ignition/Glow Plug System - 2.0L CJAA (TDI)47
  - Fastener Tightening Specifications47
- Diesel Fuel Injection - 2.0L CJAA (TDI)47
Engine Mechanical - 2.0L Cbfa, Ccta48
- General, Technical Data48
  - Engine Number Location48
  - Engine Data49
- Engine Assembly - 2.0L CBFA, CCTA50
  - Fastener Tightening Specifications50
- Crankshaft, Cylinder Block - 2.0L CBFA, CCTA51
- Lubrication - 2.0L CBFA, CCTA66
- Cooling System - 2.0L CBFA, CCTA68
  - Fastener Tightening Specifications68
  - Coolant Pump Tightening Specification69
- Fuel Supply - 2.0L CBFA, CCTA69
  - Fastener Tightening Specifications69
- Turbocharger, G-Charger - 2.0L CBFA, CCTA70
  - Fastener Tightening Specifications70
  - Turbocharger Tightening Specifications71
- Exhaust System - 2.0L CBFA, CCTA72
  - Fastener Tightening Specifications72
- Multiport Fuel Injection - 2.0L CBFA, CCTA72
  - Technical Data72
  - Fastener Tightening Specifications73
- Ignition - 2.0L CBFA, CCTA74
  - Technical Data74
  - Fastener Tightening Specifications74
Engine Mechanical - 2.0L Crza75
- General, Technical Data75
  - Engine Number Location75
  - Engine Data76
- Engine Assembly - 2.0L CRZA77
- Cylinder Head, Valvetrain - 2.0L CRZA85
- Lubrication - 2.0L CRZA89
  - Fastener Tightening Specifications89
  - Oil Pan Tightening Specifications90
- Cooling System - 2.0L CRZA91
  - Fastener Tightening Specifications91
- Fuel Supply - 2.0L CRZA91
- Turbocharger, G-Charger - 2.0L CRZA92
  - Fastener Tightening Specifications92
- Exhaust System - 2.0L CRZA93
  - Fastener Tightening Specifications93
- Multiport Fuel Injection - 2.0L CRZA93
  - Technical Data93
  - Fastener Tightening Specifications94
- Ignition - 2.0L CRZA95
  - Technical Data95
  - Fastener Tightening Specifications95
Engine Mechanical - 2.5L CBTA, CBUA96
- General, Technical Data96
- Crankshaft, Cylinder Block - 2.5L CBTA, CBUA102
- Cylinder Head, Valvetrain - 2.5L CBTA, CBUA107
- Lubrication - 2.5L CBTA, CBUA112
  - Fastener Tightening Specifications112
- Cooling System - 2.5L CBTA, CBUA113
  - Fastener Tightening Specifications113
- Fuel Supply - 2.5L CBTA, CBUA113
- Exhaust System, Emission Controls - 2.5L CBTA, CBUA114
  - Fastener Tightening Specifications114
  - Secondary Air Injection Pipe Tightening Specifications115
- Multiport Fuel Injection - 2.5L CBTA, CBUA116
  - Fastener Tightening Specifications116
  - Lower Air Filter Housing Bolt Tightening Specifications116
- Ignition - 2.5L CBTA, CBUA117
Manual Transmission - 0A4118
- Clutch - 0A4121
  - Fastener Tightening Specifications121
- Controls, Housing - 0A4122
- Gears, Shafts - 0A4128
Manual Transmission - 02Q130
- General, Technical Data130
  - Transmission Identification130
  - Codes Letters, Transmission Allocation and Capacities132
- Clutch - 02Q133
  - Fastener Tightening Specifications133
- Controls, Housing - 02Q134
- Rear Final Drive, Differential - 02Q136
Automatic Transmission - 09G141
- General, Technical Data141
- Identification on Transmission141
- Code Letters, Assembly Allocation and Ratios142
- Controls, Housing143
- Fastener Tightening Specifications143
- Transmission to Engine Tightening Specifications144
- Gears, Hydraulic Controls - 09G145
  - Fastener Tightening Specifications145
  - Transmission Fluid Pan Tightening Specification146
Direct Shift Gearbox (DSG) Transmission - 02E147
- General, Technical Data147
  - Identification on Transmission147
  - Transmission Allocation Codes149
- Controls, Housing (DSG) - 02E150
Suspension, Wheels, Steering156
- Front Suspension156
  - Fastener Tightening Specifications156
- Rear Suspension158
  - Fastener Tightening Specifications158
- Self-Leveling Suspension160
  - Fastener Tightening Specifications160
- Wheels, Tires, Wheel Alignment160
- Wheel Alignment Data161
  - Wheel Alignment Specified Values161
- Steering166
  - Fastener Tightening Specifications166
Brake System168
- General, Technical Data168
- Vehicle Data Sticker PR Number Allocation168
- Anti-Lock Brake System (ABS)173
  - Fastener Tightening Specifications173
- Mechanical Components173
- Hydraulic Components174
  - Fastener Tightening Specifications174
Body175
- Air Gap Body Dimensions175
- Body Exterior178
- Body Interior181
Heating, Ventilation and Air Conditioning183
- General, Technical Data183
Electrical System187
- Electrical Equipment187
DTC Chart190
- Engine Codes CBFA190
DTC Chart208
- Engine Codes CCTA208
DTC Chart223
- Engine Codes CJAA223
DTC Chart245
- Engine Codes CRZA245
DTC Chart260
- Engine Codes CBTA, CBUA260
